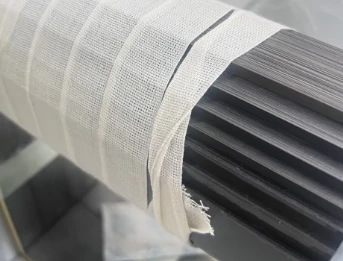

B27P100 Electrical Silicon Steel Laminated Core
Oct 22, 2025
Leave a message
Silicon steel laminations are thin, insulated sheets of a silicon-iron alloy used to construct the magnetic cores of electrical devices like motors, transformers, and generators. This lamination process, achieved by stacking many thin sheets together, is crucial for reducing energy loss due to eddy currents and hysteresis, thereby improving the efficiency and performance of the equipment.
Silicon Steel Laminated Core Key properties and functions
Reduced energy loss:
The silicon in the steel increases electrical resistance, and the thin, insulated laminations significantly reduce eddy currents, which are currents induced by a changing magnetic field that cause energy loss as heat. Hysteresis loss is also lowered.
Improved magnetic performance:
Silicon steel has enhanced magnetic properties compared to standard steel, allowing magnetic fields to penetrate it more easily and efficiently.
Increased efficiency:
By minimizing energy loss, these laminations lead to more efficient power generation and transfer in devices.
Robust construction:
They provide a durable and robust physical core for electrical components like stators and rotors.
Silicon Steel Laminated Core Application
Transformers:
Used in the magnetic cores to efficiently transfer electrical energy between windings.
Motors and Generators:
Essential for the stators and rotors in electric motors and generators, which are used in everything from household appliances to large-scale power generation like wind turbines.
Other electrical devices:
Found in a wide range of devices that require magnetic cores, including coils and other electromagnetic components.
Silicon Steel specification
We supply a wide spectrum of grades to cater to your every need: B30P120, B30P105, B30R100, 27QG120, 27QG100, 23Q110, 23QG100, 23QG095, 23RK090, 23RK085, 23QG085, 23RK085, 23QG085, 23RK080, 23RK075, B23R070, 20QG085, 20RK080, 20RK075, B20R070, B20R065,M0H,M1H,M2,M3,M4,M5. Each grade is engineered to provide superior performance and reliability.
| Type | Grade | Width | Max Core Loss@P1.7T/50Hz | Lamination Factor(%) | Min Induction@B800 |
| Common Type | 23Q110 | 35-1200mm | 1.10w/kg | 97.2 | 1.82T |
| 23Q120 | 1.20w/kg | 97.2 | 1.82T | ||
| 27Q120 | 1.20w/kg | 97.5 | 1.82T | ||
| 30G120 | 1.20w/kg | 98 | 1.82T | ||
| High Induction Type |
B20P085 | 35-1200mm | 0.85w/kg | 97 | 1.86T |
| B23P085 | 0.85w/kg | 97.2 | 1.88T | ||
| B23P090 | 0.90w/kg | 97.2 | 1.88T | ||
| B23P095 | 0.95w/kg | 97.2 | 1.88T | ||
| B23P100 | 1.00w/kg | 97.2 | 1.88T | ||
| B27P095 | 0.95w/kg | 97.5 | 1.89T | ||
| B27P100 | 1.00w/kg | 97.5 | 1.89T | ||
| B30P120 | 1.20w/kg | 98 | 1.89T | ||
| Domain Refined High Induction Type(Laser) |
B20R070 | 35-1200mm | 0.70w/kg | 97 | 1.86T |
| B23R085 | 0.85w/kg | 97.2 | 1.88T | ||
| B27RK085 | 0.85w/kg | 97.5 | 1.89T |
GNEE Featured Products
Gnee provides premium iron cores to the world. Our cores can be selected in a wide range of materials, shapes, applications, manufacturing techniques, etc., to meet customers' diverse demands. Explore our wide product range now~
Manufacturing Process
1. Raw Material Sourcing
2. Slitting
3. Punching
4. Laminating
5. Core Forming
6. testing
