11kV 1000 kVA Oil Immersed Transformer: Design Principles, Performance Testing & Application Scenarios
In the modern power distribution landscape, the efficiency and reliability of electrical infrastructure are paramount.
As a leading global manufacturer and supplier with over 18 years of industry expertise, GNEE specializes in delivering high-performance power solutions. Our flagship 11kV 1000 kVA oil immersed transformer is engineered to meet the most demanding international standards, ensuring seamless power conversion for industrial and commercial sectors.
Whether you are looking for robust construction or high thermal efficiency, our factory-direct solutions are designed to optimize your grid performance.

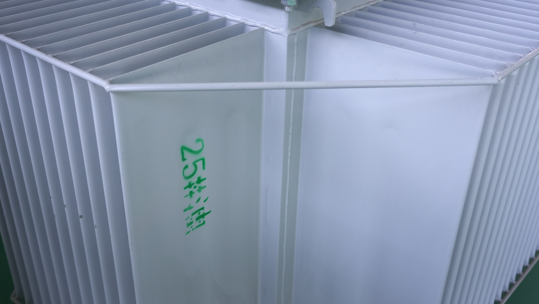

GNEE Factory Workshop showing the 1000kVA transformer
Understanding the Design Principles of the 11kV 1000 kVA Oil Immersed Transformer
The core philosophy behind the 11kV 1000 kVA oil immersed transformer design is the balance between electromagnetic efficiency and structural durability. At GNEE, we utilize high-permeability, grain-oriented silicon steel (CRGO) for the transformer core. This material significantly reduces hysteresis and eddy current losses, which are critical for maintaining high efficiency in a 1000 kVA rating.
The winding design is equally critical. We employ high-purity electrolytic copper or high-grade aluminum, depending on client requirements, to ensure low resistance and minimal heat generation. The insulation system uses high-density pressboard and high-quality transformer oil, which acts as both a dielectric medium and a coolant. Our engineers focus on the "ONAN" (Oil Natural Air Natural) cooling method, ensuring that the natural convection of oil effectively carries heat away from the internal components to the corrugated tank walls or radiators.
Advanced Structural Integrity and Tank Design
Beyond the electrical components, the physical housing of the 11kV 1000 kVA oil immersed transformer is built to withstand internal pressure and external environmental stresses. GNEE uses precision laser cutting and automatic welding for the corrugated tanks.
These tanks are designed to expand and contract with the oil temperature fluctuations, eliminating the need for a traditional conservator tank in hermetically sealed models, thereby reducing the risk of oil oxidation and moisture ingress.
Technical Specifications: 11kV 1000 kVA Oil Immersed Transformer Parameter Table
To help procurement managers and electrical engineers make informed decisions, we have outlined the standard technical parameters for our 11kV 1000 kVA units. Note that GNEE provides full customization to meet specific national standards like IEC, ANSI, or IEEE.
| Parameter | Specification Details |
| Rated Capacity | 1000 kVA |
| Primary Voltage | 11 kV (Customizable to 10kV, 10.5kV, 12kV) |
| Secondary Voltage | 0.4 kV / 0.415 kV / 0.433 kV |
| Frequency | 50 Hz / 60 Hz |
| Phase Count | Three Phase |
| Vector Group | Dyn11 / YNyn0 (or as requested) |
| Cooling Method | ONAN |
| Insulation Class | Class A |
| No-load Loss | Optimized to meet Tier 2/Ecodesign standards |
| Load Loss | Low-loss design (Standard compliant) |
| Short Circuit Impedance | 4.5% - 5.0% |
| Tapping Range | ±2x2.5% or ±5% (Off-circuit or On-load) |

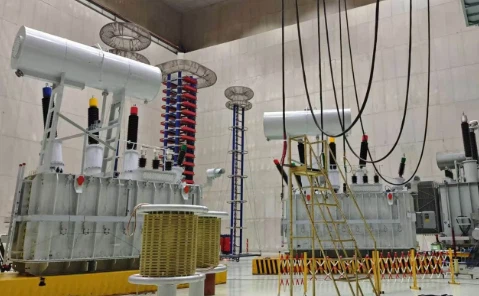

11kV 1000 kVA transformer is undergoing a dielectric impulse test
Performance Testing Standards for 11kV 1000 kVA Oil Immersed Transformers
Quality assurance is the cornerstone of GNEE's manufacturing process. Every 11kV 1000 kVA oil immersed transformer undergoes a series of rigorous performance tests before leaving our facility to ensure long-term operational safety.
Routine Tests: These include winding resistance measurements, voltage ratio tests, and check of phase displacement. We also perform no-load loss and current measurements to ensure the core is operating within efficiency limits.
Dielectric Tests: To guarantee the insulation can handle voltage surges, we conduct applied voltage tests and induced overvoltage tests. This ensures that the 11kV primary side can withstand transient spikes without breakdown.
Temperature Rise Test: This validates the effectiveness of the cooling system. We simulate full-load conditions to monitor the oil and winding temperature rise, ensuring they stay well below the limits defined by IEC 60076.
Leakage Test: The integrity of the tank is tested under pressure to ensure there are no microscopic gaps that could lead to oil leaks over the transformer's 20-30 year lifespan.
Common Application Scenarios for the 11kV 1000 kVA Unit
The versatility of the 11kV 1000 kVA oil immersed transformer makes it one of the most popular choices for medium-voltage distribution. Its capacity is ideal for balancing high load demands with a relatively compact footprint.
Industrial Complexes: Used to power manufacturing plants, textile mills, and assembly lines where stable voltage is required for heavy machinery.
Residential and Commercial Hubs: Ideal for providing step-down power to apartment complexes, shopping malls, and office buildings.
Renewable Energy Integration: Often used as a step-up or distribution unit in solar farms and wind power stations to connect localized energy generation to the 11kV grid.
Mining and Infrastructure: Its robust oil-cooled design allows it to operate reliably in dusty or harsh environments like mining sites and large-scale pumping stations.
Why GNEE is Your Trusted Manufacturing Partner
Choosing a manufacturer is about more than just the product; it is about technical support and reliability. GNEE's 11kV 1000 kVA oil immersed transformer is manufactured in ISO-certified facilities. We provide complete documentation, including test reports and installation manuals, and offer global shipping logistics to ensure your equipment arrives safely and on time.
Shipping and Packaging area showing a row of 11kV 1000 kVA transformers
Conclusion: Get a Quote for Your 11kV 1000 kVA Oil Immersed Transformer Today
Investing in a high-quality 11kV 1000 kVA oil immersed transformer is an investment in the stability of your power grid. By combining advanced design principles with stringent performance testing, GNEE ensures that every unit delivers maximum efficiency and minimal maintenance costs. Whether you are upgrading an existing substation or launching a new industrial project, our engineering team is ready to provide the custom solution you need.
Ready to optimize your power distribution?
Don't settle for sub-standard equipment. Contact GNEE today to receive a detailed technical proposal and a competitive factory-direct quote. Our experts are standing by to help you select the perfect 11kV 1000 kVA oil immersed transformer for your specific application.
[Click Here to Request an Instant Quote]
How much is 1000 kVA in kW?
Table of kVA to kW Conversions
| kVA | Power Factor (PF) | kW |
|---|---|---|
| 600.00 | 0.80 | 480.00 |
| 750.00 | 0.80 | 600.00 |
| 1000.00 | 0.80 | 800.00 |
| 2000.00 | 0.80 | 1600.00 |
How many amps is a 1000 kVA transformer?
(K= 1,000) The full value in VA, 75,000 divided by 1.732 = 43,302, which is then divided by the Voltage 208V = 208.2 Amperes.
How many amps is a 1000 kVA transformer good for?
A 1000 kVA transformer is generally utilized in the process of transforming a high-voltage power supply line into a low-voltage power supply line. It uses kilovolt-amperes as the units of measurement for the transformer's apparent power (kVA). It is capable of withstanding a voltage of 120 and an amperage of 8333.
What is the full load current of 1000 kVA?
For a 1000 kVA transformer at 415V, the full load current is ~1392A, with 75% load at 1044A. Use the rule of thumb: I ≈ kVA × 1.4 for quick estimates (1400A). Accurate calculations ensure efficient power management
What is the heat load of A 1000 kVA transformer?
Transformers convert electrical power with ~98% efficiency. The remaining 2% turns into heat. For a 1000 kVA unit, that's ~20 kW of heat constantly dumped into the room.
What is the 80% rule for transformers?
The 80% rule is a guideline that recommends operating a transformer at no more than 80% of its rated capacity under normal conditions. For example, if a power pole transformer is rated for 50 kVA, it should ideally carry no more than 40 kVA during continuous operation.
How do you prevent oil leakage in a 1000 kVA oil immersed transformer?
Oil leakage is the primary concern for any 1000 kVA power transformer user as it impacts both environment and safety. GNEE utilizes hermetically sealed corrugated tanks that accommodate oil expansion without external breathers. Every 11kV 1000 kVA transformer we manufacture undergoes a 24-hour rigorous pressure test. By using high-quality fluororubber gaskets and precision robotic welding, we ensure your 1000 kVA oil filled transformer remains leak-free for its entire 30-year service life.
What are the standard dimensions of an 11kV 1000 kVA transformer for tight spaces?
Space constraints in urban substations often make the installation of a 1000 kVA distribution transformer difficult. While standard dimensions exist, GNEE provides customized footprint designs. By optimizing the core-coil assembly, we can reduce the overall width or height of the 11kV 1000 kVA oil immersed transformer to fit your specific switchgear room or outdoor pad-mount location without compromising its cooling efficiency.
How can I justify the 1000 kVA transformer price through energy savings?
When comparing 1000 kVA transformer prices, it is essential to look at the Total Cost of Ownership (TCO). GNEE's 1000 kVA step down transformer utilizes high-permeability CRGO silicon steel, which significantly lowers no-load losses. Over a 10-year period, the energy saved by our high-efficiency 11kV 1000 kVA transformer often exceeds the initial purchase price difference of cheaper, low-quality alternatives.
Does the 1000 kVA oil immersed transformer require frequent maintenance?
Traditional transformers require constant oil filtering. However, GNEE's 11kV 1000 kVA oil immersed transformer is designed for "maintenance-free" operation. Because the oil is not exposed to air, it does not oxidize or absorb moisture. This means your 1000 kVA power transformer only requires basic external inspections and periodic temperature monitoring, significantly reducing your long-term operational labor costs.
How does a 1000 kVA transformer handle heavy industrial motor starting loads?
Industrial clients often worry about voltage drops when large motors start. Our 1000 kVA step down transformer is engineered with an optimized impedance (typically 4.5% to 5%) to balance short-circuit protection with stable voltage regulation. The robust winding structure of the 11kV 1000 kVA oil immersed transformer ensures it can handle temporary overloads and high-inrush currents common in manufacturing environments.
Is the noise level of a 1000 kVA transformer suitable for residential areas?
Noise pollution is a common complaint for large 1000 kVA distribution transformers. We address this at the design stage by tightening the core clamping and using vibration-damping materials. The result is a 11kV 1000 kVA transformer that operates at decibel levels well below NEMA and IEC standards, making it the perfect choice for hospitals, schools, and residential complexes.
How do you ensure the 1000 kVA transformer isn't damaged during international shipping?
Shipping a heavy 1000 kVA oil immersed transformer across oceans requires expert logistics. GNEE uses reinforced sea-worthy packaging, including steel-tied skids and moisture-proof vacuum sealing. We also provide impact recorders for our 11kV 1000 kVA transformer shipments so you can verify that the unit has not been subjected to excessive G-forces during transit.
