1000 kVA Oil Filled Transformer Load Capacity Calculation: How to Determine Safe Operating Load
In modern power systems, understanding 1000 kVA oil filled transformer load capacity calculation is essential for safe and efficient operation. As a professional transformer manufacturer, GNEE specializes in supplying high-quality oil immersed transformers with full technical support to help global clients optimize performance and avoid operational risks.
Transformer production workshop
A 1000 kVA oil filled transformer load capacity calculation involves more than just the rated capacity. It requires consideration of power factor, load conditions, cooling performance, and environmental factors. Incorrect calculations can lead to overheating, insulation failure, and costly downtime. This guide provides a clear and practical method to determine safe operating load.
What is 1000 kVA oil filled transformer load capacity calculation ?
The core of 1000 kVA oil filled transformer load capacity calculation is converting apparent power (kVA) into usable real power (kW).
P=S×PFP = S \times PFP=S×PF
Where:
- P = Real power (kW)
- S = 1000 kVA
- PF = Power factor
How do you calculate actual load capacity ?
- PF = 0.8 → 800 kW
- PF = 0.9 → 900 kW
This shows that transformer usable capacity depends directly on power factor.
How to calculate current in 1000 kVA oil filled transformer load capacity calculation ?
Current calculation is critical for cable sizing and protection system design.
- I=S3×VI = \frac{S}{\sqrt{3} \times V}I=3×VS
What is the current of a 1000 kVA transformer at 400V ?
- I ≈ 1443 A
This ensures proper system configuration and safe operation.
What is the safe operating range in 1000 kVA oil filled transformer load capacity calculation ?
A proper 1000 kVA oil filled transformer load capacity calculation must include safe loading limits:
- Continuous load: 70% – 85%
- Optimal efficiency: 75% – 85%
- Peak load: up to 100%
- Emergency load: 110% (short duration only)
Why is safe loading important ?
- Prevents overheating
- Extends transformer life
- Maintains insulation integrity
- Reduces maintenance costs
What factors affect 1000 kVA oil filled transformer load capacity calculation ?
How does ambient temperature affect transformer load ?
High temperatures reduce cooling efficiency and allowable load.
How does power factor impact load capacity ?
Lower power factor reduces usable kW output.
How does load type influence calculation ?
- Linear loads → stable
- Inductive loads → lower PF
- Non-linear loads → harmonics and extra losses
How to apply derating in 1000 kVA oil filled transformer load capacity calculation ?
In real-world applications, derating is necessary to ensure safety.
What is a practical derating example ?
- 1000 kVA × 0.85 PF = 850 kW
- Apply 80% loading → 680 kW safe load
When should derating be applied ?
- High ambient temperature
- Poor ventilation
- High altitude
- Harmonic-rich environments
What are the technical parameters of 1000 kVA oil filled transformer ?
| Parameter | Value |
|---|---|
| Rated Capacity | 1000 kVA |
| Primary Voltage | 6kV / 10kV / 11kV / 33kV |
| Secondary Voltage | 0.4kV |
| Frequency | 50Hz / 60Hz |
| Cooling Method | ONAN / ONAF |
| Vector Group | Dyn11 / Yyn0 |
| Impedance | 4% – 6% |
| Efficiency | ≥98% |
| Insulation Class | Class A |
| Standard | IEC / ANSI / GB |
Common Mistakes in 1000 kVA Oil Filled Transformer Load Capacity Calculation
Ignoring Power Factor
Many users assume 1000 kVA equals 1000 kW, which leads to overload.
Running at Full Load Continuously
This accelerates insulation aging and reduces transformer life.
Poor Installation Conditions
Insufficient ventilation can significantly reduce load capacity.
Lack of Monitoring
Without load monitoring systems, overload risks increase.
Where are 1000 kVA oil filled transformers used?
GNEE transformers are widely applied in:
- Industrial manufacturing
- Mining operations
- Commercial buildings
- Renewable energy systems
Accurate 1000 kVA oil filled transformer load capacity calculation ensures stable operation across all these industries.

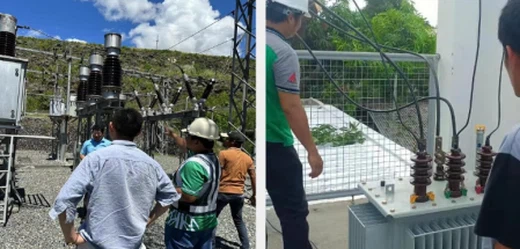

Installed transformer in industrial site
FAQ
Can I fully load a 1000 kVA oil filled transformer?
It is possible, but continuous operation at 100% load is not recommended for long-term reliability.
How can I increase transformer usable capacity?
Improving power factor using capacitors can increase effective kW output.
What happens if I overload the 1000kva transformer?
Overloading leads to overheating, insulation damage, and potential failure.
Is 1000 kVA equal to 1000 kW?
No, actual kW depends on power factor.
Conclusion – 1000 kVA Oil Filled Transformer Load Capacity Calculation

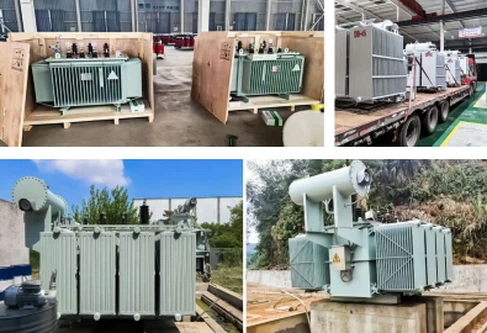

Transformer shipment and packaging
Accurate 1000 kVA oil filled transformer load capacity calculation is the key to ensuring safe operation, high efficiency, and long service life. By considering power factor, environmental conditions, and proper loading practices, you can maximize transformer performance and avoid costly failures.
