The Ultimate Guide to the 1000 kVA Oil Immersed Transformer

The 1000 kVA oil immersed transformer is one of the most widely used power distribution solutions for industrial, commercial, and utility applications. Known for its high efficiency, durability, and excellent cooling performance, it plays a critical role in stepping down medium voltage to usable low voltage levels.



This guide will help you understand everything from working principles to selection criteria-ensuring you choose the right transformer for your project.





A 1000 kVA oil immersed transformer is an electrical device that transfers electrical energy between circuits through electromagnetic induction. It uses insulating oil for both cooling and insulation.



• Rated Capacity: 1000 kVA
• Function: Step-down or step-up voltage
• Cooling Method: Oil-based (typically ONAN)
• Application: Medium-voltage power distribution





The transformer operates based on electromagnetic induction:

• When alternating current flows through the primary winding, it creates a magnetic field.
• This magnetic field induces voltage in the secondary winding.
• The oil acts as an insulator and dissipates heat generated during operation.
• This simple yet efficient mechanism ensures reliable and continuous power supply.





Parameter	Typical Value
Rated Capacity	1000 kVA
Primary Voltage	6 kV / 10 kV / 11 kV / 33 kV
Secondary Voltage	0.4 kV
Frequency	50 Hz / 60 Hz
Cooling Method	ONAN
Vector Group	Dyn11 / Yyn0
Impedance	4% – 6%
Standards	IEC / ANSI / GB





• High Efficiency: Low no-load and load losses
• Excellent Cooling: Oil ensures stable temperature control
• Long Lifespan: Typically 20–30 years or more
• High Overload Capacity: Suitable for heavy-duty applications
• Cost-Effective: Lower upfront cost compared to dry-type transformers





These transformers are widely used in:

• Industrial plants and factories
• Commercial buildings and malls
• Power distribution networks
• Renewable energy projects (solar & wind)
• Mining and heavy industries





When selecting a transformer, consider the following:

• Voltage Requirements: Match primary and secondary voltage
• Load Demand: Ensure 1000 kVA meets your power needs
• Installation Environment: Indoor or outdoor conditions
• Cooling Requirements: ONAN or forced cooling options
• Standards Compliance: IEC, ANSI, or local standards
• Customization Needs: Tap changer, vector group, impedance

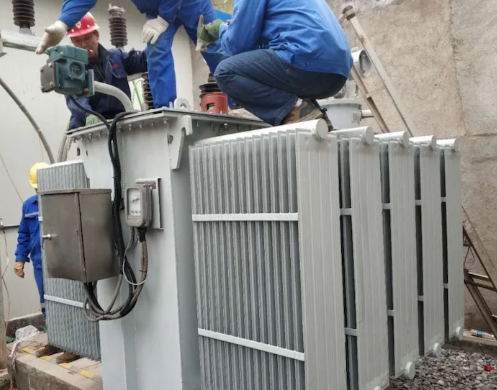

Installation Guidelines

• Ensure a stable and level foundation
• Provide sufficient ventilation space
• Maintain proper grounding
• Check oil level before commissioning
• Verify all electrical connections

Maintenance Tips

• Regularly inspect oil quality and level
• Monitor temperature and load conditions
• Perform routine electrical testing
• Check for leaks or corrosion





Overheating
Cause: Overload or poor ventilation
Solution: Reduce load and improve cooling conditions



Oil Leakage
Cause: Seal aging or tank damage
Solution: Replace seals and repair tank



Insulation Failure
Cause: Moisture or aging oil
Solution: Oil filtration or replacement





What is the efficiency of a 1000 kVA oil immersed transformer?
Efficiency typically exceeds 98% under normal operating conditions.



How long does a 1000 kVA transformer last?
With proper maintenance, it can last 20–30 years or more.



Is it suitable for outdoor installation?
Yes, oil immersed transformers are ideal for outdoor environments.



What is the difference between oil immersed and dry type transformers?
Oil immersed transformers offer better cooling and overload capacity, while dry types are safer for indoor use.



Can the transformer be customized?
Yes, voltage, impedance, and configuration can be tailored.



What is the load capacity of a 1000 kVA transformer?

For a 1000kVA transformer, the maximum load depends on various factors such as the voltage rating, winding configuration, cooling system, and ambient temperature. Typically, a 1000kVA transformer can handle a maximum load of around 800-850kW



How many amps is a 1000 kVA transformer good for?

A 1000 kVA transformer is generally utilized in the process of transforming a high-voltage power supply line into a low-voltage power supply line. It uses kilovolt-amperes as the units of measurement for the transformer's apparent power (kVA). It is capable of withstanding a voltage of 120 and an amperage of 8333.



What is the impedance of a 1000 kVA transformer?

Pad Mounted Transformers: The impedance of 1000 kVA pad mounted transformers is generally in the range of 5% to 6%, balancing efficiency and fault tolerance for outdoor and commercial use.



How many kW is a 1000 kVA transformer?

So, a 1000 kVA transformer can deliver approximately 800 kW of real power at a power factor of 0.8.



What is the heat load of a 1000 kVA transformer?

Transformers convert electrical power with ~98% efficiency. The remaining 2% turns into heat. For a 1000 kVA unit, that's ~20 kW of heat constantly dumped into the room.
