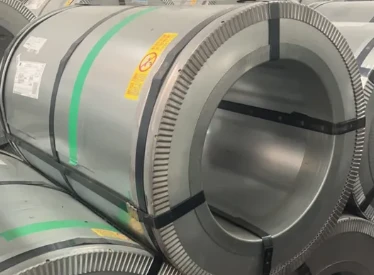

Grain Oriented Silicon Electrical Steel Mother Coil for Transformers
Sep 28, 2025
Leave a message
Grain Oriented Silicon Electrical Steel Mother Coil Product Description
Cold-Rolled Grain-Oriented Silicon Steel Mother Coil is the core base material for manufacturing transformer iron cores. Through specialized rolling and heat treatment processes, the material develops a Goss texture alignment, achieving superior magnetic properties.
silicon steel includes oriented magnetic steel (GO) and non-oriented magnetic steel (NO).
GO steel has excellent properties such as high magnetism and low loss. It is mainly used for transformers, transformers, contributing greatly to improving the efficiency of machinery. NO steel is a silicon iron alloy with very low carbon content, and its grains are unevenly oriented in the steel plate after deformation and annealing. With low loss, NO steel is widely used in the field of making motor cores, generators…
Grain Oriented Silicon Electrical Steel Key Characteristics
1.Grain-Oriented Structure:
Unlike non-oriented silicon steel, oriented silicon electrical steel has a specific crystal orientation where the magnetic easy direction (typically the <001> direction) is aligned with the rolling direction of the steel.
2.High Magnetic Permeability:
This alignment results in superior magnetic properties, making it easier to magnetize the material in a specific direction.
3.Low Core Loss:
The optimized grain structure significantly reduces energy losses, particularly eddy current and hysteresis losses, leading to higher efficiency in electrical devices.
4.Silicon Content:
Like other electrical steels, it contains a controlled amount of silicon (typically up to 3.2% by mass) to increase electrical resistivity and reduce losses.
Grain Oriented Silicon Electrical Steel Applications
- 500kV+ Ultra-High-Voltage Transformers
- Renewable Energy Step-Up Transformers
- High-Speed Rail Traction Transformers
- Data Center Dry-Type Transformers
Silicon Electrical Steel specifications
| Type | Grade | Width | Max Core Loss@P1.7T/50Hz | Lamination Factor(%) | Min Induction@B800 |
| Common Type | 23Q110 | 900-1200mm | 1.10w/kg | 97.2 | 1.82T |
| 23Q120 | 1.20w/kg | 97.2 | 1.82T | ||
| 27Q120 | 1.20w/kg | 97.5 | 1.82T | ||
| 30G120 | 1.20w/kg | 98 | 1.82T | ||
| High Induction Type |
B20P085 | 900-1200mm | 0.85w/kg | 97 | 1.86T |
| B23P085 | 0.85w/kg | 97.2 | 1.88T | ||
| B23P090 | 0.90w/kg | 97.2 | 1.88T | ||
| B23P095 | 0.95w/kg | 97.2 | 1.88T | ||
| B23P100 | 1.00w/kg | 97.2 | 1.88T | ||
| B27P095 | 0.95w/kg | 97.5 | 1.89T | ||
| B27P100 | 1.00w/kg | 97.5 | 1.89T | ||
| B30P120 | 1.20w/kg | 98 | 1.89T | ||
| Domain Refined High Induction Type(Laser) |
B20R065 | 900-1200mm | 0.65w/kg | 97 | 1.86T |
| B23RK085 | 0.85w/kg | 97.2 | 1.88T | ||
| B27RK085 | 0.85w/kg | 97.5 | 1.89T |
GNEE Featured Products
Gnee provides premium iron cores to the world. Our cores can be selected in a wide range of materials, shapes, applications, manufacturing techniques, etc., to meet customers' diverse demands. Explore our wide product range now~
Manufacturing Process
1. Raw Material Sourcing
2. Slitting
3. Punching
4. Laminating
5. Core Forming
6. testing
