1000 kVA Dry Type Transformer vs Oil Immersed: Which Is Better for Your Project?
In modern power distribution systems, choosing between a 1000 kVA Dry Type Transformer vs Oil Immersed transformer is a critical decision that directly impacts safety, efficiency, and long-term operating costs.
As a professional transformer manufacturer, GNEE Electric has over 15 years of experience in supplying high-quality transformers for global industrial, commercial, and infrastructure projects. We provide OEM & ODM services, strict quality control, and fast delivery to ensure your project success.
Whether you are planning a factory installation, commercial building, or renewable energy project, understanding the differences between dry type and oil immersed transformers is essential to making the right investment.
What Is a 1000 kVA Dry Type Transformer vs Oil Immersed Transformer?
A 1000 kVA Dry Type Transformer vs Oil Immersed comparison begins with understanding their fundamental design differences.
Dry Type Transformer Overview (1000 kVA Dry Type Transformer)
Dry type transformers use air as the cooling medium instead of liquid insulation. The windings are typically cast in resin (cast resin transformer) or vacuum pressure impregnated (VPI).
Key Features:
- No oil → lower fire risk
- Eco-friendly and minimal maintenance
- Suitable for indoor installations
Oil Immersed Transformer Overview (1000 kVA Oil Immersed Transformer)
Oil immersed transformers use insulating oil for cooling and insulation. These are widely used in outdoor and high-load applications.
Key Features:
- Excellent heat dissipation
- Higher overload capacity
- Lower initial cost

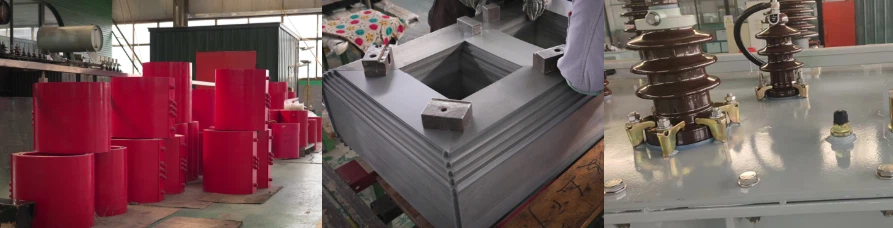

Factory production line of transformers
Key Differences Between 1000 kVA Dry Type Transformer vs Oil Immersed
Understanding the differences helps you select the most suitable transformer for your application.
Cooling Method (1000 kVA Dry Type Transformer vs Oil Immersed Cooling)
Dry Type: Air-cooled (AN/AF cooling)
Oil Immersed: Oil natural/forced cooling (ONAN/ONAF)
Oil immersed transformers generally offer better thermal performance under heavy loads.
Safety and Fire Risk (1000 kVA Dry Type Transformer vs Oil Immersed Safety)
Dry Type: Flame-retardant, self-extinguishing
Oil Immersed: Risk of oil leakage and fire
Dry type transformers are preferred in hospitals, malls, and high-rise buildings.
Installation Environment (1000 kVA Dry Type Transformer vs Oil Immersed Application)
Dry Type: Indoor, confined spaces
Oil Immersed: Outdoor, industrial environments
Maintenance Requirements (1000 kVA Dry Type Transformer vs Oil Immersed Maintenance)
Dry Type: Minimal maintenance
Oil Immersed: Requires oil testing and replacement
Advantages of 1000 kVA Dry Type Transformer vs Oil Immersed
Advantages of 1000 kVA Dry Type Transformer
- Safer for indoor use
- Environmentally friendly
- Low noise operation
- Reduced maintenance costs
Advantages of 1000 kVA Oil Immersed Transformer
- Higher efficiency under heavy load
- Better cooling performance
- Lower purchase cost
- Longer service life in harsh environments

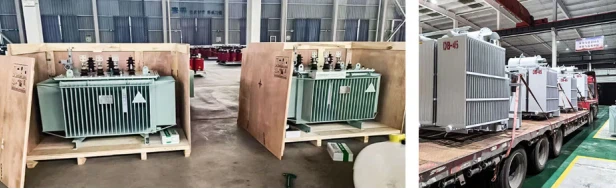

Transformer shipping/loading images
Applications of 1000 kVA Dry Type Transformer vs Oil Immersed
Dry Type Transformer Applications
Commercial buildings
Hospitals
Airports
Data centers
Oil Immersed Transformer Applications
Power plants
Mining operations
Steel factories
Outdoor substations
1000 kVA Dry Type Transformer vs Oil Immersed Parameter Table
| Parameter | Dry Type Transformer | Oil Immersed Transformer |
|---|---|---|
| Rated Capacity | 1000 kVA | 1000 kVA |
| Cooling Method | Air (AN/AF) | Oil (ONAN/ONAF) |
| Insulation | Epoxy Resin / VPI | Mineral Oil |
| Installation | Indoor | Outdoor / Indoor |
| Fire Risk | Very Low | Moderate |
| Maintenance | Low | Medium |
| Efficiency | Medium | High |
| Noise Level | Low | Moderate |
| Initial Cost | Higher | Lower |
| Environmental Impact | Eco-friendly | Oil disposal required |
| Service Life | 20–25 years | 25–30 years |
How to Choose Between 1000 kVA Dry Type Transformer vs Oil Immersed
Selecting between a 1000 kVA Dry Type Transformer vs Oil Immersed depends on several project-specific factors:
Choose Dry Type Transformer If:
Installation is indoors
Fire safety is a priority
Limited maintenance access
Choose Oil Immersed Transformer If:
Installation is outdoors
High load and efficiency are required
Budget constraints exist
At GNEE Electric, we provide customized solutions based on your voltage, frequency, climate conditions, and installation environment.
Why Choose GNEE as Your Transformer Manufacturer
With extensive export experience and strict quality control, GNEE Electric ensures:
- ISO-certified manufacturing process
- Advanced production equipment
- Full test reports before delivery
- Global project experience
- Competitive pricing with reliable quality
We have successfully supplied transformers to Southeast Asia, the Middle East, Africa, and Europe.
Conclusion: 1000 kVA Dry Type Transformer vs Oil Immersed – Make the Right Choice
When comparing a 1000 kVA Dry Type Transformer vs Oil Immersed, there is no one-size-fits-all answer. Dry type transformers offer superior safety and environmental benefits, while oil immersed transformers provide higher efficiency and cost advantages.
