Step-Up vs. Step-Down Transformer Prices: Detailed Comparison

In every electrical network - from massive generating stations to the grid feeding your factory or home - step-up and step-down transformers play opposite but equally vital roles. Understanding the distinction between them is crucial for engineers, procurement professionals, and maintenance teams when selecting the right transformer for a given application. Choosing incorrectly can lead to inefficient operation, overheating, voltage instability, and increased lifecycle costs.

In short: a step-up transformer increases voltage from a lower to a higher level (for efficient power transmission), while a step-down transformer decreases voltage from a higher to a lower level (for safe distribution and end-user use).

1. Core Operating Principle

Both transformer types work on Faraday's Law of Electromagnetic Induction, transferring power between circuits through electromagnetic coupling - without any physical electrical connection.

However, the ratio of turns between the primary and secondary windings determines whether it steps voltage up or down:

Type	Turns Ratio (N₂/N₁)	Function	Example Voltage Conversion
Step-Up	> 1	Increases voltage	11 kV → 132 kV
Step-Down	< 1	Decreases voltage	132 kV → 11 kV

Step-Up Transformers raise voltage levels to reduce current and transmission losses over long distances.
Step-Down Transformers lower voltage to safe levels for industrial and domestic use.

2. Typical Applications in the Power Grid

Understanding where each transformer type is deployed clarifies their function within the generation–transmission–distribution system.

Stage of Power System	Transformer Type	Typical Voltage Conversion	Main Purpose
Generation	Step-Up	11 kV → 132/220/400 kV	Reduce transmission current and losses
Transmission	Step-Down	400 kV → 132/66 kV	Distribute power regionally
Distribution	Step-Down	33/11 kV → 415/230 V	Supply industrial and consumer loads

In short, step-up transformers move energy into the grid, while step-down transformers deliver it out of the grid to end users.

3. Construction and Design Differences

While the electromagnetic principles are the same, construction varies slightly due to the voltage and insulation requirements.

Component	Step-Up Transformer	Step-Down Transformer
Primary Winding	Low-voltage, high-current	High-voltage, low-current
Secondary Winding	High-voltage, low-current	Low-voltage, high-current
Insulation	Heavier on secondary side	Heavier on primary side
Core Design	Optimized for high magnetic flux	Optimized for thermal management
Applications	Power stations, solar farms, wind plants	Distribution substations, factories, buildings

A step-up transformer must handle high induced voltage and insulation stress, whereas a step-down transformer focuses on high load currents and cooling efficiency.

4. Efficiency and Energy Losses

Both types achieve high efficiency (typically 98–99.5%) when designed and maintained according to IEC 60076 standards.

However, efficiency differs slightly depending on the load profile and operating voltage:

Transformer Type	Typical Efficiency Range	Dominant Loss Type
Step-Up	99.0–99.6%	Core losses (constant)
Step-Down	98.5–99.2%	Copper losses (load-dependent)

Step-up units operate mostly at constant load (generation), while step-down units experience load variation, which slightly increases losses.

5. Cost and Material Factors

Step-up transformers are typically larger, heavier, and more expensive, owing to higher insulation requirements and voltage ratings.

Capacity	Step-Up (Approx. Cost USD)	Step-Down (Approx. Cost USD)
1 MVA, 11/66 kV	$35,000 – $50,000	$25,000 – $35,000
10 MVA, 11/132 kV	$90,000 – $120,000	$75,000 – $100,000
40 MVA, 33/220 kV	$250,000 – $400,000	$220,000 – $320,000

Material usage (especially copper, core steel, and insulation) strongly affects cost.

6. Maintenance and Reliability Factors

Both transformer types require similar maintenance routines - oil testing, DGA (Dissolved Gas Analysis), insulation resistance, and thermal monitoring.

However, their operational risks differ:

Step-Up Transformers: prone to insulation breakdown due to high voltage stress.

Step-Down Transformers: more likely to face overheating or overloading from variable demand.

Maintenance Task	Recommended Interval	Purpose
Oil BDV & Moisture Test	Every 12 months	Check dielectric strength
DGA Analysis	Every 6–12 months	Detect internal faults
Thermographic Scan	Every 6 months	Identify hot spots
Tap Changer Servicing	Every 2–3 years	Ensure voltage stability

7. Emerging Technologies and Efficiency Standards

Under new IEC 60076-20 efficiency classifications, both transformer types are being upgraded with:

Amorphous metal cores to reduce no-load losses.

High-temperature ester oils for better cooling.

Digital monitoring sensors (IoT-based for predictive maintenance).

Eco-designs aligning with EU Eco Directive 548/2014.

These improvements help utilities meet modern energy efficiency and environmental compliance targets, regardless of transformer type.

8. Real-World Example: Solar Power Station

A solar farm with 33 kV grid interconnection typically uses both types:

A step-up transformer converts inverter output (690 V) to 33 kV for grid export.

A step-down transformer at the local substation reduces grid voltage (33 kV) to 415 V for internal equipment.

Thus, both types work together in complementary roles within the same power system.

9. Summary Table: Step-Up vs. Step-Down Transformers

Aspect	Step-Up Transformer	Step-Down Transformer
Function	Increases voltage	Decreases voltage
Voltage Flow	Low → High	High → Low
Application	Generation and transmission	Distribution and end use
Primary Side	Low voltage	High voltage
Secondary Side	High voltage	Low voltage
Efficiency	Slightly higher at constant load	Slightly lower due to load variation
Cost	Higher (more insulation)	Lower
Maintenance Focus	Insulation health	Load management

How Do Design and Application Affect Power Transformer Pricing?

In the transformer industry, pricing is never arbitrary - it directly reflects the design complexity, intended application, material selection, and operational environment. Many buyers wonder why two transformers with similar kVA ratings can differ so much in price. The answer lies in the engineering and customization hidden beneath the surface.

A transformer is not a simple off-the-shelf product; it's a highly customized electrical system designed for specific performance, safety, and environmental requirements.

Failing to match design to application can result in overheating, energy loss, or premature failure - all of which cost more in the long run.

In short: the design configuration and application environment are the primary factors that determine transformer cost - influencing core material, insulation level, cooling method, and efficiency class.

1. Design Configuration and Its Cost Impact

The design configuration - including voltage class, phase type, vector group, and cooling system - has the most direct impact on pricing.

Design Parameter	Variants	Effect on Cost	Reason
Voltage Class	11 kV, 33 kV, 132 kV, 220 kV	↑ with voltage	Higher insulation and clearances needed
Cooling Type	ONAN, ONAF, OFAF, OFWF	↑ with complexity	Fans and pumps add components
Core Type	CRGO, Amorphous, Cold-Rolled Silicon Steel	↑ with core grade	Better magnetic efficiency costs more
Phase Type	Single-phase vs. Three-phase	↑ for 3-phase	Larger core and windings
Frequency	50 Hz or 60 Hz	Neutral	Minimal impact unless exported

For example, a 10 MVA ONAN transformer at 33/11 kV might cost $90,000–$110,000, while the same unit with ONAF cooling (fans added) can reach $120,000–$135,000, due to increased copper, steel, and accessories.

2. Application Environment and Installation Site

Transformers designed for different applications or site conditions require varying mechanical and thermal properties, directly influencing cost.

Application Type	Typical Environment	Design Features	Cost Impact
Power Generation	Power plant substation	High-voltage insulation, step-up function	High
Distribution Utility	Outdoor substation	Standard insulation, corrosion protection	Medium
Industrial	Factory or plant	Robust mechanical design, custom voltage	Medium–High
Renewable Energy	Solar or wind farm	Compact footprint, high harmonic tolerance	High
Marine/Mining	Coastal or underground	Anti-corrosive coating, vibration resistance	High

A mining-site transformer, for instance, may include special enclosures, stainless steel tanks, and enhanced oil seals, adding 10–20% to the base price compared with a standard substation model.

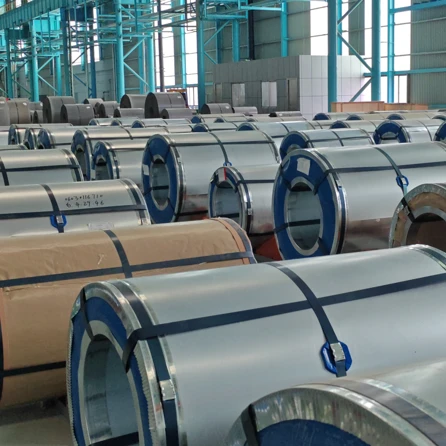

3. Efficiency and Energy Loss Class

Energy efficiency is a key design factor under IEC 60076-20 and EU Eco Design Regulation 548/2014.
Higher efficiency transformers reduce lifecycle losses but increase upfront cost due to superior materials.

Efficiency Class	Core Material	No-Load Loss (kW)	Typical Cost Increase
Tier 1	CRGO Core	9	Base
Tier 2	High-Grade CRGO	7	+10–12%
Tier 3 (Eco)	Amorphous Core	5	+18–25%

While Tier 3 transformers cost more initially, they can save $4,000–$8,000 annually in energy loss per MVA rating - yielding long-term ROI within 3–5 years.

4. Insulation and Cooling System Design

The insulation system (solid, oil, or gas-based) and cooling class (ONAN, ONAF, OFAF, OFWF) play major roles in determining both performance and cost.

Cooling Class	System Description	Relative Cost	Typical Use Case
ONAN	Oil Natural Air Natural	★	Distribution transformers
ONAF	Oil Natural Air Forced	★★	Industrial & medium power
OFAF	Oil Forced Air Forced	★★★	High power or high ambient temperature
OFWF	Oil Forced Water Forced	★★★★	Compact or marine applications

For example, an OFAF-cooled transformer may require external heat exchangers and pumps, increasing cost by 20–30% compared to an ONAN type.

5. Material Quality and Origin

Material selection - especially copper vs. aluminum windings, core steel grade, and insulating oil type - strongly affects both cost and performance.

Material Option	Performance Impact	Relative Cost
Copper Windings	Lower resistance, better thermal performance	High
Aluminum Windings	Lighter, lower cost	20–30% lower
CRGO Steel Core	Standard grade	Base
Amorphous Core	Low loss, eco-efficient	+15–25%
Mineral Oil	Standard dielectric	Base
Natural Ester Oil	Fire-safe, biodegradable	+10–15%

For example, switching from copper to aluminum windings in a 5 MVA transformer can save $7,000–$12,000, though at the cost of slightly higher losses and reduced lifespan.

6. Standards and Certification Requirements

Compliance with international standards (IEC, IEEE, ANSI) and third-party certifications (e.g., KEMA, CESI, or UL) adds engineering, testing, and documentation costs.

Standard / Certification	Impact on Cost	Reason
IEC 60076	Base standard	Reference design
IEEE C57	+5–8%	U.S. design conformity
KEMA/CE Certification	+10–15%	Third-party type testing
Seismic / Explosion Proof	+10–20%	Special mechanical design

Projects in regulated industries - such as utility grids, offshore installations, or renewable farms - almost always require third-party test verification, which raises total cost but guarantees reliability and compliance.

7. Custom Design, Accessories, and Monitoring Systems

Customization is often necessary for integration with digital systems, SCADA networks, or non-standard installation conditions.

Optional features that affect cost include:

Tap changers (manual vs. on-load)

Temperature sensors and RTDs

Online DGA (Dissolved Gas Analysis) monitors

Buchholz and pressure relief relays

Remote control interfaces (IoT-ready)

Adding such smart monitoring systems may increase upfront cost by 10–18%, but enables predictive maintenance that reduces unplanned outages and extends service life.

8. Application-Specific Examples

a) Utility Transmission Transformer (132/33 kV, 40 MVA)

Cooling: OFAF

Insulation: High-grade oil, reinforced paper

Certification: KEMA type tested

Cost: $380,000–$450,000

b) Industrial Distribution Transformer (33/11 kV, 10 MVA)

Cooling: ONAN

Copper windings, CRGO core

Standard IEC design

Cost: $95,000–$120,000

c) Solar Step-Up Transformer (690 V/33 kV, 5 MVA)

High harmonic design, low-loss amorphous core

Ester oil for eco safety

Digital monitoring

Cost: $130,000–$150,000

These examples demonstrate how application and environment dictate both design and pricing.

9. Total Cost of Ownership (TCO) Perspective

The lowest purchase price does not always equal the lowest lifecycle cost.
Over 30 years, energy losses can exceed 3–5 times the purchase cost of a transformer.

Transformer Type	Initial Price (USD)	Annual Loss Cost (USD)	30-Year Lifecycle Cost (USD)
Standard ONAN Copper	$100,000	$5,000	$250,000
High-Efficiency Tier 2	$115,000	$3,000	$205,000
Amorphous Core Eco	$130,000	$2,000	$190,000

Thus, investing in a better-designed transformer for the intended application reduces total ownership costs and enhances long-term reliability.

Which Transformer Type Requires More Expensive Materials or Components?

When comparing oil-immersed and dry-type power transformers, one of the most important cost-related questions is:
"Which type uses more expensive materials or components?"

The answer depends on the design, insulation system, and application environment - but in general, dry-type transformers require more costly materials and specialized components per unit of capacity.

Let's examine why.

1. Material Composition Differences

Component	Oil-Immersed Transformer	Dry-Type Transformer	Relative Cost Impact
Core	CRGO or Amorphous Steel	CRGO or Amorphous Steel	≈ Equal
Windings	Copper or Aluminum (immersed in oil)	High-grade Copper (encapsulated or cast)	↑ Higher (Dry type)
Insulation System	Mineral Oil or Ester Oil	Epoxy Resin or Nomex Paper	↑ Higher (Dry type)
Cooling System	Oil circulation (ONAN/ONAF)	Air natural or forced ventilation	↓ Lower (Oil type)
Tank / Enclosure	Steel tank with oil seals	Enclosed cast resin housing	↑ Higher (Dry type)
Protection Devices	Buchholz, pressure relief, oil level gauges	Temperature sensors, thermal relays	≈ Equal

Summary:
Dry-type transformers eliminate oil but must compensate with high-grade resin insulation, copper conductors, and heat-resistant materials, which raise material costs by 15–25% compared with equivalent oil-immersed models.

2. Insulation System Cost and Complexity

Oil-Immersed Transformer:

Uses transformer oil (mineral or ester-based) as both coolant and dielectric medium.

The oil provides self-healing insulation and easy heat dissipation.

Insulating materials are simple - kraft paper, pressboard, and mineral oil - all relatively low-cost.

Dry-Type Transformer:

Uses solid insulation such as epoxy resin, silicone resin, or Nomex paper, designed to withstand high thermal stress.

The resin casting or vacuum pressure impregnation (VPI) process requires specialized equipment and controlled curing, increasing manufacturing cost.

💡 Result:
The insulation system alone in a dry-type transformer can add 10–20% more to total material cost than that of an oil-immersed unit of similar rating.

3. Winding and Conductor Material

Dry-type transformers require thicker copper conductors to handle heat buildup since air cooling is less efficient than oil.

Oil-immersed transformers benefit from better cooling and can use smaller conductor cross-sections.

Transformer Type	Typical Winding Material	Relative Copper Usage	Cost Effect
Oil-Immersed	Copper or Aluminum	100% baseline	-
Dry-Type	High-purity Copper only	110–130%	↑ +10–15% material cost

Because aluminum is rarely used in dry-type designs (due to poor mechanical rigidity and resin adhesion), copper - a more expensive metal - dominates.

4. Enclosure and Mechanical Design

Oil-immersed transformers are enclosed in a sealed steel tank filled with oil, which naturally provides cooling and protection.

Dry-type transformers need fire-resistant, dust-proof, and moisture-proof enclosures, especially in outdoor or industrial applications.

Typical dry-type enclosures include:

IP23/IP44 rated housings for dust and splash protection

Stainless steel or aluminum frames for corrosion resistance

Ventilation ducts for forced air cooling

💡 These enclosures add 8–12% to the cost compared to a standard oil tank.

5. Cooling System Requirements

Cooling Method	Oil-Immersed Type	Dry-Type	Cost Comparison
Natural Cooling (ONAN / AN)	Oil circulation, efficient	Air natural, less efficient	↓ Lower for oil type
Forced Cooling (ONAF / AF)	Fans + radiators	Fans + air ducts	≈ Similar
Advanced Cooling	Oil pumps, heat exchangers	High-speed blowers	↑ Higher for dry type (in large ratings)

Because oil has higher heat transfer efficiency, oil-immersed units require fewer external cooling accessories, saving cost.

6. Manufacturing and Processing Costs

Dry-type transformers demand high-precision vacuum processes and resin casting equipment, which are more expensive to operate and maintain.

Oil-immersed transformers, in contrast, use standard tank welding, oil filling, and drying - more established and less costly manufacturing processes.

Manufacturing Stage	Oil-Immersed	Dry-Type	Cost Impact
Core Assembly	Standard	Standard	Equal
Coil Manufacturing	Oil-immersed impregnation	Resin casting / VPI	↑ Higher (Dry type)
Tanking	Simple steel tank	Fire-resistant enclosure	↑ Higher (Dry type)
Testing	Standard IEC tests	Thermal & partial discharge tests	↑ Higher (Dry type)

On average, dry-type transformer manufacturing costs are 20–30% higher than oil-immersed models of the same capacity.

7. When Oil-Immersed Becomes More Expensive

While dry types are usually costlier in small and medium capacities, oil-immersed transformers become more expensive at very high ratings (above 30–50 MVA or 220 kV), because:

Larger oil volume and tank size

Heavy-duty radiators and pumps

Stringent testing and certification (e.g., type test at 220 kV)

So:

Below 5 MVA → Dry-type more expensive

5–30 MVA → Oil-immersed more economical

Above 50 MVA → Oil-immersed cost rises sharply due to scale

8. Example Cost Comparison

Transformer Type	Capacity	Voltage Class	Approx. Cost (USD)	Relative Cost Index
Oil-Immersed (ONAN)	2000 kVA	33/0.4 kV	$25,000 – $30,000	1.00
Dry-Type (VPI)	2000 kVA	33/0.4 kV	$35,000 – $40,000	1.30
Oil-Immersed (ONAF)	10 MVA	33/11 kV	$95,000 – $120,000	1.00
Dry-Type (Cast Resin)	10 MVA	33/11 kV	$130,000 – $150,000	1.25

👉 Result: Dry-type transformers generally cost 25–35% more than oil-immersed ones of similar capacity, due to material and manufacturing differences.

How Do Efficiency and Cooling Systems Impact the Overall Cost of Power Transformers?

When purchasing or designing a power transformer, two of the most important factors influencing both initial and long-term costs are efficiency and cooling system design. While most buyers focus on upfront price, real-world operational economics depend far more on how efficiently a transformer converts energy and how well it manages heat. A poor efficiency rating or an undersized cooling system can lead to excessive energy losses, higher lifecycle costs, and shorter service life - a costly mistake over decades of operation.

In essence, transformer efficiency determines how much power is wasted as heat, while the cooling system defines how effectively that heat is managed. Both directly affect total cost of ownership, not just the purchase price.

1. Transformer Efficiency: The Silent Cost Driver

Every power transformer loses a small portion of energy during operation. These losses - though minor per hour - occur continuously, 24/7, throughout the transformer's lifespan.

Loss Type	Description	Influence on Cost
Core (No-Load) Losses	Occur whenever the transformer is energized, due to magnetization of the steel core.	Constant energy cost, even at zero load.
Copper (Load) Losses	Occur due to resistance in windings when current flows.	Increases with load; more copper reduces losses but adds material cost.

Typical efficiencies under IEC 60076 standards:

Transformer Class	Efficiency Range
Distribution (≤2.5 MVA)	98.0–99.2%
Medium Power (2.5–30 MVA)	99.0–99.5%
Large Power (≥100 MVA)	99.5–99.7%

Even small efficiency improvements dramatically affect long-term economics.

Example:
For a 10 MVA transformer operating continuously:

99.2% efficiency → 80 kW of losses

99.5% efficiency → 50 kW of losses
This 30 kW difference equals 262,800 kWh per year, saving about $26,000 annually at $0.10/kWh.

Over 25 years, that's >$600,000 saved, far exceeding any additional purchase cost for higher-efficiency materials.

2. How Higher Efficiency Increases Initial Cost but Reduces Lifecycle Cost

Efficiency Level	Initial Cost	Operating Cost (25 yrs)	Total Lifecycle Cost
Standard (98.8%)	$100,000	$85,000	$185,000
High Efficiency (99.3%)	$110,000	$60,000	$170,000
Premium (99.5%)	$118,000	$45,000	$163,000

Higher efficiency requires better magnetic steel, thicker copper conductors, and precise winding geometry, all of which increase the initial price by 10–20%.

However, operating cost drops significantly, leading to lower total ownership cost.

3. The Role of Cooling Systems in Cost and Performance

Every watt of loss turns into heat. The cooling system determines whether this heat is removed efficiently - directly influencing lifespan and reliability.

Cooling Class (IEC 60076-2)	Medium	Description	Relative Cost	Typical Rating Range
ONAN	Oil Natural, Air Natural	Passive oil and air convection	1.0×	Up to 10 MVA
ONAF	Oil Natural, Air Forced	Radiators + fans	+15–25%	10–60 MVA
OFAF	Oil Forced, Air Forced	Oil pumps + fans	+30–45%	60–150 MVA
OFWF	Oil Forced, Water Forced	Oil-water heat exchangers	+50–70%	Specialized, e.g. marine/nuclear
AN / AF	Air Natural / Air Forced (Dry-Type)	Fan-cooled solid insulation	+10–20%	≤5 MVA

Each upgrade level adds more auxiliary components - radiators, pumps, fans, heat exchangers, sensors - which raise capital and maintenance costs, but also improve load handling and efficiency stability.

4. Efficiency–Cooling Interdependence

Cooling and efficiency are deeply interconnected.
Lower losses generate less heat, reducing cooling demand; conversely, superior cooling enables lower temperature rise, improving conductivity and efficiency.

Design Temperature Rise	Cooling Type	Relative Cost	Efficiency Gain	Expected Service Life
65°C	ONAN / AN	Base	-	25 years
55°C	ONAF / AF	+10–15%	+0.2–0.3%	30–35 years
45°C	OFAF / OFWF	+20–25%	+0.4–0.5%	40+ years

Every 10°C temperature reduction can double insulation lifespan according to Arrhenius' thermal aging law.
Thus, better cooling not only boosts efficiency but also extends service life - reducing replacement frequency.

5. Cooling System Material and Maintenance Costs

Cooling Medium	Heat Dissipation Efficiency	Maintenance Frequency	Material Cost Index	Safety/Environment
Mineral Oil	100%	Medium	1.0	Moderate fire risk
Natural Ester Oil	95%	Low	1.2	Biodegradable, fire-safe
Air (Dry Type)	60%	Low	1.3	Safe, non-flammable
Water (Forced)	120%	High	1.4	Excellent cooling, complex system

Oil-based systems offer best cooling per dollar spent, while ester and air systems improve safety and environmental performance at higher material cost.

6. Real Cost Impact Example

For a 20 MVA, 132/33 kV transformer:

Design Option	Cooling Type	Efficiency	Initial Cost (USD)	Annual Energy Loss (kWh)	25-Year Cost (USD)
Standard	ONAN	99.1%	$280,000	600,000	$850,000
Enhanced	ONAF	99.3%	$310,000	420,000	$790,000
Premium	OFAF	99.5%	$340,000	300,000	$760,000

The higher the cooling efficiency, the lower the total energy cost, even though initial investment rises by up to 20%.

7. Maintenance and Reliability Effects

Cooling Type	Maintenance Activities	Interval	Impact on Reliability
ONAN	Oil sampling, DGA	12 months	Good
ONAF	Fan servicing + DGA	6–12 months	Very good
OFAF / OFWF	Pump and filter cleaning	6 months	Excellent
Dry Type (AF)	Fan check, thermal relay	12 months	Good (indoor use)

Proper cooling lowers hot-spot temperature, preventing insulation cracking, sludge formation, and premature failure - directly saving on unplanned downtime and repair costs.

8. Future Efficiency & Cooling Innovations

Modern transformer designs integrate smart cooling and advanced materials:

Amorphous metal cores cut no-load losses by 60–70%.

Smart cooling fans adjust speed based on load and temperature.

Natural ester fluids combine eco-safety with strong thermal stability.

Digital temperature sensors monitor hot spots for predictive maintenance.

Hybrid ONAN/ONAF designs offer load-responsive performance with lower energy use.

Such advancements align with EU Ecodesign 548/2014 and IEC 60076-20 energy efficiency directives.

9. Summary: Efficiency & Cooling vs. Cost Impact

Aspect	Low-Cost Design (ONAN)	High-Efficiency Cooling (ONAF/OFAF)	Lifecycle Effect
Initial Price	Lower	+10–30%	↑ Investment
Operating Losses	Higher	Much lower	↓ Energy cost
Cooling Complexity	Simple	Radiators, fans, pumps	↑ Maintenance control
Lifespan	25 years	35–40 years	↑ Durability
Total Ownership Cost	Higher	Lower	↑ Long-term savings

What Are the Typical Price Ranges for Different Voltage Levels in Power Transformers?

For utilities, EPC contractors, and industrial buyers, understanding how voltage level affects transformer price is critical when budgeting for new installations or replacements. Many procurement managers are surprised to discover that cost doesn't increase linearly with voltage - instead, it grows exponentially due to the complexity of insulation, design, and testing requirements. Choosing the wrong voltage rating can result in overspending, longer delivery times, or compliance risks, while proper selection ensures a balanced cost-performance ratio aligned with grid demand.

In essence, transformer price scales primarily with voltage level, insulation requirements, and MVA capacity - not just physical size. High-voltage units (≥132 kV) require advanced materials, larger clearances, and more rigorous testing, driving costs 2–4 times higher per kVA than low-voltage transformers.

The following paragraphs provide a deep technical and economic analysis to help procurement teams, engineers, and project planners make informed decisions when comparing power transformer price ranges across voltage classes.

1. Relationship Between Voltage Level and Cost Structure

The price of a power transformer increases with voltage because higher ratings demand:

Thicker insulation layers (oil, paper, or resin)

Greater creepage distances and mechanical strength

Enhanced core design to control losses at high flux densities

More sophisticated bushings, tap changers, and cooling systems

Higher dielectric test voltages and stricter IEC 60076 compliance

The table below summarizes the major technical cost drivers by voltage level.

Voltage Class (kV)	Key Technical Requirements	Relative Material & Testing Cost Index
≤ 11 kV (Distribution)	Simple insulation, standard copper windings	1.0
33 kV (Sub-Transmission)	Larger core, oil or dry cooling	1.5
66 kV (Regional Grid)	Improved dielectric insulation, tap changer	2.2
132 kV (Transmission)	High dielectric strength, precision assembly	3.0
220 kV (High Transmission)	Oil-immersed, advanced cooling and testing	4.0
400 kV+ (EHV/UHV)	Multilayer insulation, special steel, extensive tests	6.0+

2. Typical Price Ranges by Voltage Level and Capacity

Below is a general global market reference for oil-immersed power transformers (based on 2025 industrial data from Asia, Europe, and the Middle East). Prices vary by brand, efficiency class, and country of origin.

Voltage Level	Typical Capacity (MVA)	Average Price Range (USD)	Price per kVA (USD)
6.6 – 11 kV (Low Voltage)	0.5 – 2.5 MVA	$8,000 – $45,000	9 – 18
22 – 33 kV (Medium Voltage)	2.5 – 10 MVA	$40,000 – $120,000	8 – 15
66 kV (Sub-Transmission)	10 – 30 MVA	$120,000 – $350,000	10 – 14
110 – 132 kV (Transmission)	20 – 60 MVA	$300,000 – $850,000	12 – 18
220 kV (High Transmission)	40 – 150 MVA	$800,000 – $2.5 million	14 – 20
400 kV (Extra High Voltage)	100 – 300 MVA	$2.5 – $6 million	18 – 25
765 kV (UHV)	250 – 800 MVA	$6 – $15 million	25 – 35

Note: Prices above are for three-phase, oil-immersed, ONAN/ONAF-cooled units with standard efficiency (IEC 60076 compliant).
Dry-type or eco-friendly designs typically add 15–30% to the cost.

3. Why Costs Rise Disproportionately at Higher Voltages

The primary cost jump from 66 kV upward is due to electrical insulation complexity and testing standards.

Voltage Range	Major Cost Contributors	IEC Test Voltage (kV)	Impact on Price
11–33 kV	Core & copper materials	28–70	Minor
66–132 kV	Insulation, oil volume, bushings	170–325	Moderate
220–400 kV	Field testing, partial discharge, oil cooling	460–950	High
500–765 kV	Factory and site type tests, transport logistics	>1200	Very High

Each step in voltage class multiplies insulation thickness, clearance distances, and testing duration, thereby increasing labor and factory time.

4. Cooling and Loss Class Adjustments by Voltage Level

High-voltage transformers often require advanced cooling systems (ONAF, OFAF, OFWF) to maintain safe temperature rise limits. These systems add 10–40% to the total price depending on load profile.

Voltage Level	Common Cooling Type	Approx. Cost Impact
≤ 33 kV	ONAN (Oil Natural, Air Natural)	Base
66–132 kV	ONAF (Oil Natural, Air Forced)	+15%
220–400 kV	OFAF (Oil & Air Forced)	+25–35%
≥ 500 kV	OFWF (Oil & Water Forced)	+40–50%

Additionally, transformers meeting EU Tier 2 or DOE 2021 efficiency standards typically cost 5–12% more but reduce long-term energy losses significantly.

5. Regional Price Variation

Region	Typical Price Difference (vs. Global Average)	Key Influences
Asia (China, India, Vietnam)	−10 – 20%	Lower labor, strong manufacturing capacity
Europe (Germany, Poland, Italy)	+10 – 25%	High material, energy, and compliance costs
Middle East & Africa	±10%	Import tariffs, logistics complexity
North America (U.S., Canada)	+15 – 30%	DOE compliance, domestic sourcing requirements

Freight, packaging, and site installation can add another 3–8% depending on project distance and transformer weight (which can exceed 200 tons for 400 kV units).

6. Long-Term Economic Considerations

While low-voltage units have short ROI periods, high-voltage transformers must be evaluated by total lifecycle cost rather than upfront price.

Voltage Level	Estimated Service Life (Years)	Typical ROI Period	Efficiency Requirement
11–33 kV	20–25	5–7	Medium
66–132 kV	25–35	8–10	High
220–400 kV	30–40+	10–12	Premium

Utilities often justify higher voltage costs through reduced transmission losses and increased grid reliability, which yield lower cost per delivered kWh over time.

7. Cost Breakdown Example for a 132 kV 40 MVA Transformer

Component	Approx. Share of Total Cost
Core and Windings	35%
Tank and Cooling	20%
Insulation and Bushings	15%
Tap Changer	10%
Testing and Quality Control	8%
Logistics and Packaging	5%
Miscellaneous Accessories	7%

Even at the same voltage level, factors such as material selection (CRGO vs. amorphous steel) and efficiency grade (Tier 1/Tier 2) cause price differences of up to 20%.

8. Summary Table: Price and Performance Overview

Voltage Class	Typical Capacity	Approx. Cost (USD)	Cooling Type	Common Applications
11 kV	1 MVA	$10,000 – $20,000	ONAN	Distribution networks
33 kV	5 MVA	$40,000 – $90,000	ONAN/ONAF	Substations, factories
66 kV	20 MVA	$150,000 – $250,000	ONAF	Regional power stations
132 kV	40 MVA	$350,000 – $700,000	ONAF	Transmission interface
220 kV	100 MVA	$1 – 2 million	OFAF	National grid projects
400 kV	250 MVA	$3 – 5 million	OFWF	Long-distance transmission
765 kV	500 MVA+	$8 – 15 million	OFWF	UHV interconnection systems

How Can Buyers Optimize Costs When Selecting a Transformer Type?

When planning an electrical substation, industrial expansion, or renewable integration project, buyers face one of the most challenging decisions: how to select a transformer type that minimizes cost without compromising performance or safety. Poor selection leads to oversized equipment, higher energy losses, and increased maintenance expenses, while the right choice can reduce total ownership costs by up to 30%.

In essence, optimizing transformer cost is not just about buying the cheapest unit - it's about selecting the right type, design, and configuration that best aligns with operating conditions, load demand, and lifecycle economics.

In the following in-depth analysis, we explore the technical and economic principles that determine transformer type selection, comparing oil-immersed vs. dry-type, standard vs. customized, and efficiency vs. upfront investment scenarios - to help buyers make truly cost-effective decisions.

1. Identify Application and Environment to Choose Correct Type

The application environment is the first and most decisive factor in transformer type selection.

Application Scenario	Recommended Transformer Type	Rationale	Cost Impact
Indoor / Commercial Buildings	Dry-Type (Cast Resin / VPI)	Fire-safe, low maintenance	+10–25% higher initial cost
Outdoor / Utility Substations	Oil-Immersed (ONAN/ONAF)	Higher efficiency, cheaper per kVA	−15–30% lower cost
Renewable Energy (Solar/Wind)	Oil-Immersed / Pad-Mounted	Withstands temperature fluctuation	Moderate
Marine / Underground / Tunnel	Dry-Type or Ester-Filled	Fire-resistant, compact	+20–35%
Heavy Industrial (Steel, Cement)	Oil-Immersed	Handles overload and dust	Cost-efficient long-term

Dry-type transformers cost more upfront but offer superior fire safety and minimal environmental risk, making them ideal for indoor or densely populated installations.

Oil-immersed units, in contrast, are more efficient (up to 99.6%), better at managing load peaks, and significantly cheaper per MVA, but require oil containment, fire protection, and regular maintenance.

2. Match Capacity to Load Profile – Avoid Over-Sizing

A common mistake in transformer procurement is overspecifying capacity for "future expansion." This increases both initial investment and no-load losses.

Load Factor (%)	Transformer Utilization	Impact on Cost Efficiency
40–60%	Undersized	Overheating, reduced lifespan
70–80%	Optimal	Best cost-efficiency balance
90–100%	Fully utilized	Higher copper losses, faster aging

For best economics, the rated capacity should align with the average load factor of 70–80% of expected operation.

Example:

Choosing a 5 MVA transformer for a 3.5 MVA steady load yields lower lifecycle cost than a 6 MVA unit that will operate underloaded 90% of the time.

3. Compare Life-Cycle Cost, Not Just Purchase Price

Transformers are long-term assets with lifespans of 25–40 years. Initial price represents only about 15–20% of total lifecycle cost, while energy losses account for 70–80%.

Cost Component	Share of Total Lifecycle Cost
Purchase and Transport	15%
Installation & Commissioning	5%
Energy Losses (Over 25 years)	65%
Maintenance	10%
Decommissioning	5%

High-efficiency transformers (IEC Tier 2, DOE 2021) cost 5–10% more but save hundreds of thousands of dollars in energy over their life.

4. Understand Cooling Class and Its Cost Implications

Cooling design directly affects both price and efficiency.

Cooling Type	Description	Relative Cost Index	Typical Capacity Range (MVA)
ONAN (Oil Natural, Air Natural)	Passive convection	1.0	≤10
ONAF (Oil Natural, Air Forced)	Fans assist cooling	1.15	10–60
OFAF (Oil & Air Forced)	Pumps + fans	1.3	60–150
OFWF (Oil & Water Forced)	Water heat exchangers	1.5	≥150
AN / AF (Dry-Type)	Air Natural / Air Forced	1.1	≤5

Buyers should choose the simplest cooling system that meets load and ambient conditions. Complex cooling (e.g., OFAF/OFWF) increases cost, maintenance, and power consumption.

5. Standardization and Modular Design Reduce Costs

Custom-built designs are sometimes necessary, but standardized configurations (common voltage ratios, tap ranges, and accessories) significantly cut:

Engineering and testing time

Spare part costs

Lead time by 30–40%

Design Type	Custom Level	Typical Lead Time	Relative Price
Standard IEC/ANSI model	Minimal	10–14 weeks	Base
Modified standard	Medium	14–18 weeks	+10%
Fully custom	High	18–26 weeks	+20–30%

Therefore, choosing an IEC-standardized voltage ratio (e.g., 33/11 kV or 132/33 kV) offers faster delivery and better pricing due to economies of scale.

6. Optimize Material Selection for Long-Term Value

Transformer materials - particularly core steel and conductor metal - are key cost drivers.

Material Option	Initial Cost	Efficiency	Best Use Case
CRGO Steel + Copper Windings	Medium	High	General-purpose oil-immersed
Amorphous Steel + Copper	+10–15%	Very High	Energy-efficient utilities
Aluminum Windings	−10–20%	Medium	Budget-sensitive installations
Hybrid Cu/Al Design	Moderate	Balanced	Cost-performance projects

Selecting aluminum or hybrid windings can reduce initial price while maintaining acceptable performance - suitable for non-critical applications or short operating hours.

7. Regional Manufacturing and Logistics Optimization

Procurement from regional manufacturers can save 10–25% through:

Lower shipping and handling costs

Simplified compliance with local grid codes

Reduced customs and insurance fees

Region	Average Cost Difference vs. Global Price	Typical Delivery Period
Asia (China, India)	−10–25%	12–16 weeks
Europe	+10–20%	14–20 weeks
North America	+15–30%	16–22 weeks

Strategic sourcing close to project sites also minimizes damage risk during transport - especially for units >100 tons.

8. Smart Accessories and Optional Features: Choose Wisely

While modern transformers can integrate IoT monitoring, OLTC automation, and digital sensors, not all are necessary for every project.

Optional Feature	Typical Added Cost	Benefit
OLTC (On-Load Tap Changer)	+10–15%	For fluctuating grid voltage
Digital temperature sensors	+3–5%	Predictive maintenance
Dissolved Gas Analysis (DGA)	+8–10%	Online fault monitoring
SCADA integration	+5–7%	Centralized control
Smart cooling fans	+2–3%	Adaptive efficiency

Only include features that directly support operational reliability - not "nice-to-have" add-ons.

9. Case Study: 33/11 kV 10 MVA Transformer Selection Optimization

Option	Type	Initial Cost (USD)	Losses (kW)	25-Year Energy Cost @ $0.1/kWh	Total Life Cost (USD)
Basic Oil-Immersed	ONAN	$75,000	60	$1,314,000	$1,389,000
High-Efficiency Oil	ONAF	$85,000	45	$985,500	$1,070,500
Dry-Type Cast Resin	AF	$95,000	55	$1,204,500	$1,299,500

The ONAF oil-immersed model achieves the best cost-performance ratio with 7–10% lower lifecycle cost.

10. Summary: Key Strategies to Optimize Transformer Costs

Optimization Area	Strategy	Cost Impact
Transformer Type	Match to environment (oil vs. dry)	±20%
Capacity	Size for 70–80% utilization	−10–15%
Efficiency	Choose Tier 2 standard	−20–30% lifetime energy cost
Cooling System	Simplify if load allows	−5–10%
Material Selection	Aluminum or hybrid design	−10–20%
Regional Sourcing	Local manufacturing	−10–25%
Accessories	Select only necessary features	−5–15%

Conclusion

While step-up transformers generally cost more due to higher insulation requirements, advanced winding designs, and the need to handle higher voltage stresses, step-down transformers tend to be more economical and widely used in industrial and commercial distribution systems. However, cost alone should not determine the choice. Project specifications-such as installation location, load profile, voltage ratio, and efficiency requirements-must guide the selection process.

To achieve the best value, buyers should compare total ownership cost, including efficiency losses, maintenance, and expected lifespan, rather than focusing solely on initial price. Partnering with a reputable manufacturer ensures that both step-up and step-down transformers meet technical standards and deliver reliable performance throughout their service life.
