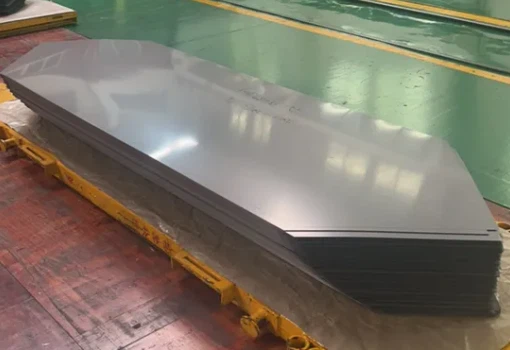

Grain-Oriented Silicon Steel Lamination Cores

Grain-oriented silicon steel is a premium low-carbon silicon iron alloy with a silicon content ranging from about 0.5 to 4.5 percent. Its outstanding high permeability significantly reduces magnetic losses in power equipment, enhancing efficiency and delivering substantial energy savings. It also offers remarkably low iron loss and a high resistivity coefficient, making it the optimal choice for transformer cores, where the magnetic flux path follows a single direction.

Core Grade Specifications

Common type grades include 23Q110 with a maximum core loss of 1.10 W/kg, 23Q120 and 27Q120 at 1.20 W/kg, and 30G120 at 1.20 W/kg, with lamination factors of 97.2 to 98 percent and minimum induction at 800 A/m of 1.82 T. High-induction type grades include B20P085 and B23P085 at 0.85 W/kg, B23P090 at 0.90 W/kg, B23P095 and B27P095 at 0.95 W/kg, B23P100 and B27P100 at 1.00 W/kg, and B30P120 at 1.20 W/kg, with minimum induction of 1.86 to 1.89 T. Domain-refined high-induction (laser-scrubbed) grades include B20R070 at 0.70 W/kg, B23R085 and B27RK085 at 0.85 W/kg. Strip widths range from 35 to 1200 mm. All core loss values are measured at 1.7 T and 50 Hz per IEC 60404-8-7.

Precision Core Assembly

Fully assembled cores are available in both automatically stacked and manually stacked versions. The maximum weight of an automatically stacked core is 60 tons, and of a manually stacked core 120 tons. Joint gap is controlled to less than 1 mm, and window height and width precision are maintained within plus or minus 1 mm. These tolerances ensure low exciting current, consistent flux distribution, and low audible noise.

Manufacturing Process

The manufacturing process comprises raw material sourcing, slitting to width, punching or cutting, laminating, core forming, and final testing of magnetic properties and dimensions. Each stage is controlled to preserve the grain orientation and insulation coating of the steel.

Applications

These cores are used in power and distribution transformers, reactors, and other magnetic components where low no-load loss and high induction are required, including energy-efficient transformer programs and renewable energy equipment.

Frequently Asked Questions

Q: What does 0.85 W/kg mean in the grade designation?

A: It is the maximum specific total loss of the material at 1.7 T and 50 Hz, measured by the Epstein method. Lower values indicate higher-quality steel with lower no-load loss in the finished transformer.

Q: What is the difference between 23Q and B23P grades?

A: 23Q designates a conventional grain-oriented grade, while B23P designates a high-induction grade with higher guaranteed induction at 800 A/m, typically 1.88 T instead of 1.82 T.

Q: What is laser domain refinement?

A> Laser scribing (domain refinement) subdivides magnetic domains on the strip surface, reducing anomalous eddy current loss. R-type grades such as B23R085 achieve lower core loss at the same induction.

Q: Why is lamination factor important?

A: The lamination factor is the ratio of the active steel cross-section to the geometric cross-section of the stack. Higher factors mean less wasted space and better utilization of the core window.

Q: What core sizes can be supplied?

A: Cores are built to order with window dimensions, build height, and joint configuration matched to the transformer design, with joint gap below 1 mm and dimensional precision of plus or minus 1 mm.

Q: Which standard applies to core loss measurement?

A: Specific total loss is measured per IEC 60404-8-7 using the Epstein frame method at 1.7 T and 50 Hz, with grade designations following the corresponding national standards.

For a core design review and quotation, contact our engineering team with your transformer rating, voltage class, and target loss values.
