M4 Silicon Steel Rectangular Laminations for Auto-Transformers

Oct 21, 2025

Leave a message

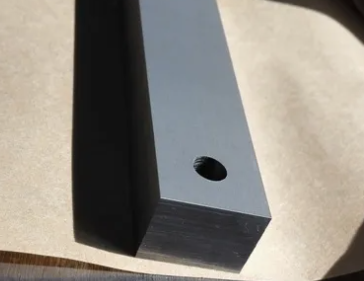

What Are Rectangular Silicon Steel Laminations?

Rectangular silicon steel laminations are strips of silicon steel sheet with a rectangular cross-section, stacked in an orderly pattern to form a closed magnetic circuit. The regular geometry gives a symmetric magnetic circuit and convenient processing, which is why rectangular laminations are widely used in electromagnetic equipment such as transformers, reactors, and motors. For auto-transformers, the predictable flux distribution and stable stacking height simplify core assembly and coil fitting.

M4 Grade and Material Properties

M4 is a premium grain-oriented (CRGO) silicon steel grade characterized by high permeability and low core loss. The material is a low-carbon silicon-iron alloy with a silicon content of about 0.5% to 4.5%. Grain-oriented processing aligns the crystal structure with the rolling direction, greatly reducing iron loss in power equipment and improving energy efficiency. Key features of M4 laminations include:

Optimized magnetic permeability: high flux density at moderate magnetizing force improves transformer efficiency.

Low core loss: reduced energy dissipation during operation lowers the running cost of the transformer.

High durability: resistance to wear and mechanical stress ensures long service life.

Precision thickness control: consistent strip thickness improves the lamination factor and reduces loss scatter.

Environmental compatibility: the steel is produced in processes designed to meet eco-friendly standards.

Core Loss and Induction Grades

Table 1 lists common M4-type grades with their width range, maximum core loss at 1.7 T and 50 Hz, lamination factor, and minimum induction at a field strength of 800 A/m. These values follow the test methods of GB/T 2522 and IEC 60404-2.

Type Grade Width (mm) Max core loss @1.7T/50Hz (W/kg) Lamination factor (%) Min induction @B800 (T)
Common 23Q110 35-1200 1.10 97.2 1.82
Common 23Q120 35-1200 1.20 97.2 1.82
Common 27Q120 35-1200 1.20 97.5 1.82
Common 30G120 35-1200 1.20 98.0 1.82
High induction B23P085 35-1200 0.85 97.2 1.88
High induction B23P095 35-1200 0.95 97.2 1.88
High induction B27P095 35-1200 0.95 97.5 1.89
High induction B30P120 35-1200 1.20 98.0 1.89
Domain refined B20R070 35-1200 0.70 97.0 1.86
Domain refined B27RK085 35-1200 0.85 97.5 1.89

Domain-refined (laser-treated) grades offer the lowest core loss and are used in high-efficiency transformers where energy savings justify the higher material cost.

Manufacturing Precision

The performance of a stacked core depends as much on fabrication precision as on the steel grade. Typical controlled parameters for rectangular laminated cores include:

Maximum weight of automatically stacked core: 60 tons; manually stacked core: 120 tons.

Precision gap limit at the joint: less than 1.0 mm.

Window height and width precision: plus or minus 1 mm.

Production starts from the customer's core drawing: the core loss and dimension requirements are calculated, and the laminations are cut, stacked, and tested to match the drawing. Verification of the joint gap and window dimensions before dispatch prevents assembly problems in the transformer plant.

Applications

Power transformers: low core loss raises transmission efficiency.

Distribution transformers: reduced energy loss in residential and industrial grids.

Auto-transformers: stable magnetic circuit for compact voltage conversion.

Electrical cores and reactors: consistent performance in core assemblies.

Renewable energy equipment: transformers in solar and wind power systems.

Frequently Asked Questions

What does the M4 designation mean in silicon steel?

M4 is a conventional designation for a grain-oriented electrical steel grade indicating a specific combination of thickness, core loss, and permeability. Equivalent grades are defined in national standards such as GB/T 2521 and ASTM A876.

Why are rectangular laminations used in auto-transformers?

The rectangular geometry produces a symmetric magnetic circuit with a stable stacking height, which simplifies core clamping and winding assembly in auto-transformers and gives predictable flux distribution.

What is the lamination factor and why does it matter?

The lamination factor is the ratio of the actual steel cross-section to the geometric cross-section of the stack. A higher factor means less air space between strips and therefore lower magnetizing current and core loss for the same stack size.

What is the difference between common and domain-refined grades?

Domain-refined (laser-treated) grades have the magnetic domains subdivided by laser scribing, which reduces anomalous eddy current loss and lowers core loss by roughly 10-15 percent compared with standard high-induction grades.

How is core loss measured for these grades?

Core loss is measured on Epstein strips or single-sheet testers at 1.7 T and 50 Hz in accordance with GB/T 2522 and IEC 60404-2, and the guaranteed values are stated in the grade table.

What is the maximum stack weight for a rectangular core?

Automatic stacking is available up to about 60 tons, while manually stacked cores can reach about 120 tons, depending on the plant equipment and the core geometry.
