How to Apply 6kV Oil Type Power Transformer to 200 KVA/250 KVA Three Phase Oil Immersed Transformers
Jan 28, 2026
Leave a message
Integrating a 6kV oil type power transformer into a 200 KVA or 250 KVA three-phase power system is a common yet critical task for industrial and commercial projects. Incorrect application can lead to inefficiency, safety hazards, or premature failure.
As an experienced 6kV transformer manufacturer, GNEE provides not only high-quality oil immersed transformers but also the essential application knowledge.
This guide outlines the key steps-from specification to installation-to ensure your 200 KVA or 250 KVA three-phase transformer operates reliably and safely on a 6kV system for years to come.
Step 1: Specifying the Correct 6kV Transformer Parameters
The first step is to translate your system requirements into precise transformer specifications.
For a 200 KVA or 250 KVA three phase transformer on a 6kV system, these parameters are non-negotiable:
- Primary Voltage (HV Side): Must match your incoming grid or generator voltage. Standard 6kV system voltages include 6.3kV, 6.6kV, or 6.9kV. You must specify the exact value (e.g., 6600V ±5%).
- Secondary Voltage (LV Side): Typically 400V/230V for low-voltage distribution to motors, lighting, and equipment. Confirm your local standard.
- Vector Group: For three-phase systems, Dyn11 is the most common vector group. It provides a stable neutral on the LV side for single-phase loads and offers good harmonic trapping. Yyn0 is another option but is less tolerant of unbalanced loads.
- Impedance (%Z): For 200-250 KVA transformers on a 6kV system, a 4% or 6% impedance is standard. A lower %Z reduces voltage drop but increases fault current; your choice must align with downstream protective device ratings.
Matching Protection and Control Gear for Safe Operation
A transformer is part of a system. Its protection is paramount for a safe 6kV oil type power transformer application.
HV Side Protection (6kV): This usually involves HV fuse-switch combinations or a circuit breaker. The fuse/breaker rating must be selected to:
Carry the transformer's full-load current.
Withstand the inrush current (8-12 times rated current for up to 0.1 seconds).
Quickly clear internal transformer faults.
LV Side Protection (400V): The main LV circuit breaker must provide overload and short-circuit protection for the transformer's secondary windings and the downstream busbar.
Transformer Built-in Protection: Ensure your oil immersed transformer is fitted with a Buchholz relay (for internal gas faults), a pressure relief device, and winding temperature indicators (WTI). These devices should be wired to alarm and/or trip circuits.
Real-world example of a fully protected 6kV/400V transformer installation.
Step 2: Installation and Commissioning Best Practices
Proper installation ensures performance and longevity.
Follow these key practices for your 200 KVA/250 KVA three phase oil transformer:
- Foundation & Grounding: Provide a level, reinforced concrete foundation. The transformer tank must be solidly grounded using a dedicated ground grid with low resistance (<5 ohms is typical) to ensure safety during faults.
- Oil Handling: Before energization, check the oil level. If the transformer has been stored, an oil dielectric strength test is recommended to ensure insulation integrity. Never open the transformer to atmosphere unnecessarily.
- Pre-Energization Checks: Verify all electrical connections are tight. Ensure protective devices are set correctly. Perform essential commissioning tests like insulation resistance (Megger) tests and turns ratio tests, even if factory reports are available.
Operational Considerations for 200 KVA vs. 250 KVA Units
While the application principles are similar, choosing between a 200 KVA and a 250 KVA capacity has operational implications:
- Loading and Efficiency: A 250 KVA transformer running at a 200 kVA load (80%) will generally operate more efficiently and cooler than a 200 KVA unit at full load. This extends insulation life.
- Future Expansion: The 250 KVA model offers a 25% capacity buffer for future load additions without requiring a transformer swap.
- Physical Size: The 250 KVA unit will be slightly larger and heavier. Confirm space and access constraints in your substation room or outdoor pad location.
Technical Specification Reference Table
The table below provides a clear comparison for specifying GNEE's 6kV oil type transformers in both 200 KVA and 250 KVA ratings for three-phase applications.
| Parameter | GNEE 200 KVA 6kV Oil Transformer | GNEE 250 KVA 6kV Oil Transformer | Application Note |
|---|---|---|---|
| Rated Capacity | 200 kVA | 250 kVA | Select based on calculated maximum demand + growth margin. |
| Primary Voltage | 6.3kV, 6.6kV, 6.9kV (Customizable) | 6.3kV, 6.6kV, 6.9kV (Customizable) | Must exactly match your system voltage. |
| Secondary Voltage | 400V / 230V | 400V / 230V | Standard low-voltage output. |
| Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz | |
| Vector Group | Dyn11 (Standard) | Dyn11 (Standard) | Recommended for three-phase four-wire systems. |
| Cooling Type | ONAN (Oil Natural Air Natural) | ONAN | Standard, reliable cooling for this rating. |
| Impedance (%Z) | 4% (Standard) | 4% (Standard) | Confirm compatibility with your system fault level. |
| Noise Level | ≤ 55 dB(A) | ≤ 56 dB(A) | Suitable for installations near occupied areas. |
| Approx. Weight (Oil & Core) | ~ 900 kg | ~ 1100 kg | Critical for logistics and foundation design. |
| Standard Protections | Buchholz Relay, PRV, WTI, Silica Gel Breather | Buchholz Relay, PRV, WTI, Silica Gel Breather | Essential for safe and monitored operation. |

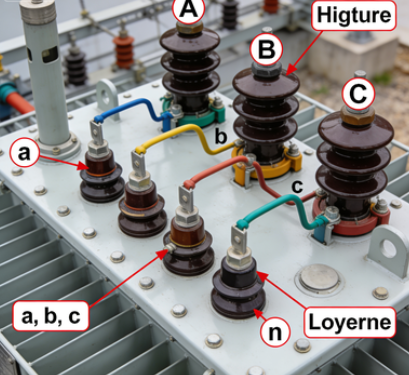

Close-up view of transformer bushings for correct three-phase connection.
Conclusion: Ensure a Reliable and Safe Power Step-Down
Correctly applying a 6kV oil type power transformer to your 200 KVA or 250 KVA three-phase system is a systematic process of precise specification, coordinated protection, and careful installation. By following these guidelines, you ensure operational safety, efficiency, and compliance.
For complex projects or custom requirements, expert support is invaluable.
Contact GNEE's application engineering team today for a free design review and a tailored quotation for your specific 6kV transformer needs.
