Two Transformer Families, One Design Question
Dry-type and oil-immersed transformers do the same electrical job, yet they behave very differently in terms of fire risk, maintenance, footprint and lifecycle cost. The choice is decided by the installation environment and by the project specification rather than by purchase price alone. Oil-immersed units dominate high-voltage, large-capacity outdoor duty, while dry-type units dominate indoor locations where fire safety and freedom from oil leakage are mandatory.
Application Scenarios
Oil-immersed transformers: power substations, high-voltage grids and heavy industrial loads. The oil circulates heat to radiators and also acts as insulation, so the design tolerates high load and short-term overload well.

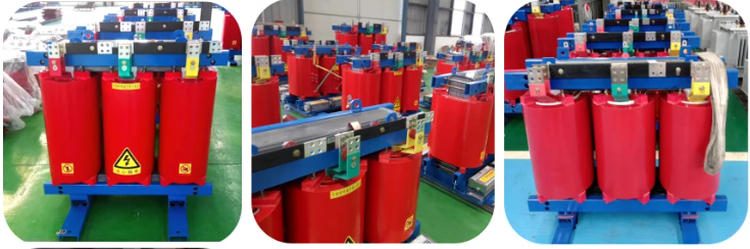

Dry-type transformers: commercial centres, hospitals, schools, high-rise buildings and other densely occupied or environmentally sensitive sites. There is no flammable liquid and no oil containment, which simplifies fire protection and keeps the installation compact. The usual constructions are cast-resin (SCB) and non-encapsulated (SGB) types.
Comparison of the Main Dimensions
| Dimension | Oil-immersed | Dry-type |
|---|---|---|
| Heat dissipation | Good, oil plus radiators; stable under high load | Weaker, air cooling; sensitive to ambient temperature |
| Manufacturing cost | Lower | Higher |
| Operation and maintenance cost | Higher: oil testing, filtration and dissolved gas analysis | Lower: no oil, simpler periodic inspection |
| Fire safety | Higher fire risk because of the flammable oil | Lower fire risk; preferred in crowded places |
| Environmental impact | Leakage risk; containment and oil disposal required | No oil, so no leakage or oil pollution |
| Typical rating range | Up to hundreds of MVA, substation class | Typically up to tens of MVA, indoor class |
| Noise | Generally lower at the same rating | Can be higher; acoustic design needed in sensitive areas |
| Installation | Outdoor, or indoor with oil containment | Indoor, compact, no oil containment required |
Standards and Insulation Systems
Oil-immersed transformers are covered by IEC 60076-1 through IEC 60076-10 and by IEC 60076-14 for high-temperature insulation systems. Dry-type transformers are covered by IEC 60076-11. Cast-resin products are normally supplied with insulation class F, rated 155 degrees C, or class H, rated 180 degrees C. The insulation class, the permitted temperature rise and the noise limit must always be checked against the project specification, because they drive both the design margin and the cooling arrangement.
Selection Guidance
Choose an oil-immersed unit for outdoor substations, high-voltage grids and heavy industrial loads where capacity and overload capability dominate. Choose a dry-type unit for indoor installations in commercial, medical, educational and high-density residential buildings, or wherever environmental rules restrict the use of oil. In both cases compare the total lifecycle cost rather than the purchase price: oil maintenance, fire-protection systems, insurance premiums and eventual disposal all belong in the calculation. Verify the insulation class, temperature rise limits and noise requirements before the design is frozen, and confirm that the planned footprint and ventilation allow the calculated heat loss to be removed at the highest expected ambient temperature.
Frequently Asked Questions
Q: Which transformer type is safer indoors?
Dry-type units, because they contain no flammable oil and therefore present a much lower fire and leakage risk in occupied buildings.
Q: Why is the purchase price of an oil-immersed transformer lower?
The oil-filled construction is simpler and benefits from mature, high-volume manufacturing, but it carries higher running costs for oil testing, filtration and dissolved gas analysis.
Q: Can a dry-type transformer carry the same overload as an oil-immersed unit?
No. Air cooling is less effective than oil circulation, so dry-type units are more sensitive to ambient temperature and have a smaller overload margin.
Q: Which standards apply to each type?
IEC 60076-1 to IEC 60076-10 and IEC 60076-14 cover oil-immersed transformers, while dry-type transformers are covered by IEC 60076-11.
Q: What insulation classes are normal for cast-resin transformers?
Class F at 155 degrees C and class H at 180 degrees C are the common ratings; the choice depends on the temperature rise limit in the specification.
Q: Is a dry-type transformer noisier?
At the same rating it can be, so acoustic design or additional attenuation may be required where the unit is installed close to occupied areas.
