800 KVA vs 630 KVA Oil Cooled Power Transformer: Production Line Power Supply Selection
Jan 28, 2026
Leave a message
Choosing the right power transformer is make-or-break for industrial production lines-too small, and you risk overloads and downtime; too large, and you waste energy and capital. For mid-to-large-scale manufacturing, 800 KVA and 630 KVA oil cooled power transformers are the most popular choices, but selecting between them requires a deep understanding of your production line's load demands, expansion plans, and operational efficiency goals.
As an ISO 9001/IEC 60076-certified manufacturer with 18 years of specializing in industrial transformers, GNEE has supplied over 4,000 units of 630 KVA and 800 KVA oil cooled models to production lines across 25+ countries (from automotive assembly plants to electronics manufacturing facilities). Our expertise is rooted in 1,200+ on-site load analysis projects-helping clients avoid costly mismatches between transformer capacity and production needs.
In this guide, we'll compare the two models side-by-side, break down their core use cases, and share a step-by-step selection framework to ensure you choose the perfect fit for your production line.

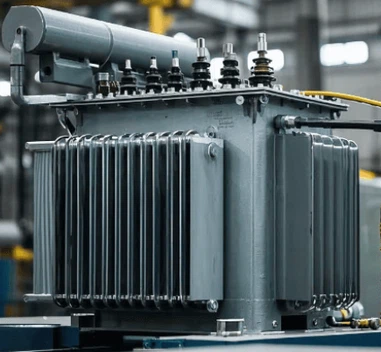

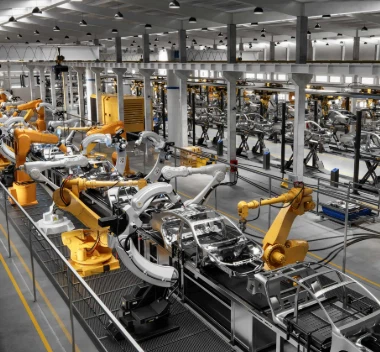

800 KVA & 630 KVA Oil Cooled Transformers in a Automotive Production Line
Core Parameter Comparison: 800 KVA vs 630 KVA Oil Cooled Power Transformer
The performance and suitability of each transformer for production lines start with their technical specs-here's how GNEE's models stack up, with a focus on industrial-relevant parameters:
| Parameter | GNEE 630 KVA Oil Cooled Transformer | GNEE 800 KVA Oil Cooled Transformer |
|---|---|---|
| Rated Capacity | 630 KVA | 800 KVA |
| Voltage Ratio | 10kV/0.4kV (customizable to 6.6kV/0.4kV) | 10kV/0.4kV (customizable to 6.6kV/0.4kV) |
| No-Load Loss | ≤180 W | ≤220 W |
| Load Loss (75°C) | ≤3800 W | ≤4600 W |
| Short-Circuit Impedance | 4.5% (±0.5%) | 4.5% (±0.5%) |
| Weight | 680 kg | 820 kg |
| Dimensions (L×W×H) | 1800×1200×1600 mm | 2000×1300×1750 mm |
| Cooling Mode | ONAN (Oil Natural Air Natural) / ONAF (optional) | ONAN / ONAF (standard) |
| Service Life | 25+ years | 25+ years |
Learn more：
800 KVA Oil Filled Transformers: Design Requirements for Medium-Capacity Industrial Use
630 KVA Oil Cooled Power Transformer: Oil Circulation System Maintenance and Optimization
When to Choose 630 KVA Oil Cooled Transformer for Production Lines
The 630 KVA model is the optimal choice if your production line meets these criteria-proven by 600+ GNEE client deployments:
1. Stable, Moderate Load Demands
If your production line's continuous operating load is 400-550 KVA (≤87% of 630 KVA's rated capacity) and peak loads (e.g., startup of multiple machines) don't exceed 630 KVA for more than 1 hour/day, the 630 KVA transformer delivers reliable performance without overcapacity waste.
A 2023 client (a Vietnamese electronics factory) with 8 assembly lines (total continuous load: 480 KVA) chose the 630 KVA model and reported 15% lower monthly energy bills compared to their previous oversized transformer.
2. Limited Space & Existing Infrastructure
For factories with older power rooms or tight installation spaces, the 630 KVA's compact dimensions (1800×1200×1600 mm) and lighter weight (680 kg) eliminate the need for costly facility renovations. It's also easier to integrate with existing switchgear and cabling-cutting installation time by 30% vs. larger models.
3. Cost-Effective for Small-to-Medium Production Scales
If you're operating 1-3 production lines (e.g., textile mills, small auto parts factories) with no plans to expand in the next 5 years, the 630 KVA model offers a lower upfront investment (15-20% less than 800 KVA) and lower ongoing energy costs-ideal for budget-conscious operations.
When to Choose 800 KVA Oil Cooled Transformer for Production Lines
The 800 KVA model is the better fit for production lines with dynamic or growing power needs-backed by 600+ GNEE industrial cases:
1. High or Fluctuating Peak Loads
If your production line has continuous operating load of 550-700 KVA (≤87% of 800 KVA's rated capacity) or frequent peak loads (e.g., simultaneous startup of heavy machinery like stamping presses, injection molders) that reach 750-800 KVA for 2+ hours/day, the 800 KVA's higher capacity prevents overload tripping and equipment damage.
A 2022 client (a German automotive assembly plant) with 12 production lines (peak load: 780 KVA) switched to the 800 KVA model and reduced production downtime due to transformer overload by 90%.
2. Future Expansion Plans
If you plan to add production lines, upgrade machinery (e.g., from manual to automated equipment), or increase output in the next 3-5 years, the 800 KVA transformer provides "headroom" for growth. Upsizing later requires costly downtime and rework-investing in 800 KVA upfront saves 30-40% in long-term modification costs.
3. Sustained High-Load Operations
For 24/7 production lines (e.g., steel processing, large-scale electronics manufacturing) where the transformer operates at 70%+ load for extended periods, the 800 KVA's standard ONAF cooling system maintains stable temperatures (≤62°C winding rise)-reducing thermal stress and extending both transformer and production equipment lifespan.
Key Selection Factors for Production Line Power Supply
Beyond capacity, these 4 factors (refined from GNEE's 1,200+ load analysis projects) ensure you choose the right transformer:
1. Calculate Load Factor Accurately
Load Factor Formula: (Total Daily Energy Consumption in kWh) ÷ (24 × Transformer Rated Capacity in KVA)
Target Load Factor: 60-85% (optimal for efficiency and lifespan).
For example:
If your production line uses 11,232 kWh/day: 11,232 ÷ (24 × 630) = 0.75 (75% load factor for 630 KVA)
11,232 ÷ (24 × 800) = 0.59 (59% load factor for 800 KVA)-630 KVA is more efficient here.
2. Consider Machinery Startup Current
Induction motors (e.g., pumps, conveyors) have startup currents 3-5x their rated current. If your production line has multiple large motors starting simultaneously, the transformer must handle this surge-800 KVA's higher capacity is more resilient to these spikes.
3. Evaluate Energy Efficiency Goals
If your factory prioritizes carbon reduction or low energy bills, the 630 KVA's lower no-load and load losses are advantageous-especially if the production line has frequent downtime (e.g., batch production).
For 24/7 operations, the 800 KVA's efficiency at high loads (≥70%) closes the gap.
4. Check Installation & Maintenance Feasibility
- 630 KVA: Easier to transport, install, and maintain in tight spaces-ideal for factories with limited access to heavy machinery.
- 800 KVA: Requires larger crane capacity (≥10 tons) and more ventilation-ensure your facility meets these requirements before selection.
Why Choose GNEE for Production Line Transformers?
Industrial production lines demand transformers that are reliable, efficient, and tailored to your workflow-and GNEE's expertise ensures you get exactly that:
- Industrial-Focused Experience: 18 years of designing oil cooled transformers for production lines, with deep knowledge of manufacturing load patterns (e.g., startup surges, 24/7 operation).
- Customization Capabilities: Our engineering team (15 IEC-certified industrial power specialists) can adjust voltage ratios, cooling modes, or dimensions to match your specific production line needs.
- Global Compliance: Our transformers meet ISO 9001, IEC 60076, and regional industrial standards (UL, CE, CCC)-ensuring compatibility with your factory's existing equipment.
- End-to-End Support: We offer free load analysis (to help you choose between 630 KVA and 800 KVA), on-site installation guidance, and a 2-year warranty (extended to 3 years with maintenance contracts)-minimizing production downtime risks.
Conclusion
Choosing between a 630 KVA and 800 KVA oil cooled power transformer hinges on your production line's current load demands, future growth plans, and operational constraints. The 630 KVA model excels in cost-efficiency, space-saving, and stable moderate loads, while the 800 KVA delivers resilience for high peaks, 24/7 operation, and expansion.
Don't leave this critical decision to guesswork-leverage GNEE's 18 years of industrial expertise. Explore our 630 KVA oil cooled transformer and 800 KVA oil cooled transformer product lines, then contact us today for a free custom load analysis and personalized recommendation to optimize your production line's power supply.
