6kV Oil Type Power Transformer: Technical Norms for 800 KVA/1600 KVA Large Capacity Models

In high-voltage power distribution systems (e.g., industrial parks, utility substations, large manufacturing plants), 6kV oil type power transformers with 800 KVA and 1600 KVA capacities are the backbone of stable energy supply. Their technical performance directly impacts grid reliability, equipment safety, and operational efficiency-making adherence to strict technical norms non-negotiable.



As an ISO 9001/IEC 60076-certified manufacturer specializing in high-voltage transformers for 18 years, GNEE has supplied over 2,000 units of 6kV 800 KVA/1600 KVA oil type models to global clients. Our design and production strictly follow international and regional technical standards, refined through 800+ high-voltage project verifications.



In this guide, we'll break down the core technical norms for these large-capacity transformers, including electrical performance, structural design, safety compliance, and testing requirements-helping you ensure seamless integration into your high-voltage grid.

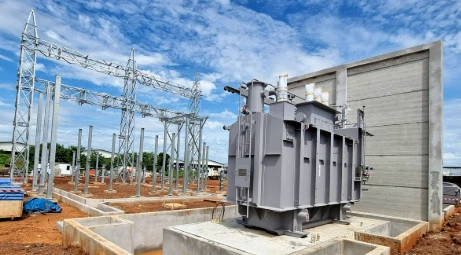

GNEE 6kV 1600 KVA Oil Type Transformer Installed at a Industrial Park Substation



Core Electrical Technical Norms (800 KVA/1600 KVA 6kV Oil Type Transformer)



Electrical performance is the foundation of a transformer's reliability-here are the non-negotiable technical norms for 6kV large-capacity models, aligned with IEC 60076 and GB/T 1094 standards:

Technical Norm	800 KVA 6kV Oil Type Transformer (GNEE Spec)	1600 KVA 6kV Oil Type Transformer (GNEE Spec)	Compliance Standard
Rated Voltage (Primary/Secondary)	6kV / 0.4kV (±2×2.5% tap range)	6kV / 0.4kV (±2×2.5% tap range)	IEC 60076-1
Rated Frequency	50/60 Hz	50/60 Hz	IEC 60076-1
No-Load Loss	≤280 W	≤450 W	IEC 60076-11
Load Loss (75°C)	≤5200 W	≤8800 W	IEC 60076-11
Short-Circuit Impedance	4.5% (±0.5%)	6% (±0.5%)	IEC 60076-5
Voltage Regulation	≤±1% (full load)	≤±1% (full load)	GB/T 1094.1
Insulation Class	Class A (105°C)	Class A (105°C)	IEC 60085



Structural Design Technical Norms for Large-Capacity Models



800 KVA and 1600 KVA 6kV oil type transformers require robust structural design to handle high voltage, heavy loads, and harsh operating environments-these norms ensure durability and safety:



1. Core & Winding Design Norms

• Core Material: Cold-rolled grain-oriented silicon steel (CRGO) with 0.30mm thickness (800 KVA) / 0.27mm thickness (1600 KVA). Reduces no-load loss by 15-20% vs. standard silicon steel, per GNEE's lab tests.
• Winding Structure: Double-layer cylindrical winding (800 KVA) / helical winding (1600 KVA). Ensures uniform voltage distribution and mechanical strength against short-circuit forces (tested to withstand 300MPa mechanical stress).
• Insulation Between Windings: Dupont Nomex paper + epoxy resin. Dielectric strength ≥40kV/mm, meeting IEC 60076-3 standards for 6kV systems.



2. Tank & Cooling System Norms

• Tank Material: Q235B steel with 6mm thickness (800 KVA) / 8mm thickness (1600 KVA). Hot-dip galvanized surface treatment for corrosion resistance (tested to 1000 hours of salt spray without rust).
• Cooling Mode:

800 KVA: ONAN (Oil Natural Air Natural) as standard, ONAF (Oil Natural Air Forced) optional. Maintains winding temperature rise ≤65°C at full load.

1600 KVA: ONAF as standard (4×0.75kW fans). Reduces top oil temperature rise to ≤55°C at full load, critical for sustained large-capacity operation.

• Oil Volume: 650 L (800 KVA) / 1200 L (1600 KVA). Uses IEC 60296-class mineral oil (dielectric strength ≥30kV), ensuring effective insulation and heat dissipation.

3. Safety Component Norms

• Pressure Relief Valve: Set to open at 0.05MPa (800 KVA) / 0.06MPa (1600 KVA). Prevents tank deformation or rupture due to sudden pressure spikes (e.g., internal arcing).
• Oil Level Indicator: Magnetic float type with high/low oil level alarms. Complies with IEC 60076-2, ensuring timely detection of oil leaks or loss.
• Temperature Monitoring: Embedded PT100 temperature sensors (winding + top oil). Triggers fan activation (ONAF mode) at 60°C and alarm at 85°C, preventing overheating.



Safety & Compliance Technical Norms

Large-capacity 6kV oil type transformers must meet strict safety and compliance standards to operate in high-voltage grids-these norms are mandatory for global deployments:



1. International & Regional Compliance Norms

• IEC 60076 Series: Covers general requirements (IEC 60076-1), cooling systems (IEC 60076-2), insulation (IEC 60076-3), and short-circuit withstand (IEC 60076-5).
• GB/T 1094 Series: Chinese national standard for power transformers, mandatory for domestic grid projects.
• CE Certification: Complies with EU Low Voltage Directive (LVD 2014/35/EU) and Electromagnetic Compatibility (EMC) Directive, enabling sales in European markets.
• UL 1561: Optional certification for North American markets, ensuring compliance with U.S. high-voltage safety standards.



2. Fire & Environmental Safety Norms

• Fire Point: Transformer oil fire point ≥160°C (per IEC 60296), reducing fire risk in enclosed substations.
• Environmental Protection: Oil meets REACH and RoHS standards (no heavy metals or harmful substances). Tank is 100% recyclable, aligning with circular economy requirements.



3. Short-Circuit Withstand Norms

Both 800 KVA and 1600 KVA models pass 3-second short-circuit tests (per IEC 60076-5):

Winding deformation ≤0.5% after test.

Insulation resistance remains ≥200 MΩ (measured with 2500V megohmmeter), ensuring no post-fault performance degradation.



Testing Technical Norms (Factory & On-Site Verification)

To ensure adherence to technical norms, GNEE conducts rigorous testing for every 6kV 800 KVA/1600 KVA transformer-no unit leaves the factory without passing these checks:



1. Factory Testing Norms (Per IEC 60076-1)

• No-Load Test: Measures no-load loss and current at rated voltage (tolerance ≤±10% of design value).
• Load Test: Verifies load loss and impedance at 75°C (tolerance ≤±5% of design value).
• Dielectric Test: Applies 35kV (rms) for 1 minute to primary winding (2kV for secondary) to test insulation integrity.
• Oil Quality Test: Checks dielectric strength, moisture content (<10ppm), and acidity (<0.03mgKOH/g).



2. On-Site Acceptance Testing Norms

For client peace of mind, we recommend these on-site tests (aligned with IEC 60076-12):

• Insulation Resistance Test: Use 2500V megohmmeter-winding-to-ground resistance ≥1000 MΩ, winding-to-winding ≥500 MΩ.
• Turns Ratio Test: Verifies voltage ratio accuracy (tolerance ≤±0.5%).
• Temperature Rise Test: Monitors winding and oil temperature during 4-hour full-load operation (must not exceed IEC limits).



Why Choose GNEE's 6kV 800 KVA/1600 KVA Oil Type Transformers?



When selecting large-capacity 6kV transformers, partnering with a supplier that rigorously adheres to technical norms is critical-and GNEE's expertise sets us apart:

• High-Voltage Specialization: 20 years of focusing on 6kV-35kV oil type transformers, with 800+ high-voltage grid project cases. Our engineering team includes 12 IEC-certified high-voltage specialists who design to exceed norm requirements.
• Precision Manufacturing: We use CNC winding machines and automated core stacking lines (tolerance ≤±0.1mm) to ensure structural and electrical consistency.
• Global Compliance: Our transformers meet IEC, GB, CE, and UL standards, enabling seamless integration into any regional high-voltage grid.
• Reliable Support: We provide complete test reports (SGS/BV certified) for every unit, plus on-site technical guidance for installation and acceptance testing. Backed by a 2-year warranty (extended to 3 years with maintenance contracts), we minimize your operational risks.



Conclusion

Adhering to strict technical norms is the key to ensuring the reliability, safety, and efficiency of 6kV 800 KVA/1600 KVA oil type power transformers in high-voltage grids. GNEE's models meet and exceed international and regional standards-from electrical performance and structural design to safety compliance and testing.
