630 KVA Oil Cooled vs 800 KVA Oil Filled Transformer: Heat Dissipation Performance Analysis
Jan 28, 2026
Leave a message
In medium-capacity power distribution systems, understanding the 630 KVA oil cooled vs 800 KVA oil filled transformer heat dissipation performance is essential for safe operation and long-term reliability. During system design and equipment selection, both the 630 KVA oil cooled transformer and the 800 KVA oil filled transformer are widely applied, but their cooling efficiency, thermal margin, and load adaptability differ significantly.
As a professional manufacturer, GNEE provides a clear heat dissipation performance analysis to help customers make the right selection.
Who We Are – Manufacturer of Oil Cooled & Oil Filled Transformers
GNEE is a professional manufacturer and global supplier of oil cooled and oil filled power transformers, serving industrial and utility projects since 2008. We produce both 630 KVA oil cooled transformers and 800 KVA oil filled transformers, offering stable quality, standardized testing, and professional technical guidance for transformer selection.
Why GNEE:
- Factory-direct manufacturing & testing
- IEC / ANSI / GB standards compliance
- Wide capacity range oil immersed transformers
- Professional thermal & cooling analysis support

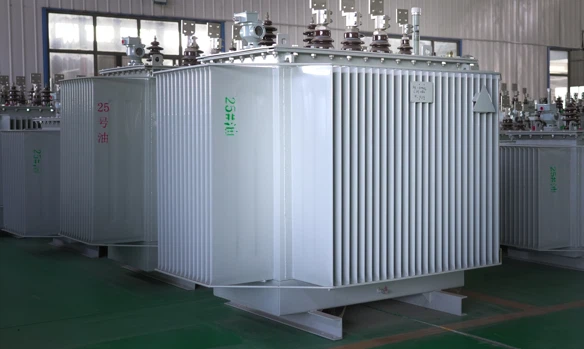

GNEE factory manufacturing oil cooled and oil filled transformers
Heat Dissipation Design of 630 KVA Oil Cooled Transformer
Oil Cooled Structure of 630 KVA Oil Cooled Transformer
The 630 KVA oil cooled transformer typically adopts ONAN (Oil Natural Air Natural) cooling. Heat generated by the windings is transferred to transformer oil, which circulates naturally and dissipates heat through radiator fins.
Thermal Performance of 630 KVA Oil Cooled Transformer
Under rated conditions, the 630 KVA oil cooled transformer provides stable heat dissipation for medium loads. However, cooling efficiency depends heavily on ambient temperature and natural airflow, limiting its thermal margin under long-term high-load operation.
Natural oil and air cooling radiators of 630 KVA transformer
Heat Dissipation Design of 800 KVA Oil Filled Transformer
Oil Filled Cooling System of 800 KVA Oil Filled Transformer
The 800 KVA oil filled transformer features a larger oil volume and expanded radiator surface area, enhancing heat transfer efficiency. Oil acts as both an insulating and cooling medium, ensuring better temperature control.
Thermal Stability of 800 KVA Oil Filled Transformer
Compared with 630 KVA units, the 800 KVA oil filled transformer offers improved thermal stability and a higher allowable continuous load ratio, making it suitable for applications with higher or fluctuating load demand.
Heat Dissipation Performance Comparison: 630 KVA vs 800 KVA Transformers
Cooling Efficiency Comparison
- 630 KVA Oil Cooled Transformer: Relies on natural convection, moderate heat dissipation
- 800 KVA Oil Filled Transformer: Larger oil capacity and radiator area provide stronger heat dissipation
Temperature Rise & Load Margin Comparison
The 800 KVA oil filled transformer maintains lower winding and oil temperatures under similar load conditions, allowing higher continuous operation and better overload tolerance than the 630 KVA oil cooled transformer.
Application-Based Heat Dissipation Selection
When to Choose 630 KVA Oil Cooled Transformer
Recommended for:
- Stable medium-load distribution systems
- Moderate ambient temperature environments
- Applications with limited space and lower capacity demand
When to Choose 800 KVA Oil Filled Transformer
Recommended for:
- Higher load or expanding systems
- Industrial applications with load fluctuation
- Environments requiring stronger thermal stability
Technical Parameters Comparison Table
| Parameter | 630 KVA Oil Cooled Transformer | 800 KVA Oil Filled Transformer |
|---|---|---|
| Rated Capacity | 630 kVA | 800 kVA |
| Cooling Method | ONAN | ONAN |
| Oil Volume | Standard | Larger |
| Radiator Area | Standard | Expanded |
| Continuous Load Ratio | ≤ 80% | ≤ 85% |
| Overload Capability | Moderate | Strong |
| Typical Application | Medium-load distribution | Higher-load distribution |
| Standards | IEC / ANSI / GB | IEC / ANSI / GB |
Why GNEE Provides Reliable Heat Dissipation Solutions
GNEE not only manufactures transformers but also provides professional heat dissipation analysis and capacity matching services. Whether choosing a 630 KVA oil cooled transformer or an 800 KVA oil filled transformer, our engineers ensure optimal thermal performance and long-term reliability.
What GNEE offers:
- Cooling system evaluation
- Load and ambient condition analysis
- Customized transformer design
- Competitive factory pricing
Conclusion: Heat Dissipation Performance Comparison for Smart Selection
A clear heat dissipation performance analysis between 630 KVA oil cooled vs 800 KVA oil filled transformer is critical for selecting the right power distribution solution. Proper cooling directly affects transformer reliability, service life, and operating safety. As an experienced manufacturer, GNEE delivers optimized oil cooled and oil filled transformer solutions with professional technical support.
👉 Contact GNEE today for expert advice and a competitive quotation on your transformer project.
