1000kVA Dry Type Transformer for Data Center, Hospital & High-Rise Buildings
As a premier professional manufacturer with decades of expertise, GNEE specializes in delivering high-performance power solutions globally. Our flagship 1000kVA Dry Type Transformer is engineered specifically for environments where safety, space, and reliability are non-negotiable.
Whether you are managing a high-density data center, a life-saving medical facility, or a modern skyscraper, our Three-Phase Dry-type Transformer technology provides a maintenance-free, fire-resistant, and highly efficient power distribution core.
As leading cast resin dry type transformer manufacturers, GNEE ensures every unit meets rigorous international standards (IEC/IEEE) to guarantee long-term operational stability.

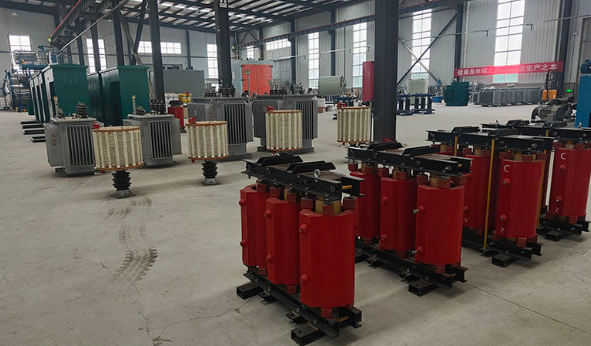

A wide-angle shot of the GNEE state-of-the-art transformer production line and workshop
Why GNEE is a Leading Cast Resin Dry Type Transformer Manufacturer
Choosing the right partner for your power infrastructure is critical. GNEE stands out as a top-tier cast resin dry type transformer manufacturer because we integrate advanced R&D with precision manufacturing. Our production facility utilizes automated winding machines and vacuum casting equipment to create a superior Three-Phase Cast Resin Transformer that resists moisture, dust, and environmental contaminants.
Our commitment to quality means that every cast resin power transformer undergoes a series of strict tests, including partial discharge tests, impulse voltage tests, and temperature rise assessments. By controlling the entire supply chain, we offer competitive factory-direct pricing without compromising the technical integrity required for critical applications like hospitals and data centers.
Key Technical Benefits of a Three-Phase Dry-type Transformer
The 1000kVA Dry Type Transformer is designed with the "Cast Resin" technique, where the H.V. and L.V. coils are encapsulated in an epoxy resin under vacuum. This makes the cast coil dry type transformer virtually maintenance-free and highly resistant to short circuits.
Fire Safety: Unlike oil-filled units, the cast resin type transformer is self-extinguishing and non-flammable, making it the only choice for indoor high-rise buildings.
Environmental Durability: The dry cast resin transformers produced by GNEE are moisture-proof, allowing them to operate in 100% humidity environments without pre-drying.
Space Efficiency: The compact design of our Indoor Three-Phase Transformer allows for a smaller footprint, saving valuable real estate in urban high-rise construction.
Why Cast Resin Distribution Transformers are Essential for Critical Infrastructure
For data centers and hospitals, power continuity is a matter of survival. A cast resin distribution transformer provides the localized power step-down required with minimal risk of leakage or explosion. In data centers, where harmonic loads are high, our dry core transformer designs are optimized to handle non-linear loads while maintaining a low temperature rise.
In hospitals, the Low Loss Dry-type Transformer ensures that sensitive diagnostic equipment (like MRI and CT scanners) receives stable, clean power. Furthermore, our transformers operate with significantly reduced noise levels, ensuring a quiet environment for patient recovery.

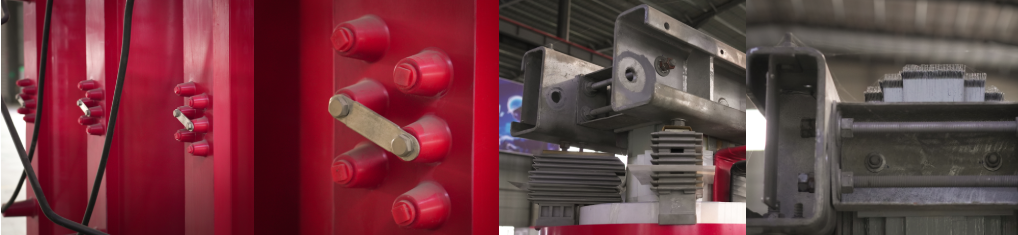

Close-up of the 1000kVA cast resin transformer
Energy efficiency is a primary concern for modern building managers. GNEE's Low Loss Dry-type Transformer series utilizes high-permeability cold-rolled grain-oriented silicon steel sheets for the core. This reduces no-load losses and improves the overall efficiency of the dry distribution transformer.
By reducing the energy wasted as heat, our clients in the commercial sector see a direct reduction in cooling costs and utility bills. Our cast resin power transformer is not just a piece of equipment; it is a long-term investment in sustainability and operational cost reduction.
Specifications and Parameters of the 1000kVA Dry Type Transformer
To help you select the right unit for your project, here are the technical specifications for our standard 1000kVA Dry Type Transformer:
| Feature | Specification |
| Rated Capacity | 1000 kVA |
| Transformer Type | Three-Phase Cast Resin Transformer |
| Input Voltage (HV) | 6kV, 10kV, 11kV, 20kV, 33kV (Customizable) |
| Output Voltage (LV) | 0.4kV, 0.415kV, 0.48kV |
| Frequency | 50Hz / 60Hz |
| Cooling Method | AN (Air Natural) / AF (Air Forced) |
| Insulation Class | Class F / Class H |
| Vector Group | Dyn11 / Yyn0 |
| Short Circuit Impedance | 4% - 6% |
| Enclosure Rating | IP00, IP20, IP23 (Customizable) |
| Standards | IEC 60076, GB/T 10228 |
Custom Solutions: Indoor Three-Phase Transformer Designs
Every project has unique constraints. GNEE provides tailored Indoor Three-Phase Transformer solutions, including customized dimensions for tight basement entries in high-rise buildings and specialized enclosures for harsh industrial environments. Our engineering team works closely with your technical department to ensure the Three-Phase Dry-type Transformer integrates perfectly with your existing switchgear and LV distribution boards.
Whether you need a cast coil dry type transformer with specific tapping ranges or a unit with an advanced digital temperature monitoring system, GNEE has the expertise to deliver.
Maintenance and Longevity of Dry Distribution Transformers
The Dry distribution transformer is favored by facility managers because it eliminates the need for oil testing, filtration, or fire wall construction. Because GNEE uses high-grade insulation materials in our dry cast resin transformers, the life expectancy of our units often exceeds 20-30 years with minimal intervention.
Regular inspections involve simple dust removal and checking bolt tightness, making the cast resin type transformer the most cost-effective solution over its entire lifecycle. When you buy from GNEE, you are buying a "fit and forget" solution backed by our comprehensive global warranty and technical support.
Conclusion: Get a Quote for Your 1000kVA Dry Type Transformer Today
In the demanding worlds of medical care, data processing, and urban development, your power infrastructure is the foundation of your success. GNEE is proud to offer the 1000kVA Dry Type Transformer as the ultimate solution for those who refuse to compromise on safety or efficiency.
As a trusted manufacturer of the Three-Phase Dry-type Transformer, we are ready to support your next project with world-class engineering and factory-direct pricing.
Are you ready to upgrade your power system with a reliable, Low Loss Dry-type Transformer?
[CONTACT US TODAY] to receive a free technical consultation and a competitive quote. Our team of experts is standing by to help you choose the perfect cast resin distribution transformer for your specific needs. Don't leave your power to chance-choose GNEE for excellence in transformer manufacturing.
What common quality defects occur during the production of 1000kVA cast resin dry type transformer?
Common defects include epoxy cracks, bubbles, high partial discharge, uneven winding, loose core, and over-temperature rise. These are mainly caused by poor vacuum casting, insufficient curing, or unqualified raw materials. Our epoxy cast dry type transformers adopt vacuum pressure casting to ensure no cracks, low partial discharge, and stable performance.
Why do some 1000kVA dry type transformers have high no-load loss and noise?
High loss and noise result from low-grade silicon steel sheet, improper core lamination, loose clamping, or uneven winding tension. We use high-quality cold-rolled grain-oriented silicon steel and precision assembly to control loss and noise within IEC standards.
What damages may happen during transportation of 1000kVA dry type transformer?
Vibration and collision may cause loose fasteners, core displacement, winding deformation, or epoxy surface damage. We use fixed shipping base, overall packaging, and pre-delivery testing to ensure safe transportation.
Can 1000kVA cast resin dry type transformer be placed horizontally during transport?
No. Horizontal placement may damage winding insulation and internal structure. It must be transported vertically with clear lifting and upright marks.
What are the key installation requirements for 1000kVA dry type transformer?
It needs a level, firm concrete foundation, sufficient ventilation space, safe distance from walls and barriers. Poor installation will lead to vibration, noise and overheating.
Can 1000kVA epoxy cast dry type transformer be installed outdoors directly?
Standard cast resin dry type transformer is for indoor use. Outdoor installation requires an IP54/IP56 enclosure for rainproof, sun protection and ventilation.
