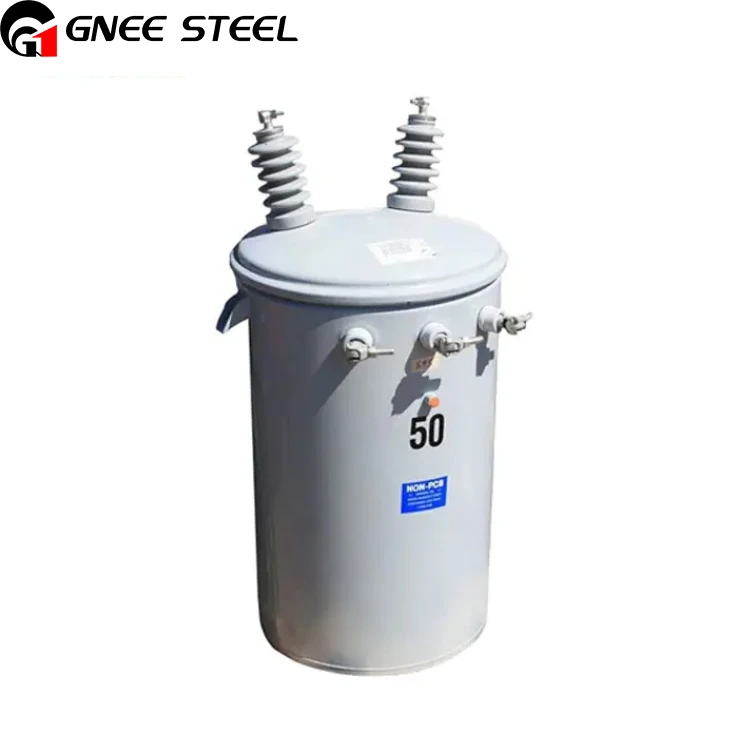

Single-Phase Pole Transformer 50kVA 7200/240V

Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of single-phase pole transformer 50kva 7200/240v in China, also supports customized service with low price. Welcome to buy discount single-phase pole transformer 50kva 7200/240v for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

Product video

Product Introduction

Single - phase pole - mounted transformers function as distribution transformers in decentralized power supply distribution networks. They offer numerous advantages. For instance, they shorten the length of low - voltage distribution lines, thereby reducing losses and enhancing power supply efficiency.

These dist transformers are designed with a high - efficiency and energy - saving wound core structure. They are installed in a pole - type suspension manner, boasting a small volume and requiring a low capital investment. Moreover, they shorten the low - voltage power supply radius and can reduce low - voltage line losses by over 99%.

With a fully - sealed structure, these liquid filled distribution transformers have a strong overload capacity, high reliability during continuous operation, and are easy to maintain.

Product component

Scope of supply

Type: Single-Phase, Overhead Type, Pole Mounted Mild Steel Distribution Power Transformers

Capacity: 50kVA

Nominal Voltage Ratio: 7200/240V

BIL of Primary Winding: 95kV

BIL of Secondary Winding: 30kV

Cooling Method: Oil Filled

Bushings: Porcelain

Full Capacity high voltage winding taps are required.

Tap Configuration: One at rated voltage – nominal tap; Four – 2 ½"taps below rated voltage

The output oil power and distribution transformer on electric pole's impedance voltage shall not exceed 2.5%

Pole transformer shall have Support Lugs (mounting brackets)

Technical data sheet

Product Parameters

Single-Phase Pole Transformer 50kVA 7200 240V Design

Design and Manufacturing Standards, and Rated Capacity

Liquid filled power transformers shall be designed and manufactured in accordance with ANSI C57.12.00 and ANSI C57.12.20. Their rated capacities shall be one of the following values: 50, 75, 100, 167, 250, 333 kVA. Hermetically sealed distribution transformers rated at 50 kVA and 75 kVA shall be equipped with support lugs (mounting brackets). Single phase pole mounted transformers rated at 100 kVA and above shall not be equipped with support lugs.

Primary Voltage Parameters

The rated voltage ratio of the oil type distribution transformer shall be 7200/240 V, and the basic insulation level (BIL) of the primary winding shall be 95 kV.

Secondary Voltage Parameters

The secondary winding shall have a centre tap, and its basic insulation level (BIL) shall be 30 kV.

Tap Changer Configuration

Outdoor low voltage transformers shall be equipped with full - capacity high - voltage winding taps. The tap changer shall be installed on the outer surface of the single-phase pole transformer 50kVA 7200/240V tank and be manually operable. The step down electrical power transformer tap configuration is as follows:

 One tap at rated voltage (nominal tap).

 Four taps 2.5% below rated voltage.

Impedance Voltage Requirement

The impedance voltage of the small distribution transformer shall not exceed 2.5%.

Annual Equivalent Cost Calculation

The total annual equivalent cost of single pole transformers will be used for ranking and scoring in the price assessment criteria. Each manufacturer shall submit the no - load loss and load loss data for each size of single pole transformer on electric pole (50, 75, 100, 167, 250, and 333 kVA) to calculate the total annual equivalent cost.

pole mounted 3 phase transformers display

single phase distribution transformer Bushings and Terminals

High - Voltage Bushings

There shall be two high - voltage bushings mounted on the top. The basic insulation level (BIL) of each bushing shall be 95 kV.

Low - Voltage Bushings

The low - voltage bushings (numbering three or four, including the centre tap) shall be made of porcelain.

Bushing Identification

Each bushing shall be identified with appropriate markings in accordance with ANSI C57.12.70.

High - and Low - Voltage Terminals

The high - voltage and low - voltage terminals shall comply with the requirements of ANSI C57.12.20.

about Gnee

Are pole transformers in the USA grounded to Earth?

Yes, pole mounted three phase transformers are typically grounded to Earth. This is a crucial safety and operational measure in electrical distribution systems for several reasons:

Safety protection: Grounding provides a path for fault currents to flow into the earth. In the event of insulation failure or other faults that cause the oil cooled small power transformer's casing to become energized, the grounding connection ensures that the casing voltage is kept close to zero. This protects people and equipment from electric shock hazards.

Voltage stability: It helps maintain the stability of the electrical system's voltage. By grounding the neutral point of the power transformer on pole, the potential of the neutral is fixed at the earth potential, which is important for ensuring balanced voltages in three - phase systems and preventing voltage fluctuations that could affect the operation of connected devices.

Fault detection and protection: Grounding allows for the detection and protection of faults in the electrical system. When a ground fault occurs, such as a phase - to - ground short circuit, the fault current flowing through the grounding path can be detected by protective relays. These relays can then trigger circuit breakers to quickly isolate the faulty section of the circuit, minimizing damage to the power supply distribution transformer and other equipment and preventing disruptions to the power supply.
