Electrical Transformer Core

Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of electrical transformer core in China, also supports customized service with low price. Welcome to buy discount electrical transformer core for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

Electrical transformer cores ensure efficient magnetic coupling between the windings.

What is an Electrical Transformer Core?

An electrical transformer core is the heart of a transformer, designed to efficiently channel magnetic flux between the primary and secondary windings. Made from thin layers of ferrous metal, often silicon steel, the silicon steel transformer core plays a crucial role in ensuring the effective transfer of electrical energy.

In a transformer, the Power Transformer Core is the structure around which the primary and secondary coils are wound. By using high-quality materials and advanced construction techniques, the transformer core reduces energy losses and maximizes performance.

The Function of a transformer steel core

The Transformer Iron Core's main job is to provide a low-resistance path for the magnetic flux that transfers electrical energy between the primary and secondary windings. When an electric current flows through the primary winding, it creates a magnetic field. This field induces current in the secondary winding, thus transferring energy.

Without a Magnetic Core, the magnetic flux would spread out in all directions and would be less effective at transferring energy. The iron core focuses and amplifies the magnetic flux, making the transfer of electrical energy far more efficient.

Think of it like this: Without a transformer core, the electromagnetic flux is like cars traveling along a winding dirt road-slow and inefficient. With a transformer core, it's like replacing that dirt road with a smooth interstate highway, allowing the flux to flow quickly and efficiently from the primary coil to the secondary coil.

Types of Transformer Cores

There are two main types we'll focus on–laminated, and wrapped (distributed gap) cores.

There are two main types of transformer cores:

Laminated Cores:

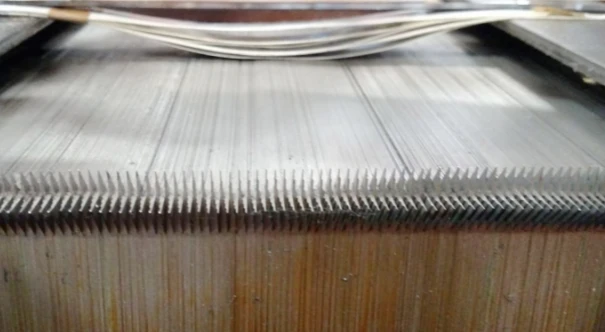

Laminated cores are the most common type, made from thin sheets of silicon steel that are stacked together. This construction reduces eddy current losses and improves efficiency.

The individual layers are insulated from each other to prevent energy loss due to induced currents in the core material.

Wrapped Cores,also called Distributed Gap Cores:

Wrapped cores, often used in specialized applications, feature a core material that is wound into a more flexible, distributed structure. These cores are designed to have controlled gaps to manage flux behavior for specific requirements.

Why Choose a High-Quality Transformer Core?

A transformer core made of high-quality electrical steel offers significant advantages in terms of performance, longevity, and energy efficiency. Here's why choosing the right transformer core is critical for your electrical transformer:

• Increased Efficiency: The core ensures that the magnetic flux is focused, reducing energy loss and improving power transfer efficiency. High-quality steel, such as Cold Rolled Grain Oriented (CRGO) steel, offers superior magnetic permeability, which further enhances performance.
• Reduced Losses: A good transformer core minimizes core losses like hysteresis loss and eddy current loss, which are common in less efficient designs. This means your transformer operates more efficiently, leading to lower energy consumption and reduced operational costs.
• Longer Lifespan: Using a well-designed core, built with durable materials, ensures that the transformer performs optimally over the long term with less maintenance.
• Compact Design: Efficient cores can make transformers more compact, saving space in applications where transformer size is a critical factor, such as in residential or commercial installations.
• Enhanced Safety: Proper magnetic coupling between the windings ensures stable operation and minimizes the risk of overheating, providing greater safety for both equipment and users.

Applications of Electrical Transformer Cores

Electrical transformer cores are essential components in many industries and applications, including:

Power Distribution: In both high-voltage and low-voltage power distribution systems, transformer cores ensure energy is efficiently transferred across the grid.

Industrial Equipment: Small oil-immersed and dry-type transformers used in machinery and industrial settings rely on high-performance cores for consistent and reliable power supply.

Commercial and Residential: Transformers used in homes, office buildings, and commercial spaces benefit from transformer cores to safely step down high voltages to usable levels.

Why Choose Us for Your Transformer Core Needs?

At GNEE STEEL, we specialize in providing high-quality transformer cores that are designed to meet the specific needs of your electrical transformer projects. Here's why we're the preferred choice for procurement professionals and engineers:

Premium Materials: We use the highest grade silicon steel to ensure optimal magnetic properties and energy efficiency.

Custom Solutions: Whether you need laminated cores for standard applications or custom-designed cores for specialized projects, we can meet your requirements.

Competitive Pricing: We offer cost-effective solutions without compromising on quality, helping you maximize your investment.

Reliable Lead Times: With our streamlined manufacturing process, we ensure fast delivery and on-time performance for your projects.

Expert Support: Our team of transformer core experts is available to assist you with technical advice, product specifications, and more to ensure you get exactly what you need.

Get in Touch Today!

If you're looking for high-quality transformer cores for your electrical transformer needs, look no further. Contact us today to request a quote, learn more about our products, or discuss your specific project requirements. Let us help you build a more efficient and reliable transformer system.
