CRGO Core

Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of crgo core in China, also supports customized service with low price. Welcome to buy discount crgo core for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

GNEE New Material Grain Oriented Silicon Steel

CRGO (Cold Rolled Grain-Oriented) core refers to a type of electrical steel that is specifically designed and processed for use in transformers and other magnetic devices.

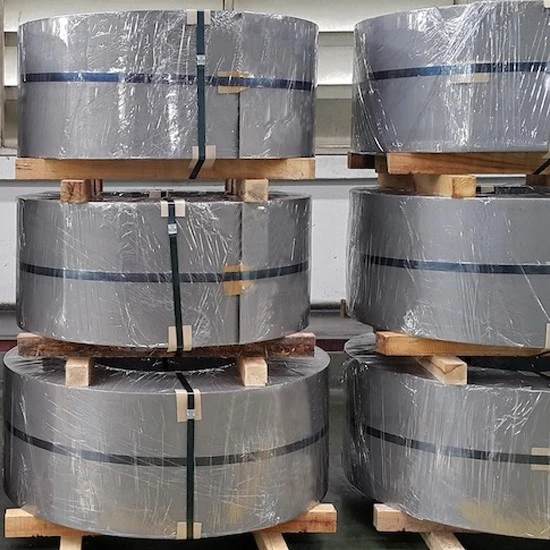

Cold Rolled Silicon Steel

Grain Orientation:

CRGO cores are made from electrical steel sheets that have a highly oriented grain structure. The grains are aligned in a specific direction, typically parallel to the rolling direction. This orientation enhances the magnetic properties of the material.

Reduced Core Losses:

One of the primary advantages of CRGO cores is their ability to minimize core losses in transformers. These losses, including hysteresis and eddy current losses, are reduced due to the oriented grain structure, which allows for efficient magnetization and demagnetization.

High Magnetic Permeability:

CRGO cores exhibit high magnetic permeability, meaning they can efficiently conduct magnetic flux. This property is crucial for the effective operation of transformers.

Low Core Losses at High Frequencies:

CRGO cores are designed to maintain low core losses even at high frequencies. This makes them suitable for applications where transformers operate at higher frequencies, such as in some power distribution systems.

Lamination:

CRGO sheets are typically laminated to minimize eddy current losses. Lamination involves stacking multiple thin sheets of CRGO with an insulating coating between them. This process interrupts the paths for circulating eddy currents, reducing energy losses.

Applications in Transformers:

CRGO cores are widely used in the cores of power transformers, distribution transformers, and other electrical devices where a highly efficient magnetic circuit is essential. Their low core losses contribute to the overall energy efficiency of transformers.

Thickness and Grades:

CRGO cores are available in different thicknesses and grades to meet the specific requirements of different transformer designs and applications. Thinner laminations are often preferred for higher efficiency.

High Saturation Flux Density:

CRGO cores typically have a high saturation flux density, allowing them to handle higher magnetic flux levels before reaching magnetic saturation.

Manufacturing Process:

The manufacturing process involves cold rolling of steel sheets followed by annealing to achieve the desired grain orientation. The annealing process helps relax the stresses introduced during cold rolling and further refines the magnetic properties.

Silicon Content:

CRGO steel has a higher silicon content compared to other types of steel, contributing to its magnetic properties. The silicon content is typically in the range of 3% to 4.5%.

Silicon Steel Customer Visit Case
