How to Install a 50kVA Dry-Type Transformer Easily?
Jan 30, 2026
Leave a message
Correct and efficient installation of a 50kVA Dry-Type Transformer is essential for ensuring safe operation, stable power output, and long service life. Thanks to its oil-free structure, dry-type transformers are easier to install than oil-immersed units-but proper on-site procedures are still critical.
This guide explains how to install a 50kVA dry-type transformer easily, providing a clear on-site operation workflow suitable for industrial, commercial, and infrastructure projects. As a professional manufacturer, GNEE supplies high-quality dry-type transformers with complete installation support.
Who We Are – GNEE Dry-Type Transformer Manufacturer
GNEE is a professional manufacturer of dry-type and oil-immersed transformers, serving industrial plants, commercial buildings, renewable energy projects, and public infrastructure worldwide. With strict quality control and compliance with IEC, ANSI, and GB standards, GNEE delivers 50kVA dry-type transformers designed for easy installation, reliable operation, and low maintenance.

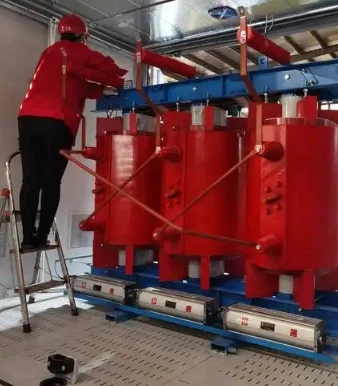

"GNEE factory inspection of dry-type transformers before delivery"
Pre-Installation Preparation for a 50kVA Dry-Type Transformer
Before installing a 50kVA dry-type transformer, basic preparation ensures smooth on-site operation and avoids unnecessary rework.
Preparation Checklist
- Verify nameplate data (capacity, voltage, frequency)
- Check for transport damage or loose components
- Confirm installation drawings and layout
- Prepare grounding system and protection devices
- Proper preparation significantly simplifies the installation process.
Foundation and Positioning of the 50kVA Dry-Type Transformer
A 50kVA dry-type transformer is compact and lightweight, making positioning relatively easy.
Positioning Requirements
- Flat and level concrete foundation or steel frame
- Adequate clearance for ventilation and maintenance
- Vibration isolation pads if required
- Indoor installation with good airflow
- Correct positioning supports effective cooling and long-term stability.

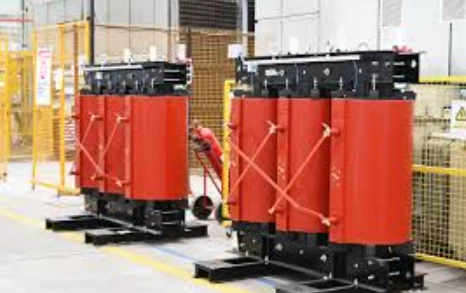

"Correct positioning of a 50kVA dry-type transformer on site"
Electrical Connection Steps for a 50kVA Dry-Type Transformer
Electrical connection is the most critical on-site operation for a 50kVA dry-type transformer.
Connection Procedure
- Confirm primary and secondary voltage ratings
- Identify terminals and phase sequence
- Tighten cable lugs to specified torque
- Install overcurrent and short-circuit protection
- Connect grounding conductor securely
- Accurate wiring ensures safe energization and stable performance.
Ventilation and Cooling Check for the 50kVA Dry-Type Transformer
Proper ventilation is essential for maintaining temperature limits of a 50kVA dry-type transformer.
Cooling Considerations
- Ensure unobstructed air inlet and outlet
- Maintain minimum clearance as per design
- Avoid installation near heat sources
- Optional temperature monitoring devices
- Good airflow prevents overheating and insulation aging.
Commissioning and Energization of a 50kVA Dry-Type Transformer
After installation, commissioning ensures the 50kVA dry-type transformer is ready for operation.
Commissioning Checklist
- Insulation resistance measurement
- Phase sequence verification
- No-load voltage test
- Visual and noise inspection
Only after all checks pass should the transformer be energized.
Technical Parameters of a 50kVA Dry-Type Transformer
| Parameter | Specification |
|---|---|
| Rated Capacity | 50 kVA |
| Transformer Type | Dry-Type Transformer |
| Phase | Three-phase |
| Cooling Method | AN |
| Rated Primary Voltage | 6kV / 10kV / 11kV |
| Rated Secondary Voltage | 0.4kV |
| Frequency | 50Hz / 60Hz |
| Insulation Class | F / H |
| Standards | IEC / ANSI / GB |
| Installation | Indoor |
Conclusion: Easy and Reliable Installation of a 50kVA Dry-Type Transformer
With proper preparation and clear on-site procedures, installing a 50kVA Dry-Type Transformer can be fast, safe, and efficient. Following standardized steps for positioning, wiring, ventilation, and commissioning ensures reliable operation and long service life.
As a professional manufacturer, GNEE provides high-quality 50kVA dry-type transformers with complete installation guidance and technical support.
