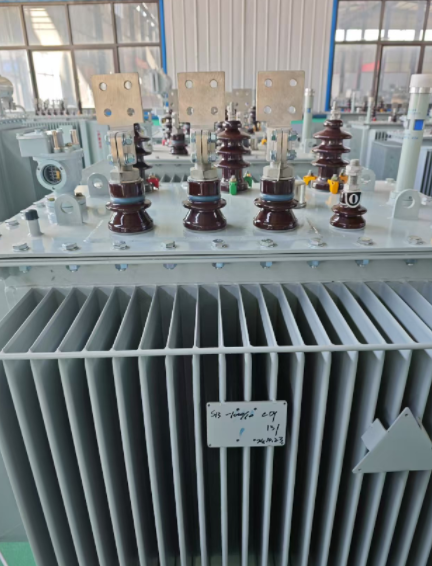

20kV Oil-immersed distribution transformer
Nov 10, 2025
Leave a message
S13 series fully sealed oil-immersed transformers are applicable to power systems with an ac 50Hz and rated working voltage of 20kV and below,as distribution transformers for petroleum,metallurgy,chemical industry,textile,light industry and other enterprises and places with large dust.
20kV Oil-immersed distribution transformer Key characteristics
Voltage conversion: Reduces 20kV or higher voltage to lower voltages suitable for consumers.
Efficiency: Engineered for high efficiency and low loss, saving on running costs.
Cooling and insulation: Uses insulating oil to cool the windings and dissipate heat, a process crucial for maintaining performance and reducing energy wastage.
Robust construction: Built with a corrosion-resistant tank and durable materials to ensure a long service life, even in demanding environments.
Protective features: Equipped with safety functions such as temperature, gas, and pressure protection, as well as a pressure relief valve.
Environmental suitability: The fully sealed design allows it to operate reliably in humid and dusty outdoor environments.
Applications: Widely used in urban and rural power grids for residential, commercial, and industrial distribution.
20kV Oil-filled transformer Specification
|
Rated capacity (kVA |
Voltage combinationand tap range |
Vector group symbo |
Non-load loss (VV |
Load loss (W) |
No-load current (%) |
Short circuit imp edance (%) |
||
|
High pressure (kV) |
High pressure tap range (%) |
Low pressure (kV) |
||||||
|
50 |
20 22 24 |
±5 ±2×2.5% |
0.4 |
Dyn11 Yyn0 |
170 |
1270/1210 |
2.00 |
6.5 |
|
100 |
230 |
2120/2020 |
1.80 |
6.5 |
||||
|
25 |
270 |
2500/2380 |
1.70 |
6.5 | ||||
|
160 |
290 |
2970/2830 |
1.60 |
6.5 |
||||
|
200 |
340 |
3500/3330 |
1.50 |
6.5 |
||||
|
250 |
410 |
4160/3960 |
1.40 |
6.5 |
||||
|
315 |
490 |
5010/4770 |
1.40 |
6.5 |
||||
|
100 |
580 |
6050/5760 |
1.30 |
6.5 | ||||
|
500 |
690 |
7280/6930 |
1.20 |
6.5 | ||||
|
630 |
830 |
8280 |
1.10 |
6.5 |
||||
|
800 |
980 |
9900 |
1.00 |
6.5 |
||||
|
000 |
1150 |
12150 |
1.00 |
6.5 |
||||
|
25( |
1410 |
14670 |
0.90 |
6.5 |
||||
|
1600 |
1700 |
17550 |
0.80 |
6.5 |
||||
Note:
1.slash the top of table load loss applicable to Dyn11 join groups,load loss slash Yyn0 below values apply to join the group.
2.other capacity product performance parameters,determined by the user in corsultation with the manufacturer.
Maintaining Oil Immersed Transformers
Routine maintenance is essential for keeping these units in optimal condition:
Oil Testing
Monitor for contaminants, moisture, and acidity regularly.
Cooling System
Inspect radiators, fans, and pumps to prevent overheating.
Winding Resistance Check
Regular resistance tests can detect early signs of wear.
Bushing Inspection
Ensure bushings are intact to avoid electrical discharge.
Choosing the Right Transformer for Your Needs
Oil immersed transformers offer unparalleled efficiency, cost-effectiveness, and reliability. They are ideal for outdoor, high-voltage industrial settings. However, if your application requires minimal environmental impact or a strictly indoor setup, a dry-type transformer may be better suited.
For expert recommendations tailored to your specific requirements, consult us to ensure you select the right transformer for your business.
