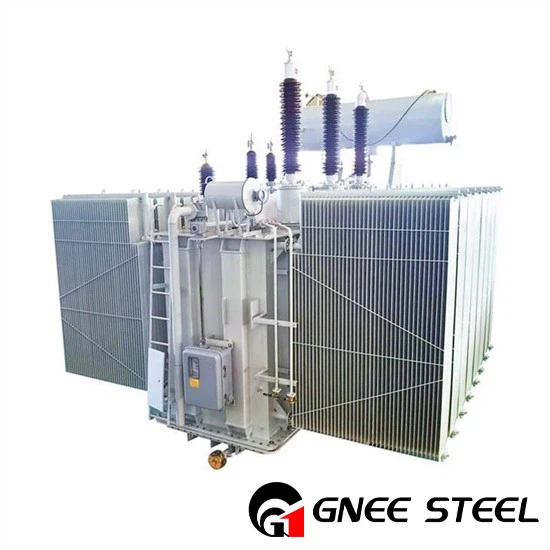

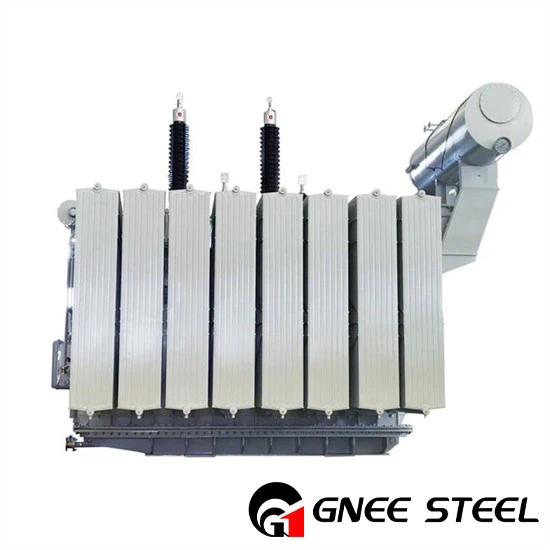

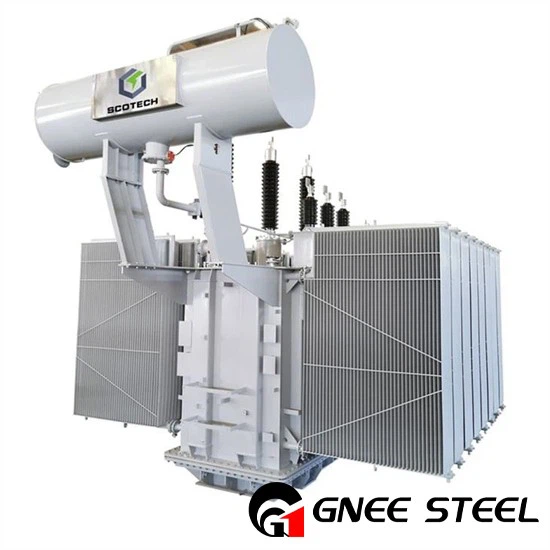

76 MVA Step Down 110 KV To 35 KV Three Phase Power Transformer

Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 76 mva step down 110 kv to 35 kv three phase power transformer in China, also supports customized service with low price. Welcome to buy discount 76 mva step down 110 kv to 35 kv three phase power transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

GNEE Steel Cold Rolled Grain Oriented Silicon Steel Transformer

Cold Rolled Silicon Steel Transformer Product Introduction
It's a step down transformer 110 kV to 35 kV, the primary voltage is 110 kV, the secondary voltage is 35 kV, the transformer is equipped with on load tap changer, the tapping range is ±8*1.25% at primary side, the cooling is ONAF. The vector group of this transformer is YNd11,which neutral bushing is in primary side. Current transformer with protection for neutral bushing.The material for HV and neutral bushing is OIP. our 76 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!

Technical Data Sheet

80 MVA oil type power transformer specifications and data sheet

76 MVA 110/35 kV Transformer Drawing

76 MVA power transformer diagram drawing and size.

Transformer Construction of the Core:

In general, the name associated with the transformer structure depends on how the primary and secondary windings are wound on the center laminated steel core. The two most common and basic designs of transformer structure are closed core transformer and shell core transformer.

In the "closed core" type (core type) transformer, the primary and secondary windings are wound outside the core ring. In a "shell" (shell) transformer, the primary and secondary windings pass through a steel magnetic circuit (core), which forms a shell around the windings, as shown below.

Grain Oriented Electrical Steel for Transformer
