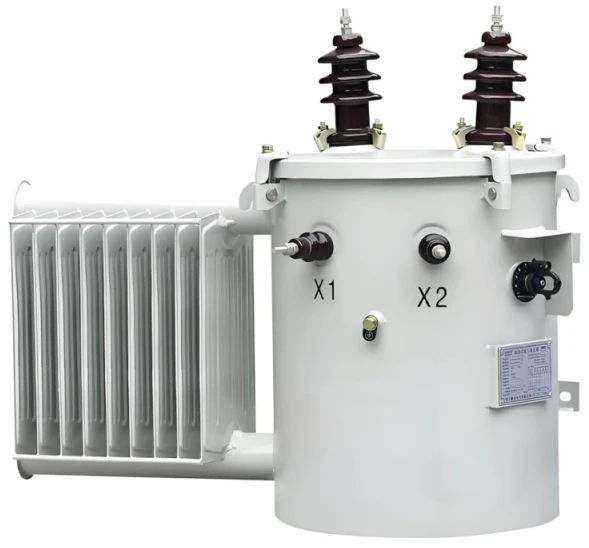

High Reliability Single Phase Pole Mounted Transformer
Description
Technical Parameters
Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of high reliability single phase pole mounted transformer in China, also supports customized service with low price. Welcome to buy discount high reliability single phase pole mounted transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.
Product Introduction
The appearance of this single phase pole transformer is exquisite, having undergone comprehensive polishing and rust removal, and utilizing powder electric spraying technology along with a wide - sheet heat sink to ensure the coating lasts long without fading. In terms of design, it features a leak - free structure, with the sealing element crafted from acrylic material through one - time molding technology, and is subjected to positive and negative pressure leak testing before leaving the factory for reliable quality. Moreover, it adheres to safety and environmental protection standards. The materials and processes comply fully with relevant requirements, emitting no toxic gases, producing low smoke during combustion, being non - corrosive, and environmentally friendly.
If you'd like more information regarding pole mounted transformers, contact our team via sales@gneesteels.com.
Product video

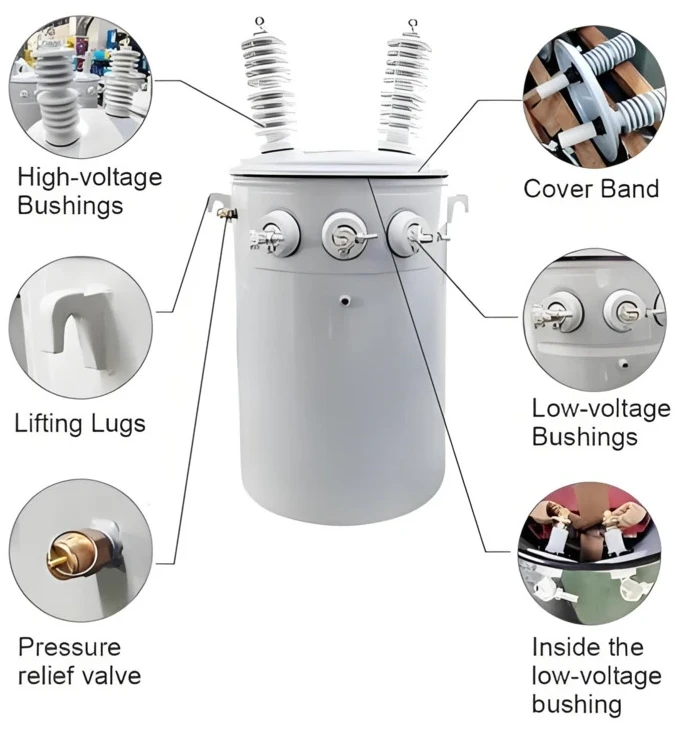

Product Structure
Technical specification
Main parameters:
Voltage level: High voltage side 5Kv-35kv, low voltage side 0.2kV-0.69kv
capacity range: 5kVA-500kVA
Cooling method: Oil immersed self cooling (ONAN)
Product Features Of High Reliability Single Phase Pole Mounted Transformer
Low Loss Design:
Employing a novel iron core and an optimized winding structure, this single pole transformer cuts the no - load loss of traditional models by over 20% and the load loss by more than 10%. This significantly boosts energy efficiency, making it a more cost - effective and eco - friendly choice.
Quiet Operation:
Utilizing top - grade silicon steel sheets and an optimized magnetic circuit design, it reduces noise levels substantially. This makes it well - suited for modern urban and residential areas, where noise pollution needs to be minimized for a comfortable living and working environment.
High Reliability:
The winding and body are meticulously engineered to resist short - circuits effectively. High - quality insulation materials and heat - resistant transformer oil are used, ensuring safe and stable operation over an extended lifespan. This reliability reduces the need for frequent maintenance and replacement, saving both time and costs.
Environmental Protection and Energy Conservation:
The insulation oil is a pollution - free and recyclable environmentally friendly type. Additionally, the product's materials are recyclable. With excellent sealing performance, there's no leakage, and it requires no maintenance. This aligns with global environmental protection trends and sustainable development goals.
Rigorous Quality Inspection:
Before leaving the factory, the high reliability single phase pole mounted transformers are rigorously tested in accordance with national standards GB6450 - 1986 and IEC 60076. Tests cover crucial aspects like partial discharge, lightning impulse, and noise. Such comprehensive inspection procedures guarantee the product's high quality and reliability, providing users with peace of mind.
Certifcations
FAQ
Q: What are pole mounted transformers?
A: Pole-mounted transformers are electrical devices mounted on utility poles. They step down high-voltage electricity from power lines to lower voltages (like 120/240V) for residential, commercial, or rural use. Typically oil-immersed for insulation and cooling, they're compact, easy to install, and widely used in overhead power distribution systems.
Q: What is the difference between pole mounted and pad-mounted transformers?
A: Pole-mounted transformers are ideal for overhead power lines in low-to-moderate load areas (e.g., homes, small businesses) where vertical space is available.
Pad-mounted transformers are better suited for ground-level installations in areas with high demand, limited overhead space, or safety/accessibility concerns (e.g., busy streets, industrial parks).
Q: How many kVA is a pole mounted transformer?
A: The capacity of pole - mounted transformers varies widely depending on their design and application.
Single - phase transformers usually have a capacity ranging from a few kVA to several hundred kVA. Three - phase pole - mounted transformers can support much higher capacities, sometimes exceeding 1,000 kVA.
In practical applications, common capacities for pole - mounted transformers are 5 kVA, 10 kVA, 20 kVA, 50 kVA, 100 kVA, 167 kVA, 250 kVA, 315 kVA, etc.
Additionally, Gnee offers pole - mounted transformers with capacities ranging from 10 kVA to 500 kVA. Should you require further details, our team is available at sales@gneesteels.com to provide personalized support.
