Combined Transformer (American Box Type Transformer)
Description
Technical Parameters
Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of combined transformer (american box type transformer) in China, also supports customized service with low price. Welcome to buy discount combined transformer (american box type transformer) for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

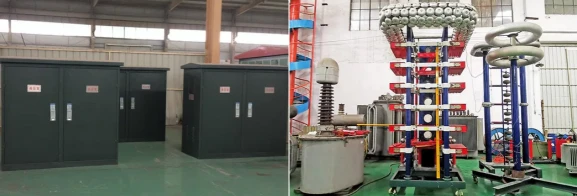

combined transformer Description
The combined transformer, also known as the American-style pad-mounted transformer, is a complete set of power transformation and distribution equipment that integrates power receiving, power feeding, transformers and other components. It can either place the transformer body, high-voltage load switch, protective fuses and other equipment in the same oil tank (i.e., the common-tank type) or put the pad mounted transformer body and high-voltage load switch protective fuses and other equipment in two oil tanks isolated from each other (i.e., the separate-tank type). Therefore, it features a small volume and a compact structure.
American-style pad-mounted transformer video

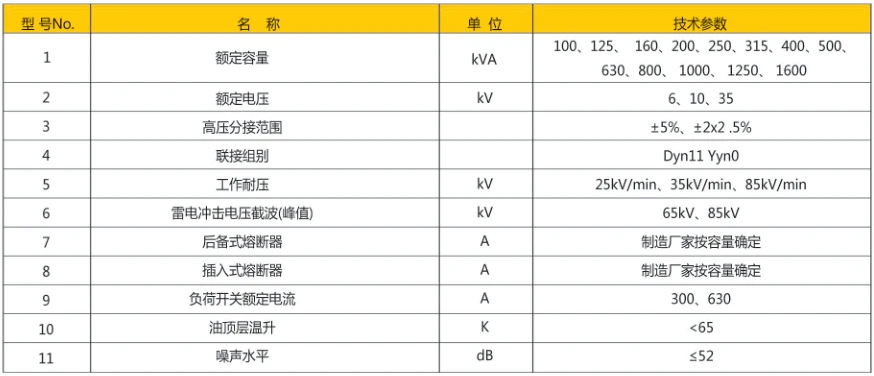

combined transformer (American box type transformer) parameter
| Gnee Electric can provide the following types of combined transformer (American box type transformer): | |
| 100 KVA pad mounted transformer | 500 KVA combined transformer |
| 125 KVA American box pad mounted transformer | 630 KVA pad mounted transformer |
| 160 KVA American box transformer | 800 KVA American box pad mounted transformer |
| 200 KVA combined American box transformer | 1000 KVA American box-type transformer |
| 250 KVA American-style box transformer | 1250 KVA American box transformer |
| 315 KVA American box three phase pad mounted transformer | 1600 KVA combined American box transformer |
| 400 KVA American box type combined transformer | |

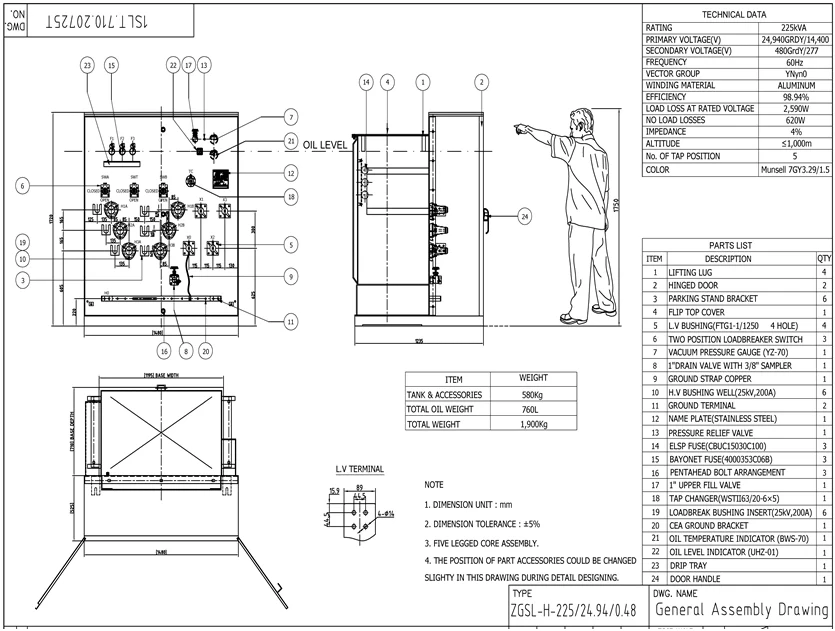

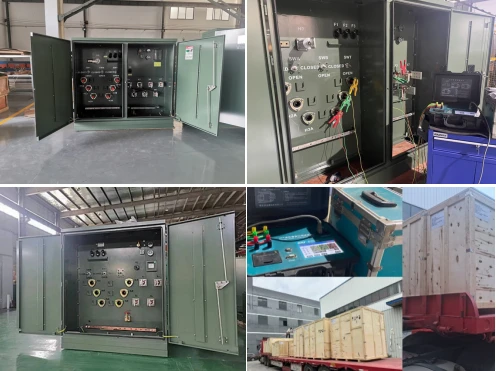

pad-mounted transformer Product Structure
1.Safety Operation and Structural Characteristics
◦ The high-voltage external leads adopt a fully insulated structure, eliminating the need for insulation distance, which ensures personal safety during operation. The 200A cable connector can be plugged and unplugged under load.
◦ The high-voltage and low-voltage components are separated and placed together in the box body. It has a beautiful appearance, a compact structure, and a small volume, which is only 1/5 to 1/3 of the volume of similar pad-mounted transformers. It is flexible and convenient to disassemble and assemble, and is fully sealed.
◦ There is space left in the low-voltage chamber of the box, which can be used by users to install low-voltage switches, transformers, metering devices, and remote control devices.
2. Expandability
◦ Accessories such as lightning arresters, live indicators, and fault indicators can be added.
3. Electrical Performance Advantages
◦ The connection group of the American box transformer adopts DYN11, which features high voltage quality, no neutral point drift, and the ability to reduce the interference of third-order harmonics.
◦ The American box pad mounted transformer has a strong overload capacity, low losses, strong short-circuit resistance, strong lightning protection performance, and low noise.
4. Application Flexibility
◦ The combined American box transformer can be used in both ring networks and terminals, with convenient conversion, improving the reliability of power supply. It is suitable for various public places.
5. Functional Diversity
◦ The American-style box transformer has multiple low-voltage schemes and an automatic reactive power compensation switching function, and also has measures to prevent condensation.
◦ The American box three phase pad mounted transformer enables the 10KV (35KV) power grid to penetrate into the load center, reducing line losses and beautifying the urban environment.
6. Environmental Adaptability and Safety Protection
◦ With a unique anti-corrosion design of the box body and special spray painting treatment, it can be used in various harsh environmental conditions such as areas with frequent storms and high pollution. The box body is designed to be sealed and maintenance-free.
◦ The high-voltage and low-voltage components are reasonably arranged and installed separately. Insulation protective sleeves for high-voltage terminal connectors or elbow-shaped cable plugs are used to ensure operation safety.
◦ The transformer adopts dual protection of plug-in fuses and backup fuses. The fuse wire of the plug-in fuse is a dual-sensitive fuse wire for temperature and current, which plays a role in overload protection. The fuse wire of the backup fuse provides short-circuit protection for the transformer.
7. Investment Cost Advantages
◦ Due to its small volume and compact structure, it integrates multiple functions such as transformers, low-voltage equipment, metering, and measurement. There is no need for a power distribution room. The incoming line is led in from the cable trench and it can be directly installed in the load center. The cable plug can be plugged and unplugged under load when necessary, and the connection is convenient.
◦ The American box type combined transformer reduces the investment cost of the substation, with less initial investment and low installation costs.
