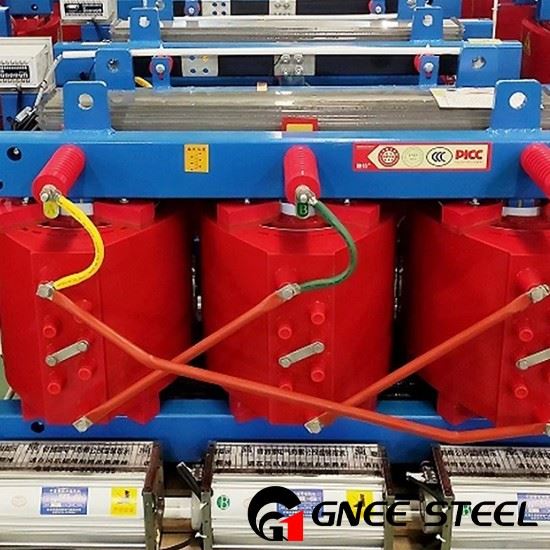

Three Phase Epoxy Resin Dry Type Transformer
Phase: Three
Core: Core-type Transformer
Cooling Method: Dry-type Transformer
Winding Type: Two-winding Transformer
Certification: ISO9001-2000, ISO9001, CCC
Description
Technical Parameters
Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of three phase epoxy resin dry type transformer in China, also supports customized service with low price. Welcome to buy discount three phase epoxy resin dry type transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.
GNEE New Material Transformer Electrical Steel
SCB10 epoxy resin cast dry-type transformer is an upgrade product of SCB9. SCB10 series products features significant high mechanical strength, high electrical strength, high heat resistance and low loss, low noise, low partial discharge. So SCB10 dry-type transformer is environmental protection products for new generation of urban power grid update, and is the mainstream product in the current transformer market. It is especially suitable for commercial center, airport, high building, chemical plant, nuclear power station, ship and other important places requiring fire prevention, explosion-proof and moisture-proof.
Oriented Silicon Steel Transformer Technical Parameters
| Rated Capacity (kVA) | Type | Vector Group | No-load current (%) |
No-Load Loss(kW) |
Load loss (kW) | short circuit impedance (%) |
| 30 | S CB10-30 | Yyn0 | 2.5 | 0.195 | 0.71 | 4 |
| 50 | S CB10-50 | 2.2 | 0.275 | 0.95 | ||
| 80 | S CB10-80 | 2.1 | 0.375 | 1.385 | ||
| 100 | S CB10-100 | 1.9 | 0.405 | 1.58 | ||
| 125 | SCB10-125 | 1.8 | 0.475 | 1.895 | ||
| 160 | SCB10-160 | 1.8 | 0.55 | 2.14 | ||
| 200 | SCB10-200 | 1.6 | 0.63 | 2.54 | ||
| 250 | SCB10-250 | 1.5 | 0.73 | 2.77 | ||
| 315 | SCB10-315 | 1.4 | 0.89 | 3.485 | ||
| 400 | SCB10-400 | 1.4 | 0.99 | 4.01 | ||
| 500 | SCB10-500 | 1.3 | 1.175 | 4.91 | ||
| 630 | SCB10-630 | 1.3 | 1.36 | 5.91 | ||
| 630 | SCB10-630 | Yyn0 or Dyn11 |
1.2 | 1.315 | 5.995 | 6 |
| 800 | SCB10-800 | 1.2 | 1.54 | 6.99 | ||
| 1000 | SCB10-1000 | 1.1 | 1.79 | 8.17 | ||
| 1250 | SCB10-1250 | 1.1 | 2.115 | 9.75 | ||
| 1600 | SCB10-1600 | 1 | 2.48 | 11.8 | ||
| 2000 | SCB10-2000 | 0.9 | 3.36 | 14.535 | ||
| 2500 | SCB10-2500 | 0.8 | 4.05 | 17.27 |
CRGO Silicon Steel Transformer Core
CRGO Silicon Steel Transformer Feature
Epoxy Resin Insulation:
Electrical Insulation: Epoxy resin provides excellent electrical insulation properties, ensuring the safety and reliability of the transformer.
Thermal Resistance: Epoxy resin has good thermal resistance, protecting the transformer from overheating.
Safety and Fire Resistance:
Self-Extinguishing: Epoxy resin is a self-extinguishing material, enhancing the fire safety of the transformer.
Low Smoke Emission: In the event of a fire, epoxy resin generates low levels of smoke, contributing to improved safety.
Environmental Friendliness:
No Oil Usage: Being a dry-type transformer, it eliminates the need for oil, making it environmentally friendly and reducing the risk of oil leakage.
High Insulation Level:
Dielectric Strength: Epoxy resin provides a high dielectric strength, preventing electrical breakdown and ensuring reliable performance.
Compact Design:
Space Efficiency: Dry-type transformers, including those with epoxy resin insulation, are known for their compact design, making them suitable for installations with space constraints.
Transformer Structure
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for many years. we can provide a wide range of silicon steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
