Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 2000kva epoxy resin cast dry-type transformer in China, also supports customized service with low price. Welcome to buy discount 2000kva epoxy resin cast dry-type transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

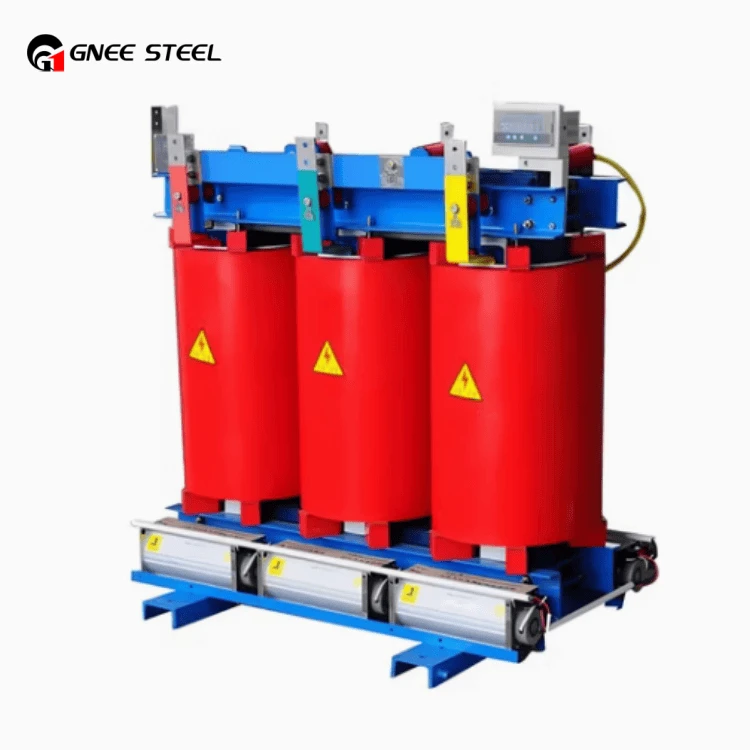

The 2000kVA epoxy resin cast dry-type transformer is a high-capacity, environmentally friendly power solution designed for industrial and commercial applications. Utilizing advanced epoxy resin vacuum casting technology, it ensures superior thermal stability and mechanical strength, enabling reliable operation under heavy loads. This transformer features a compact design with minimal space requirements, while its sealed structure prevents moisture ingress and corrosion, extending lifespan in demanding environments. It integrates intelligent temperature monitoring and automatic cooling systems to optimize performance, making it ideal for data centers, large-scale facilities, and high-reliability power distribution networks.

video

Products parameter

Rated Capacity KVA	Voltage Combination(KV)				No-load Loss (W)	Load Loss (W)	Short-circuit Impedance (%)	No-load Current (%)	Sound Level LpA (dB)
Rated Capacity KVA	High Voltage (KV)		Distribution Range(KV)	Low Voltage(KV)	No-load Loss (W)	Load Loss (W)	Short-circuit Impedance (%)	No-load Current (%)	Sound Level LpA (dB)
30	6 6.3 6.6 10 10.5 11	±5% (±2×2.5)		0.4	150	710	4	2.1	52
50					215	1000		2.1	52
80					295	1380		1.6	53
100					320	1570		1.6	53
125					375	1850		1.4	56
160					430	2130		1.4	56
200					495	2530		1.2	56
250					575	2760		1.2	56
315					705	3470		1.0	58
400					785	3990		1.0	58
500					930	4880		1.0	60
630					1070	5880		1.0	60
630					1040	5960	6	0.8	60
800					1215	6960		0.8	62
1000					1415	8130		0.8	62
1250					1670	9690		0.8	63
1600					1960	11730		0.8	64
2000					2440	14450		0.7	64
2500					2880	17170		0.7	68

Contact now

Epoxy Resin Cast Dry-type Transformer Products Description

01.

Special Environments Suitable for Epoxy Resin Cast Dry-type Transformer

High Fire Safety Requirements: The epoxy resin material is flame-retardant and oil-free, making it ideal for densely populated areas (e.g., shopping malls, subway stations) or buildings with strict fire regulations, reducing fire risks.

Humid or Corrosive Environments: Its sealed structure and epoxy resin casting resist salt spray and chemical gases (e.g., chemical plants, coastal power stations), preventing rusting of internal components or insulation degradation.

Space-Limited Areas: Compact design suits underground substations, high-rise building distribution rooms, or other space-constrained environments requiring high-capacity power supply.

High Reliability Needs: Ideal for data centers, hospitals, or facilities sensitive to power outages due to stable overload and short-circuit resistance capabilities, ensuring continuous power supply.

02.

Noise Control Technology Features of Epoxy Resin Cast Dry-type Transformer

Optimized Winding Structure: Copper foil winding and layered pressing reduce vibrations caused by current eddy currents and electromagnetic noise, lowering high-frequency noise.

Low-Noise Cooling System: Equipped with adjustable airflow axial fans combined with intelligent temperature-controlled start/stop functions, avoiding mechanical noise from continuous high-speed operation.

Vibration Reduction Installation Technology: Elastic supports on the bottom and reinforced outer casing isolate vibration transfer, reducing resonant sounds between the equipment and structural foundation.

Acoustic Material Application: Sound-absorbing materials embedded in key shell locations optimize vent grille angles, suppressing airflow turbulence noise, keeping overall noise levels below 52-68dB (depending on load).

SGS certification certificate

product-1200-800

Contact now

about us

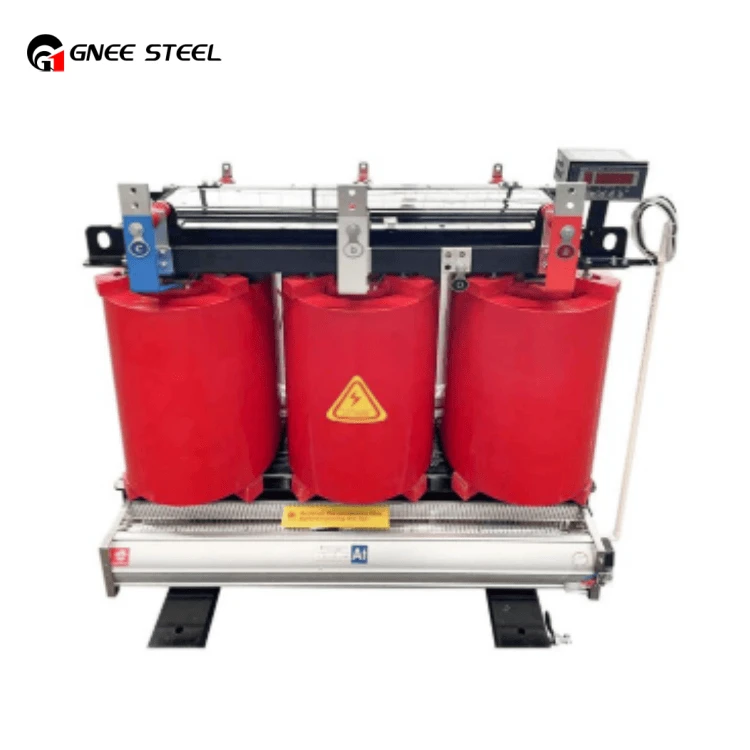

2000KVA Epoxy Resin Cast Dry-type Transformer

fAQ

Q: What Are the Core Competitive Advantages of Your Company?

A: Experience and Scale: Since its establishment in 2008, our company has been focusing on the transformer field for 18 years. We have delivered over 50,000 units of equipment and served more than 2,000 customers globally.
R&D and Production: A team of 200 professionals with a 20,000㎡ modern production base covering three major locations in China: Shijiazhuang, Xingtai, and Anyang. This ensures full autonomy from raw materials to finished products.
Customization Capability: Supports the design of transformers ranging from 50kVA to 5000kVA. Customized solutions can be provided for special scenarios such as high altitude or extreme temperatures.

Q: How Do You Ensure Delivery Time and Quality?

A: Supply Chain Assurance: Leveraging the industrial cluster advantages of three factories, we maintain sufficient raw material inventory, enabling faster order response compared to the industry average by 30%.
Quality Control System: From the precision of core stacking (±0.5mm) to 200 inspection items before product delivery, we ensure that each device complies with international standards such as CE and IEC.

Q: What Is the Delivery Cycle for Standard Products? Will Custom Products Affect Delivery Time?

A: Standard Products: The typical delivery cycle is 15-30 working days (starting from the signing of the contract and receipt of the advance payment).
Custom Products: Delivery cycles may extend depending on specific requirements, usually requiring 30-60 working days. If special materials, non-standard designs, or international transportation are involved, the specific time will be negotiated between both parties.

Q: Does Your Company's Transformers Meet International Standards?

A: Certifications: Passed certifications including IEC 60076 (International Standard), GB/T 6451 (Chinese National Standard), SGS, CE, UL, etc.
Special Certifications: Non-crystalline alloy transformers meet the IEC 61786 (high-efficiency transformer) standard; pre-assembled substations comply with the IEC 62271-200 (pre-assembled substation) requirement.

Q: How to Choose the Appropriate Type of Transformer?

A: Energy Efficiency Priority: Select amorphous alloy or epoxy resin dry-type transformers.
High Load Scenarios: Oil-immersed transformers are preferable.
Complex Distribution Needs: Contact engineers to customize pre-assembled substation solutions.
