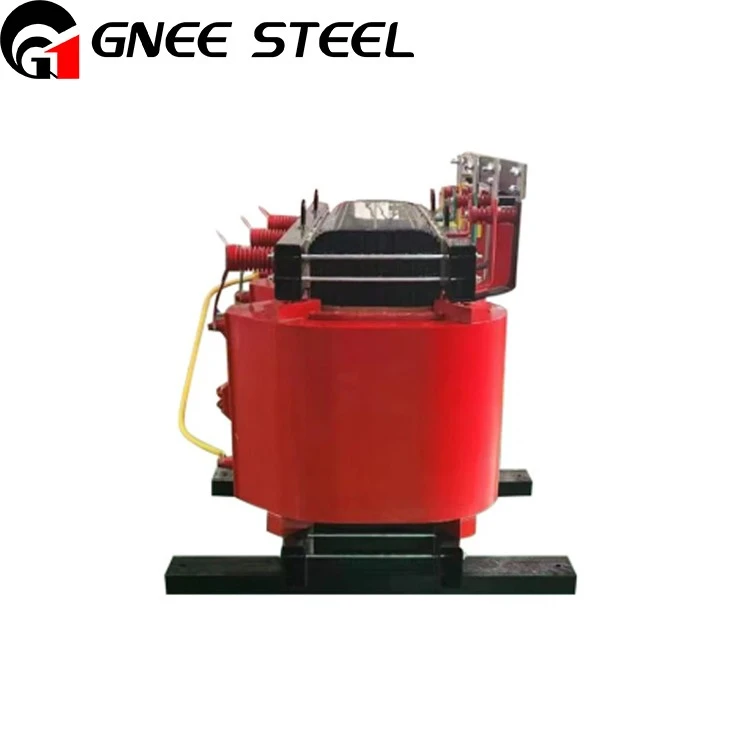

1600 KVA Class F Air Cooled Dry Type Transformer
Description
Technical Parameters
Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 1600 kva class f air cooled dry type transformer in China, also supports customized service with low price. Welcome to buy discount 1600 kva class f air cooled dry type transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.
product video
product Features
SCB14 is a typical epoxy resin cast dry-type transformer with the following characteristics:
Oil-free Design:
Epoxy resin encapsulated windings ensure fireproof, explosion-proof, and pollution-free operation.
Safety and Environmental Protection:
Ideal for indoor environments, basements, and other high-safety requirement areas.
Low Maintenance:
No regular oil treatment required; only routine cleaning and temperature monitoring are needed.
SCB14 is widely used in industrial, commercial, and special applications (such as subways and data centers). Its dry-type structure and air-cooled design make it suitable for environments with high safety and reliability requirements.
Scope of Supply
Product: 1600 KVA class F air cooled dry type transformer
Voltage level: up to 11 KV
Rating level: up to 2500 KVA
The crt dry type transformer can be designed according to customer's requirements.
SCB14 Series 1600 KVA class F air cooled dry type transformer technical parameter
| Rated Capacity(kVA) | Voltage Combined | Vector-group | No-load Loss(W) | 75ºC Load Loss(W) |
No-load current(%) | Short-circuit Impendance(%) | ||
| High voltage(KV) | Tapping Ranges | Low voltage(KV) | ||||||
| 30 | 6 6.3 6.6 10 10.5 11 |
±5% ±2×2.5% |
0.4 | Dyn11 Yyn0 |
190 | 710 | 2.4 | 4 |
| 50 | 270 | 1000 | 2.4 | |||||
| 80 | 370 | 1380 | 1.8 | |||||
| 100 | 400 | 1570 | 1.8 | |||||
| 125 | 470 | 1850 | 1.6 | |||||
| 160 | 540 | 2130 | 1.6 | |||||
| 200 | 620 | 2530 | 1.4 | |||||
| 250 | 720 | 2760 | 1.4 | |||||
| 315 | 880 | 3470 | 1.2 | |||||
| 400 | 980 | 2990 | 1.2 | |||||
| 500 | 1160 | 4880 | 1.2 | |||||
| 630 | 1340 | 5880 | 1.0 | |||||
| 630 | 1300 | 5960 | 1.0 | 6~8 | ||||
| 800 | 1520 | 6960 | 1.0 | |||||
| 1000 | 1770 | 8130 | 1.0 | |||||
| 1250 | 2090 | 9690 | 1.0 | |||||
| 1600 | 2450 | 11730 | 1.0 | |||||
| 2000 | 6050 | 14450 | 0.8 | |||||
| 2500 | 3600 | 17170 | 0.8 | |||||
| 1600 | 2450 | 12960 | 1.0 | |||||
| 2000 | 3050 | 15960 | 0.8 | |||||
| 2500 | 3600 | 18890 | 0.8 | |||||
Product details
Advantages of Cast Resin Dry Type Transformers
Air cooled dry type transformers are the ideal choice for power distribution in numerous industrial and commercial scenarios. Their innovative design endows them with unparalleled advantages over traditional oil-filled transformers, as detailed below:
High Efficiency and Energy Conservation：Class F air cooled dry type transformers boast remarkable energy efficiency, significantly reducing energy consumption compared to oil-filled transformers. This efficiency enables enterprises to substantially cut operating costs and enhance economic benefits.
Easy Maintenance：These dry type transformers are characterized by low maintenance difficulty and minimal routine upkeep requirements. Unlike oil-filled transformers, they don't necessitate frequent insulation oil changes and tests, effectively saving both time and resources.
Safety and Reliability：Cast resin dry type transformers offer extremely high safety levels, completely eliminating the risk of oil leakage and avoiding potential safety hazards caused by oil contamination. This makes them the top choice for places with strict safety requirements, such as hospitals and schools.
Durability：They are robust and durable, capable of operating stably in harsh environments with high humidity or extreme temperatures. With a service life spanning several decades, they continuously provide reliable power support.
Environmental Friendliness: 1600 KVA Dry type transformers are free from toxic substances like PCBs and are 100% recyclable, aligning with enterprises' pursuit of environmental responsibility and sustainable development.
In conclusion, class F cooled dry type transformers stand out with their numerous advantages, offering high-quality power distribution solutions for various scenarios.
Company Overview
How does a distribution power transformer work? And what is its working principle?
The working principle of a dry pack transformer is electromagnetic induction. Simply put, when an alternating current is passed through the primary coil of the dry resin transformer, a changing magnetic field is generated. This changing magnetic field is transferred to the secondary coil through the iron core. Due to the change of the magnetic field, a voltage is induced in the secondary coil. If an electrical appliance is connected to the secondary coil, a current will pass through, thus transmitting electrical energy from the primary coil to the secondary coil, realizing the transformation of voltage and the transmission of electrical energy.
