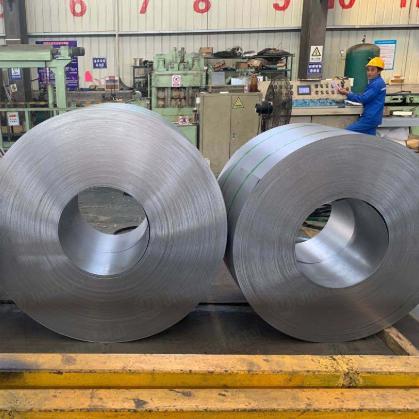

27QG100 Grain Oriented Silicon Steel Sheet

27QG100 Grain Oriented Silicon Steel Sheet
27QG100 Grain Oriented Silicon Steel Sheet
27QG100 Grain Oriented Silicon Steel Sheet
27QG100 Grain Oriented Silicon Steel Sheet

27QG100 Grain Oriented Silicon Steel Sheet

Name: China 27QG100 Grain Oriented Silicon Steel Sheet Manufacturers Suppliers Factory - GNEE Electric
Brand: GNEE Electric
SKU: 264633251

27QG100 Grain oriented silicon steel sheet is kind of high permeability type cold rolled grain-oriented electrical steel strip, with a nominal maximum specific total loss P1.7/50 of 1.00 W/kg, nominal thickness is 0.27mm, supplied in the fully processed state.

Send Inquiry

Chat Now

Description

Technical Parameters

Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 27qg100 grain oriented silicon steel sheet in China, also supports customized service with low price. Welcome to buy discount 27qg100 grain oriented silicon steel sheet for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

Silicon steel Description

Silicon steel (technically termed as electrical steel, commercially referred to as silicon steel sheet) represents a specialized class of Fe-Si soft magnetic alloys characterized by ultralow carbon content (<0.005%) and controlled silicon addition (0.5-4.5 wt%). The strategic silicon alloying delivers three fundamental electromagnetic enhancements: (1) 4-5 fold increase in electrical resistivity, (2) 30-50% improvement in maximum permeability, while simultaneously suppressing three critical loss parameters - (i) 40-60% reduction in coercivity, (ii) 35-55% decrease in core losses (P1.5/50), and (iii) significant mitigation of magnetic aging effects (Δμ/μ<5%).

Contact now

electrical steel video

27QG100 Grain Oriented Silicon Steel Sheet and other grades silicon steel parameter

Grade	CRGO: 23Q110, 27Q120, 27Q130, 30Q120, 23QG090, 23QG095, 23QG100, 27QG095, 27QG100 27QG120, 30QG105, 30QG120 23RK080, 23RK085, 23RK090, 23RK095 B18R065, B20P070, B23R075, B23R080, B23R085 B20P080, B23P085, B27P095, B27P100, B30P105, B30P120






	CRNGO: 65W530, 65W800, 35WW250, 35WW270, 35WW300, 35WW360, 35WW400, 35WW440 50WW270, 50WW290, 50WW310, 50WW350, 50WW400, 50WW470, 50WW600, 50WW700, 50WW800, 50WW1000, 50WW1300




Nominal thickness	0.18mm, 0.20mm, 0.23mm,0.27mm,0.30mm,0.35mm,0.5mm
Coil ID	508mm
Weight	2MT~8MT
Standard	EN 10106,IEC 60404-8-4,ASTM,DIN,GB,JIS
Form	Cold Rolled Strip

go silicon steel

Lamination Factor of Grain oriented silicon steel sheet

The lamination factor reflects the proportion of effective core volume within a given unit volume of motor or transformer cores. In addition to being influenced by electrical steel thickness and coating thickness, it is critically dependent on the flatness of the laminations. Within a unit volume of motor or transformer cores, aside from the core material (effective portion), there are coatings and air gaps. A higher lamination factor is desirable.

Non-oriented electrical steel typically achieves a lamination factor of over 98%.

Grain-oriented silicon steel generally reaches above 97%.
