Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 50 hz 6 kv european box transformer in China, also supports customized service with low price. Welcome to buy discount 50 hz 6 kv european box transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

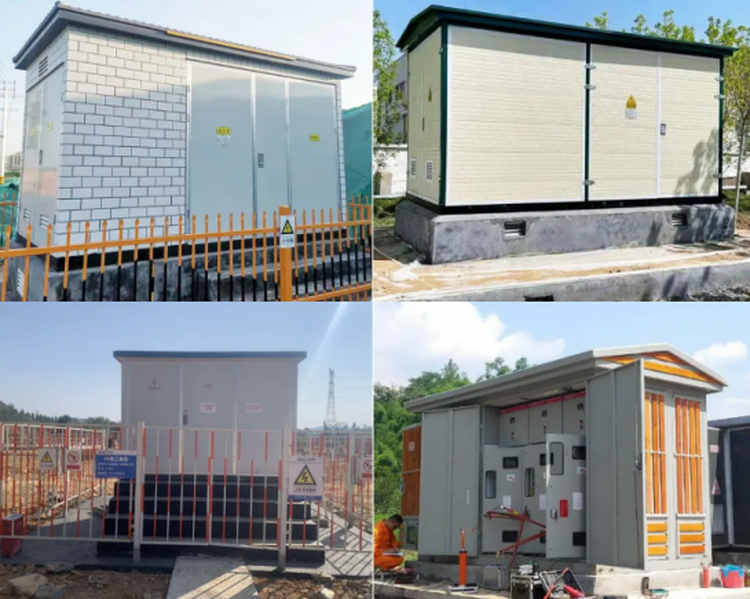

European Box Transformer Description
The European substation box transformer layout has three compartments: high - voltage, transformer, and low - voltage. The high - voltage side has diverse supply modes. The high - voltage compartment contains cabinets like incoming line and ring network ones, with specific protection devices. The transformer compartment has a transformer, and its ventilation and lighting can be controlled in different ways. The low - voltage compartment meets users' needs with various functions and structure options.
50 HZ 6 KV European Box Transformer video
European box transformer parameter
| Gnee Electric can provide the following types of European box transformer: | |
| 50 HZ European box transformer | 400A 10 KV European box transformer |
| 60 HZ European box-type transformer | 400A 35 KV European box-type transformer |
| 315A 6 KV European box-type substation | 630A 6 KV European box-type substation |
| 315A 10 KV European box-type transformer substation | 630A 10 KV European box-type transformer substation |
| 315A 35 KV prefabricated substation | 100-3200A 380V prefabricated substation |
| 400A 6 KV European-style box | 100-3200A 220V European-style box |
Differences between European-style and American-style box transformer
European-style and American-style box transformer have many differences, which are as follows:
1. Design Standards: European-style packaged substations follow European standards and focus on safety and protection levels. American-style packaged substations follow American standards and emphasize cost-effectiveness and ease of installation.
2. Protection Level: European box transformers have a high protection level, such as IP54, IP55, IP65, etc., and are suitable for harsh environments. American box pad mounted transformers generally have a lower protection level, such as IP33, IP43, and are suitable for general environments.
3. Volume and Weight: European box-type transformers are large in volume and heavy in weight. American box transformers are small in volume and light in weight, which is convenient for transportation and installation.
4. Structural Layout: European box-type substations feature a layout where high - voltage compartments, transformer compartments, and low - voltage compartments are independent, arranged in a configuration similar to a rectangle with a vertical line in the middle. Combined American box transformers are arranged in a triangular - like pattern. They are divided into two parts: the front part consists of high - and low - voltage operation intervals, and the rear part contains the oil injection tank and radiator fins.
5. Main Components: European box-type transformer substations are composed of transformers, 10KV ring main unit switchgear, low-voltage capacitors, low-voltage switches, etc. American-style box transformers are composed of transformers, 10KV ring main unit switches, 10KV cable plugs, low-voltage terminal boxes, etc.
6. Transformers: 50 HZ 6 KV European box transformer can use either oil-immersed transformers or dry-type transformers. American box three phase pad mounted transformers usually use oil-immersed transformers.
7. Protection Methods: European-style packaged substations have flexible protection methods, including circuit breaker protection, mechanical interlocks, etc., and can achieve high-voltage metering. American box type combined transformers use fuses for protection on the high-voltage side and molded case automatic air circuit breakers for protection on the low-voltage side, and can only perform low-voltage metering.
8. Application Scenarios: European box transformers are suitable for multi-story residential buildings, small high-rise buildings, high-rise buildings, and other relatively important buildings. American box pad mounted transformers are suitable for multi-story residential buildings and other unimportant buildings with relatively low power supply requirements.
