Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 2500a 380v low voltage switch cabinet in China, also supports customized service with low price. Welcome to buy discount 2500a 380v low voltage switch cabinet for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.
Low voltage switch cabinet video
Product Introduction
AC low - voltage power distribution cabinets play a crucial role in electrical systems. They are mainly used to receive, distribute, and control electrical power in low - voltage circuits. These AC distribution cabinets can allocate electrical energy from power sources, like electrical distribution transformers, to various electrical equipment such as motors, lighting fixtures, and other appliances. They also protect the electrical system by providing over - current, short - circuit, and over - voltage protection. Additionally, they enable the monitoring and management of electrical parameters, ensuring the stable and safe operation of the entire electrical distribution network.
Scope of Supply
Product: Single phase pad mounted Transformer
Rated Power: Up to 3150 KVA
Primary Voltage: 380V
The AC distribution cabinet can be designed according to customer's requirements.

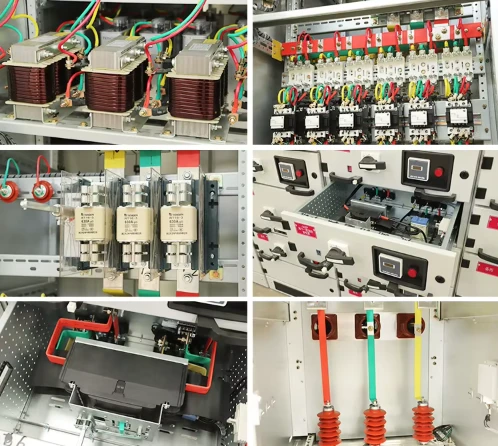

Product details
Technical data sheet
| Model | Rated voltage (V) |
Rated current(A) | Rated short-circuit breaking current (KA) |
Rated short-circuit withstand current (IS)(KA) |
Rated peak withstand current (KA) |
Enclosure protection Grade |
|
| GGD1 | 380 | A | 1000 | 15 | 15 | 30 | |
| B | 600(630) | ||||||
| C | 400 | ||||||
| GGD2 | 380 | A | 1500(1600) | 30 | 30 | 63 | IP30 |
| B | 1000 | ||||||
| C | |||||||
| GGD3 | 380 | A | 3150 | 50 | 50 | 105 | |
| B | 2500 | ||||||
| C | 2000 | ||||||

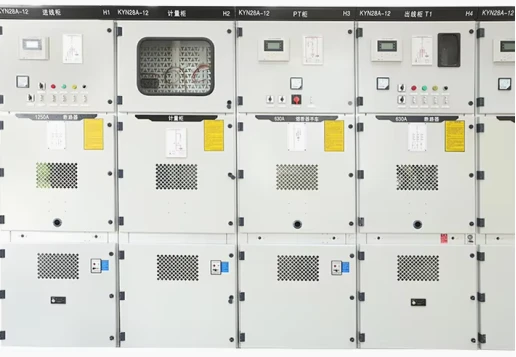

finished low voltage switch cabinet
High and Low Voltage Switchgear: Core Supports for Power Operation
High and low voltage switchgear encompasses indoor and outdoor AC switchgear operating within power systems at voltages exceeding 3kV and frequencies below 50Hz. This equipment plays a pivotal role in the control and protection of power systems, which include power plants, substations, transmission and distribution lines, as well as the electrical setups of industrial, mining enterprises, and other users.
Its primary functions are twofold. First, it enables the inclusion or removal of electrical equipment and lines from the power grid as required for grid operations. Second, in the event of malfunctions in power equipment or circuits, it swiftly isolates the faulty sections, ensuring that the unaffected parts of the grid continue to operate smoothly. This not only safeguards the integrity of the remaining electrical equipment but also protects the safety of operation and maintenance personnel.
Given these critical functions, high and low voltage switchgear is an indispensable component of transmission and distribution infrastructure. The safe and reliable operation of this equipment is fundamental to the efficient and secure functioning of the entire power system.
FAQ
Q: What are your major products?
A: Our core offerings include oil-immersed transformers, dry-type transformers, transformer substations, and high and low voltage switchgear.
Q: Can your products be customized?
A: Absolutely. Given the diverse requirements for voltage, frequency, and other specifications across different countries and regions, we can tailor our products to meet your specific needs.
Q: How soon can I expect a price quote?
A: Typically, we provide quotes within 24 hours of receiving your inquiry.
Q: What's the lead time and shipping duration?
A: The lead time varies based on order quantity. Generally, we can deliver within 15 days after receiving the advance payment. As for shipping, it depends on the destination.
Q: How much does shipping cost?
A: Shipping fees vary according to the port of delivery. We can provide a detailed estimate once the destination is confirmed.
Q: Do your products come with a warranty?
A: Yes, all our transformers come with a minimum one-year warranty to ensure reliability and peace of mind.
Q: What sets your company apart?
Our key advantages lie in 18 years of experience in the power and distribution transformers industry. We are equipped with state-of-the-art production facilities, ensure consistent product quality, offer rapid delivery, and provide professional and responsive service. Additionally, we offer complimentary spare parts to support your long-term operations.
