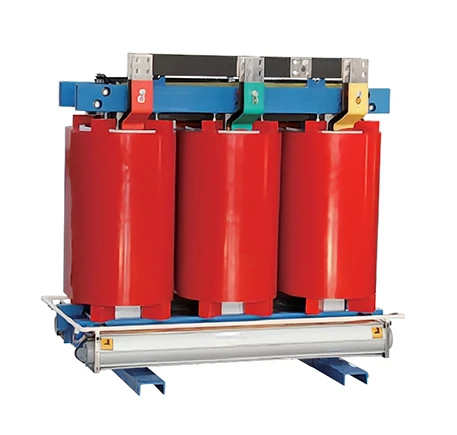

400 KVA Cast Resin Transformer
Description
Technical Parameters
Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 400 kva cast resin transformer in China, also supports customized service with low price. Welcome to buy discount 400 kva cast resin transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.
Product video
Product Introduction
Cast resin transformers are highly moisture - resistant, rendering them ideal for operation in both humid and heavily polluted environments. They can function seamlessly in conditions with humidity exceeding 95% and at temperatures as low as - 25°C.
Regarding their power capacity, the standard rated power tops out at 2500 kVA. However, upon customer request, it can be extended up to 5000 kVA.
Product Parameters
General arrangement drawing
400 kVA Cast Resin Transformer Benefits
Efficient Insulation and Self - cooling: Standard thermally conductive cast epoxy resin insulates the coils, enabling self - cooling. It also safeguards against fire, moisture ingress, and leakage.
Robust Corrosion Protection: Coils and core clamps are provided with special corrosion protection, ensuring reliable performance even in 100% relative humidity and other harsh environmental conditions.
Overload Assurance with Cooling: With optional forced air - cooling (AF) features, 400 kVA resin transformers guarantee short - term overload capabilities.
Enhanced Safety Features: Self - extinguishing materials prevent short - circuit - induced arcs and eliminate potentially harmful gases under high - temperature conditions.
Cost - effective Design: Our compact, lightweight 400 kVA cast resin transformer with low load losses and high efficiency help achieve significant cost savings.
400 kVA cast transformer display
Certificate display
How to Select a dry type transformer?
Preliminary Investigation: Understand the power supply voltage at the power consumption location, the actual load, and the local environmental conditions, and select the dry type transformer by referring to the data on the nameplate.
Capacity Determination: Consider the capacity, voltage, current, and environment comprehensively. Determine the load according to the capacity, characteristics, and usage duration of the electrical equipment, and then select the capacity of the cast resin transformer. During normal operation, the load should preferably be 75 - 90% of the rated capacity. If the measured load is less than 50%, replace it with a cast resin dry type transformer of smaller capacity. If it exceeds the rated capacity, replace it with a larger transformer.
Voltage Selection: Determine the voltage of the primary coil according to the line power supply, and select the voltage of the secondary coil according to the electrical equipment. It is preferable to choose a low-voltage three-phase four-wire system to supply power for both motive power and lighting.
Current Consideration: Ensure that the load can meet the requirements of the motor during startup, as the startup current of the motor is 4 - 7 times that during operation.
