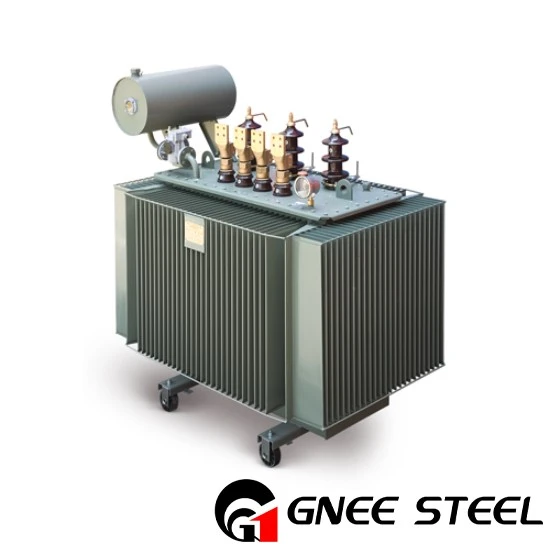

S9 Type 10kv Series Sealed Tank Distribution Transformer
Description
Technical Parameters
Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of s9 type 10kv series sealed tank distribution transformer in China, also supports customized service with low price. Welcome to buy discount s9 type 10kv series sealed tank distribution transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.
GNEE Steel Electrical Steel for Transformer
The three-phase oil-immersed transformer applies new type insulation structure and improves the ability of short-circuit resistance.The iron core is made of high-quality cold-rolled silicon-steel plate.High-voltage winding group is made of high quality copper wires and it adopts multilayer cylindrical structure.All fasteners have been processed with special treatment to prevent them from loosening.
Environmental conditions of S9 Type 10kv Series Sealed Tank Distribution Transformer
1. Type: Outdoor
2. Normal Service Conditions:
3. The height above the sea level is below 1000m;
4. Ambient temperature: Highest air temperature+40 ℃, Lowest air temperature-25℃
5. Relative air humidity:≤90%(+25℃)
6. installation site: no corrosion gas, No obvious dirt
For Agricultural power distribution and lighting
Non-Oriented Electrical Steel for Transformer
|
Number of Phase |
Three Phase |
|
Winding Type |
Two Winding |
|
Rated Capacity |
30kVA |
|
High Voltage |
10/11kV |
|
Low Voltage |
0.4kV |
|
Tapping Range |
±2x2.5% |
|
Impedance Voltage |
4% |
|
Load Loss |
0.63/0.6kW |
|
No-load Loss |
0.1kW |
|
No-load Current |
1.5% |
|
Frequency |
50/60Hz |
|
Connection Group |
Yyn0/Dyn11 |
|
Cooling Method |
ONAN |
|
Coil Material |
Aluminum/Copper |
|
Size |
1050x660x1140mm |
|
Weight |
400kg |
Transformer Electrical Silicon Steel
Features of S9 Type 10kv Series Sealed Tank Distribution Transformer
A. Good heat emission, big overload capacity. Can work without wind machine for long time under 130 overload, and be full load without compulsive wind cool without capacity descending under IP45 condition.
B. Perfect safe and resistance to fire operating can be combusting for long period under 800ºC and without smoke
C. Strong resistance to thermal shock(can be full load immediately at -50ºC)
D. Complete waterproof and airproof.
E. No partial discharge
F. Good hydrophobility and good resistance to alkaline cauterization and fundal influence
G. Environmental, low noise, no deleerious gas, easy to decomposition
Cold Rolled Oriented Silicon Steel Transformer
