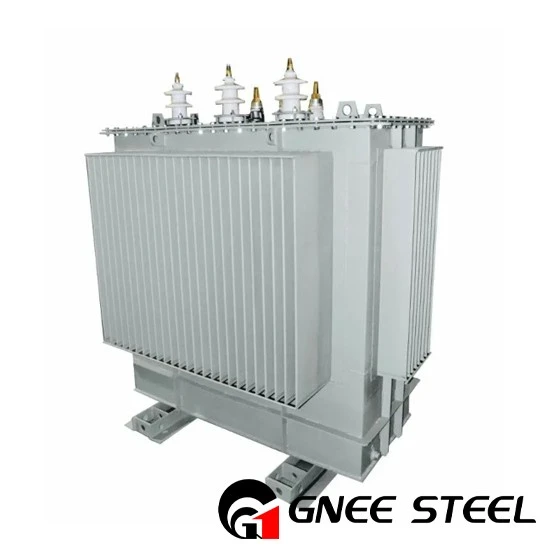

Amorphous Core Transformer
Description
Technical Parameters
Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of amorphous core transformer in China, also supports customized service with low price. Welcome to buy discount amorphous core transformer for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.
GNEE Steel amorphous core transformer
An amorphous core transformers is a core transformers made of amorphous steel. The most significant benefit of an amorphous transformer is that the amorphous steel has lower hysteresis loss. In other words, transformers made of this amorphous steel waste less energy (in the form of heat) during the magnetization and demagnetization of the core.
| Transformer Type | Dry Type Amorphous Transformer |
| Rated Capacity | 1000~4000 kVA |
| Rated Voltage(HV/LV) | 33/0.8kV (Customized) |
| Frequency | 50 Hz/60 Hz |
| Impedance | 4~8% |
| Cooling Way | AN/AF |
| Tapping Range | +2X2.5%/-2X2.5%/Customized |
| Vector Group | Dyn11/Customized |
| Winding Material | Copper/Aluminium |
| Core Materials | Silicon Steel |
| Insulation Level | as Per IEC Standard |
| Temperature Rise | Customized |
| Accessories | Fans, Enclosure |
| Optional Protective Enclosure | IP00/IP20/IP23/Cutomized |
| Lightning Impulse Withstand Voltage | as Per IEC Standard |
| Transport Package | Wooden Pallet, Wooden Case |
| Winding Type | Two-winding |
The benefits of amorphous metal transformer
An amorphous metal core transformer's great benefit is that the amorphous steel core has a lower hysteresis loss. Since there is no atomic arrangement law, the small energy loss (delay) when the induced current flows through the iron core.
Non-crystalline structure and random arrangement of atoms give low magnetic fields and high resistivity. Due to the magnetic field, low delay, and eddy currents with high resistivity, losses are minimal. As the core loss of metal alloy amorphous reduced by 42% and the magnetization current is 53%.
Besides, eddy current losses are reduced because of a thickness of approximately 0.03 mm, about 1/10 of silicon steel. The no-load loss rating is 1/4 to 1/3 of transformers that use traditional silicon steel for the core. By the way, the temperature in this amorphous steel core is low, which will significantly reduce the amount of air CO2 released into the environment.
FAQ
1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Anyang City, Henan Province.
2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
5.Q: How can I pay you?
A: T/T, L/C is very well used.
6.Q: What about the production?
A: Produce time is 4~6weeks.
Hot Tags: amorphous core transformer, China amorphous core transformer manufacturers, suppliers, factory, Amorphous Transformers, Alloy Transformer, Amorphous Alloy Oil Immersed Three Phase Transformer, amorphous alloy steel core transformer, amorphous core three phase transformer, amorphous steel core dry type transformer
