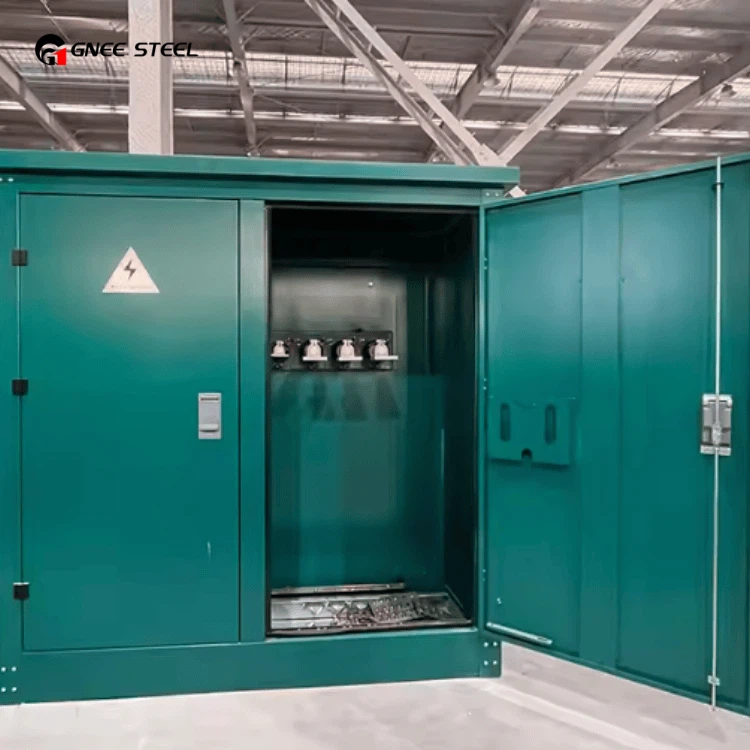

100KVA 125KVA 160KVA Combination Transformer 6KV 10KV 35KV American Style Box Type

Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 100kva 125kva 160kva combination transformer 6kv 10kv 35kv american style box type in China, also supports customized service with low price. Welcome to buy discount 100kva 125kva 160kva combination transformer 6kv 10kv 35kv american style box type for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

The 100-1600KVA Combination Transformer (American Style Box Type) is a compact, efficient, and reliable power solution designed for various industrial and commercial applications. Enclosed in a robust weatherproof box, it features oil-immersed technology for superior cooling and low maintenance. With a capacity range of 100-1600KVA, this transformer ensures stable voltage output, minimal energy loss, and excellent short-circuit resistance. Suitable for outdoor installations, it is ideal for residential areas, shopping malls, factories, and renewable energy projects. Certified to international standards, it guarantees safe operation, environmental friendliness, and long-term durability.

Contact now

1. Capacity Selection and Load Matching

Choose the appropriate capacity (100-1600KVA) based on actual power requirements. Avoid overloading or excessive capacity to ensure the equipment operates at optimal efficiency.

Consider potential future electricity demand growth and reserve an appropriate capacity margin.

2. Environmental Adaptability and Protection Rating

The Combination Transformer is outdoor type (American Style Box Type), with excellent sealing and protection performance. Confirm that the installation site meets the following conditions:

Temperature range: Typically requires -25°C to +45°C.

Humidity: Avoid high humidity environments that can degrade insulation performance.

Protection rating: Ensure the product meets IPXX standards, resisting rain, dust, and other external factors.

3. Electrical Parameters and System Compatibility

Voltage level: Confirm that the transformer's input voltage (e.g., 35kV) and output voltage (e.g., 10kV/0.4kV) match the grid and load equipment.

Frequency: Ensure the transformer's operating frequency (e.g., 50Hz or 60Hz) matches the local grid.

Short-circuit capability: Check whether the transformer's short-circuit withstand capability meets system requirements.

4. Installation Space and Heat Dissipation Requirements

Ensure the installation location has sufficient space for heat dissipation and maintenance operations:

Minimum installation distance: According to manufacturer recommendations, typically leave at least 1 meter of space on all sides.

Foundation design: Use a solid and level foundation to prevent long-term settlement from affecting transformer stability.

The oil temperature inside the Combination Transformer box is relatively high, so ensure good ventilation to avoid damage to insulating materials from high temperatures.

5. Grounding and Safety Protection

Grounding system: Follow regulations for reliable grounding to reduce the risk of electric shock and improve interference resistance.

Protective devices: Equip necessary protective equipment such as:

Pressure relief valve: Prevents excessive internal pressure.

Temperature monitoring device: Monitors oil temperature and winding temperature in real-time.

Circuit breakers and lightning arresters: Protect equipment from overvoltage and short circuits.

6. Transportation and Storage Precautions

During transportation: Avoid severe vibrations or tilting, ensuring packaging remains intact without damage.

Storage conditions: For short-term storage, place it in a dry and ventilated area, avoiding direct sunlight and humid environments.

Moisture prevention measures: If stored long-term, regularly check the oil level and insulation condition.

7. Professional Installation and Commissioning

Installation team: Choose qualified professionals for installation to ensure correct wiring, reliable grounding, and compliance with local electrical codes.

Testing and verification: After installation, conduct comprehensive tests including no-load testing, short-circuit testing, and load operation testing to ensure all parameters are normal.

8. Maintenance and Care After Installation

Regular inspections: Develop a maintenance plan to periodically check key indicators such as oil level, oil quality, temperature, and insulation resistance.

Cleaning and corrosion prevention: Keep the transformer housing clean to prevent corrosion that could affect its lifespan.

Data recording: Establish an operational archive to record daily operational data for timely detection of any abnormalities.
