Name: China Materials Cold Rolled Non Oriented Electrical Steel Sheet in Coil Manufacturers Suppliers Factory - GNEE New Material
Brand: GNEE New Material
SKU: 264529231

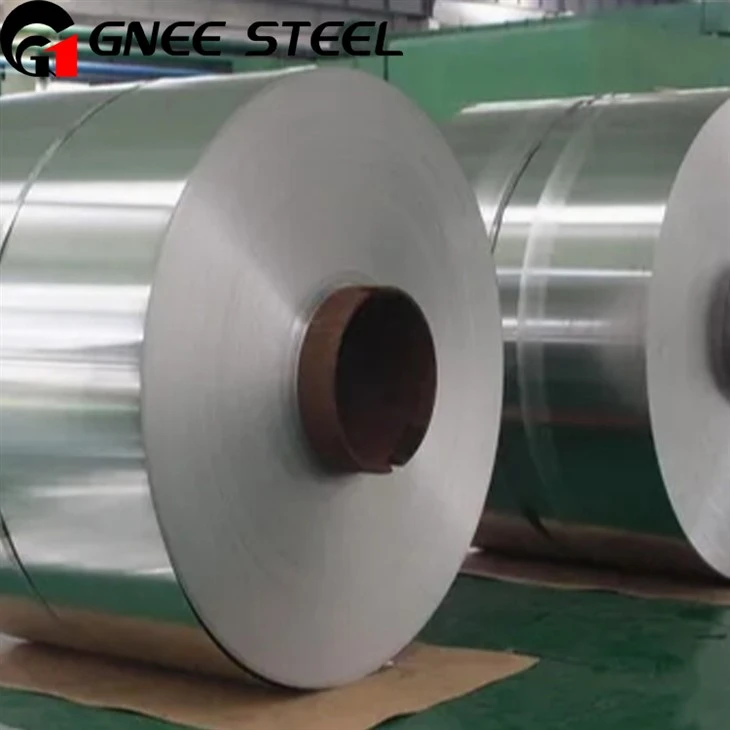

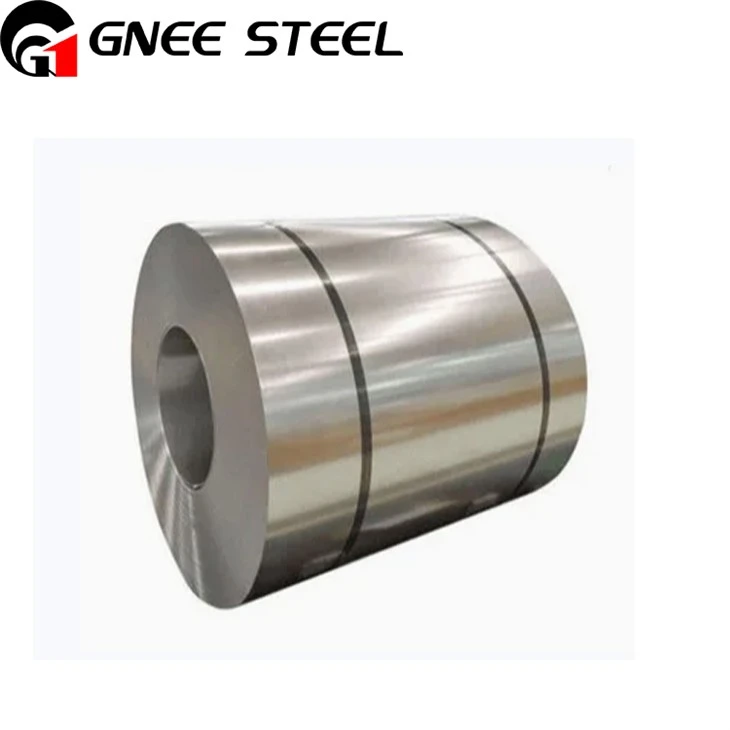

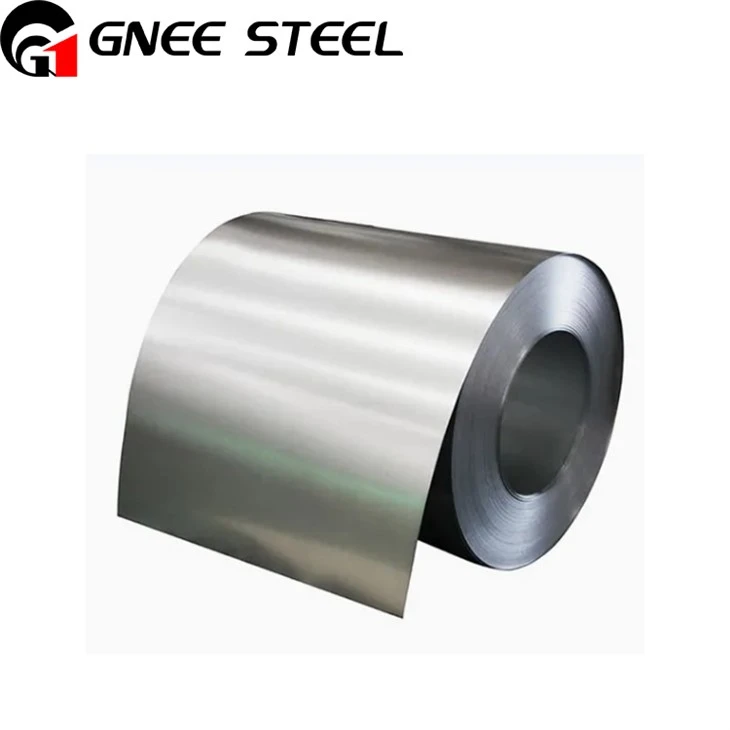

Materials cold rolled non oriented electrical steel sheet in coil, also called silicon steel coil, contains 0.5% to 3.0% silicon. Electrical steel coil with thickness 0.5mm is once formed through cold rolling the 2 to 3mm thick hotrolled coil which has already been chemically cleaned with acid.

Send Inquiry

Chat Now

Description

Technical Parameters

Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of materials cold rolled non oriented electrical steel sheet in coil in China, also supports customized service with low price. Welcome to buy discount materials cold rolled non oriented electrical steel sheet in coil for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.

crngo electrical steel Description

Our manufacturing process employs a complete set of advanced equipment, ensuring the production of high-quality crngo electrical steel with exceptionally smooth surfaces and precise, uniform thickness. When used in motors and transformers, our NGO silicon steel delivers multiple advantages: it significantly improves energy efficiency while extending equipment service life, simplifies cooling system requirements, and enables material savings - maintaining constant power output while using less silicon steel, thereby reducing manufacturing costs. Furthermore, the silicon steel coils' high magnetic induction properties effectively minimize ferrite core loss, enhancing overall electromagnetic performance.

Contact now

silicon steel vedio

Materials Cold Rolled Non Oriented Electrical Steel Sheet in Coil parameter

Grade	CRGO: 23Q110, 27Q120, 27Q130, 30Q120, 23QG090, 23QG095, 23QG100, 27QG095, 27QG100 27QG120, 30QG105, 30QG120 23RK080, 23RK085, 23RK090, 23RK095 B18R065, B20P070, B23R075, B23R080, B23R085 B20P080, B23P085, B27P095, B27P100, B30P105, B30P120






	CRNGO: 65W530, 65W800, 35WW250, 35WW270, 35WW300, 35WW360, 35WW400, 35WW440 50WW270, 50WW290, 50WW310, 50WW350, 50WW400, 50WW470, 50WW600, 50WW700, 50WW800, 50WW1000, 50WW1300




Nominal thickness	0.18mm, 0.20mm, 0.23mm,0.27mm,0.30mm,0.35mm,0.5mm
Coil ID	508mm
Weight	2MT~8MT
Standard	EN 10106,IEC 60404-8-4,ASTM,DIN,GB,JIS
Form	Cold Rolled Strip

crngo

Production Process Flow of Cold-Rolled Non-Oriented Silicon Steel

1.Production Process for High-Grade Non-Oriented Silicon Steel

Hot-rolled coil normalization & pickling (CP) → Cold rolling (reversible cold rolling mill) (CM/ZR/TCM) → Decarburization annealing & insulating coating (CA) → Edge trimming & coiling/slitting (CS) → Packaging & warehousing (PA)

2.Production Process for Medium/Low-Grade Non-Oriented Silicon Steel

Method 1:

Hot-rolled coil pickling (CP) → Cold rolling (CM/ZR/TCM) → Decarburization annealing & insulating coating (CA) → Packaging & warehousing (PA)

Method 2:

Hot-rolled coil pickling & tandem rolling (PL-TCM) → Decarburization annealing & insulating coating (CA) → Edge trimming & coiling/slitting (CS) → Packaging & warehousing (PA)
