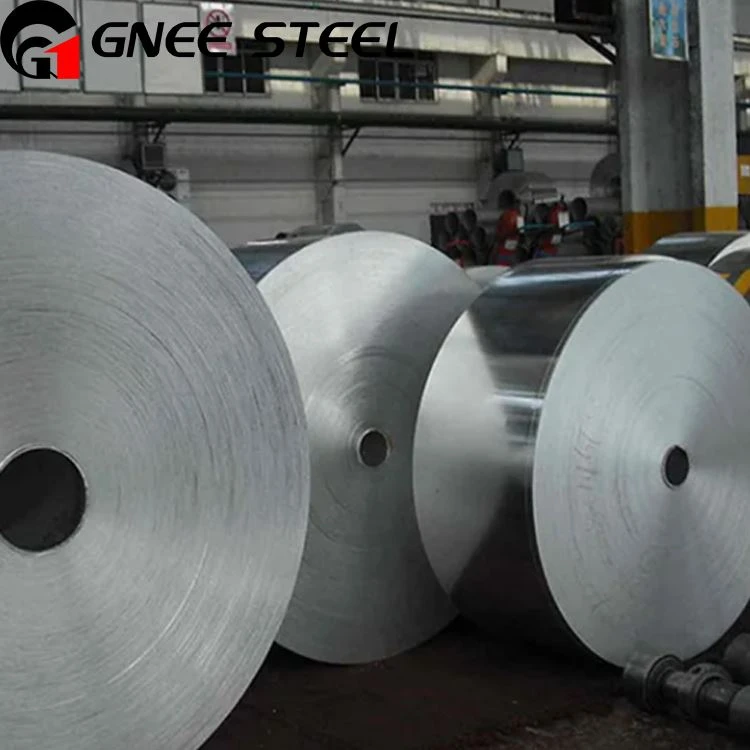

50WW310 50WW350 Crngo Steel Sheet
Description
Technical Parameters
Henan GNEE Electric Co., Ltd. is one of the leading manufacturers and suppliers of 50ww310 50ww350 crngo steel sheet in China, also supports customized service with low price. Welcome to buy discount 50ww310 50ww350 crngo steel sheet for sale here from our factory. If you have any enquiry about pricelist, please feel free to email us.
Non-grain-oriented cold-rolled strips Description
Non-grain-oriented cold-rolled strips are primarily used for motor cores and welding transformers, while grain-oriented cold-rolled strips serve as core materials for power transformers, pulse transformers and magnetic amplifiers. The thin cold-rolled grain-oriented silicon steel strips are manufactured by pickling, cold rolling and annealing processes starting from 0.30 or 0.35mm thick grain-oriented silicon steel strips. In contrast, cold-rolled non-oriented silicon steel sheets are produced by hot-rolling steel billets or continuous casting slabs into approximately 2.3mm thick coils before cold rolling. Cold-rolled electrical steel strips exhibit superior characteristics including smooth surface, uniform thickness, high stacking factor and excellent punchability, along with higher magnetic induction and lower core loss compared to hot-rolled electrical steel strips.
cold-rolled non-oriented silicon steel sheets video
50WW310 50WW350 Crngo Steel Sheet and other silicon steel sheet parameter
| Grade | CRGO: 23Q110, 27Q120, 27Q130, 30Q120, 23QG090, 23QG095, 23QG100, 27QG095, 27QG100 27QG120, 30QG105, 30QG120 23RK080, 23RK085, 23RK090, 23RK095 B18R065, B20P070, B23R075, B23R080, B23R085 B20P080, B23P085, B27P095, B27P100, B30P105, B30P120 |
| CRNGO: 65W530, 65W800, 35WW250, 35WW270, 35WW300, 35WW360, 35WW400, 35WW440 50WW270, 50WW290, 50WW310, 50WW350, 50WW400, 50WW470, 50WW600, 50WW700, 50WW800, 50WW1000, 50WW1300 |
|
| Nominal thickness | 0.18mm, 0.20mm, 0.23mm,0.27mm,0.30mm,0.35mm,0.5mm |
| Coil ID | 508mm |
| Weight | 2MT~8MT |
| Standard | EN 10106,IEC 60404-8-4,ASTM,DIN,GB,JIS |
| Form | Cold Rolled Strip |
Classification of Cold-Rolled Silicon Steel Strips
1. Non-Grain-Oriented Cold-Rolled Strips (Crngo Steel Sheet)
◦ Primary Applications: Motor cores, welding transformer cores, etc.
◦ Characteristics: Isotropic magnetic properties, ideal for rotating magnetic field applications.
2. Grain-Oriented Cold-Rolled Strips (Crgo Steel Sheet)
◦ Primary Applications: Power transformers, pulse transformers, magnetic amplifier cores.
◦ Specialized Process: Manufactured from 0.30mm or 0.35mm grain-oriented silicon steel strips through pickling → cold rolling → annealing.
◦ Advantages: Exceptionally high magnetic permeability along the rolling direction (B8 ≥ 1.88T).
